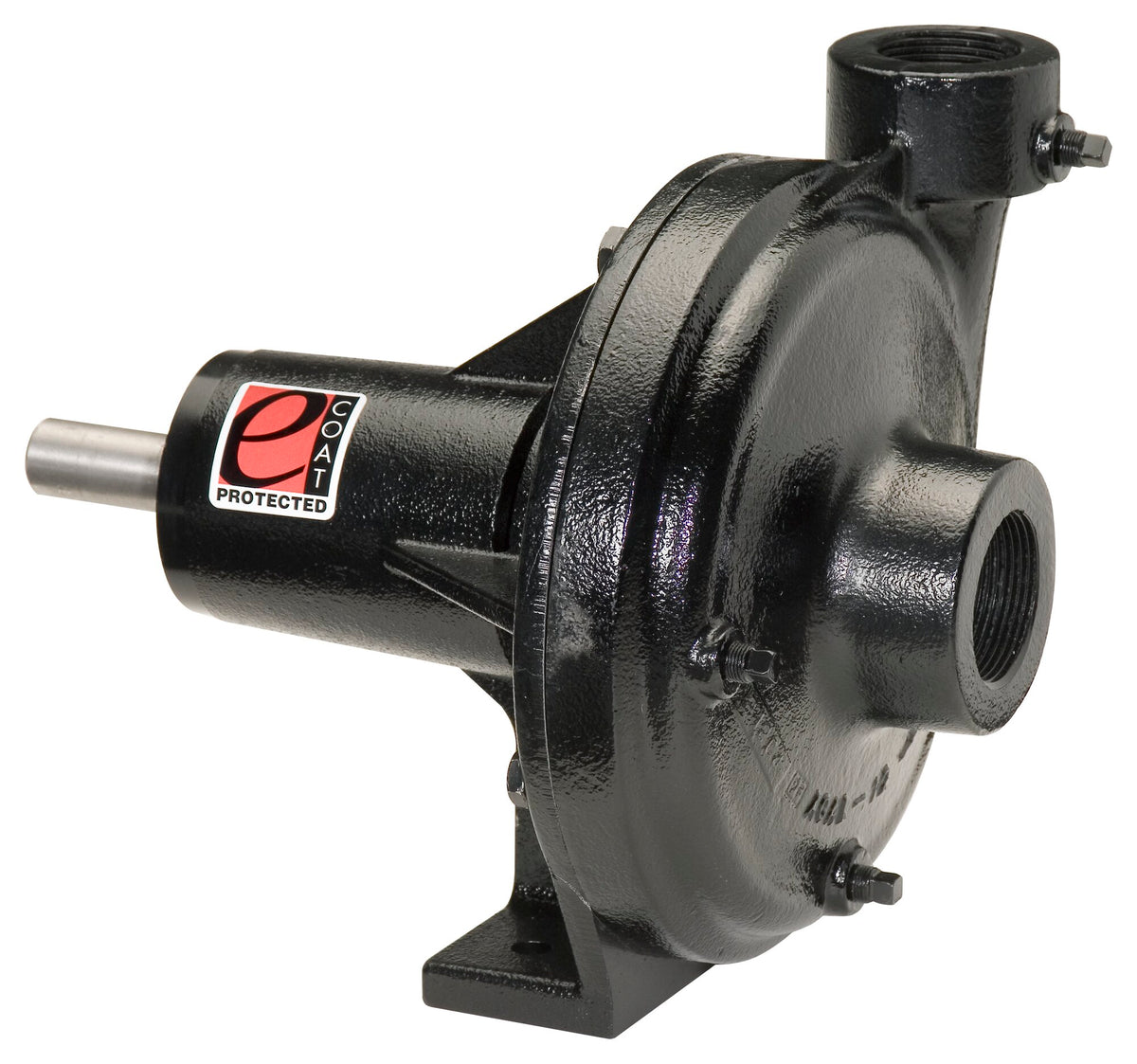

• Ace FMC-CW-650 centrifugal pump

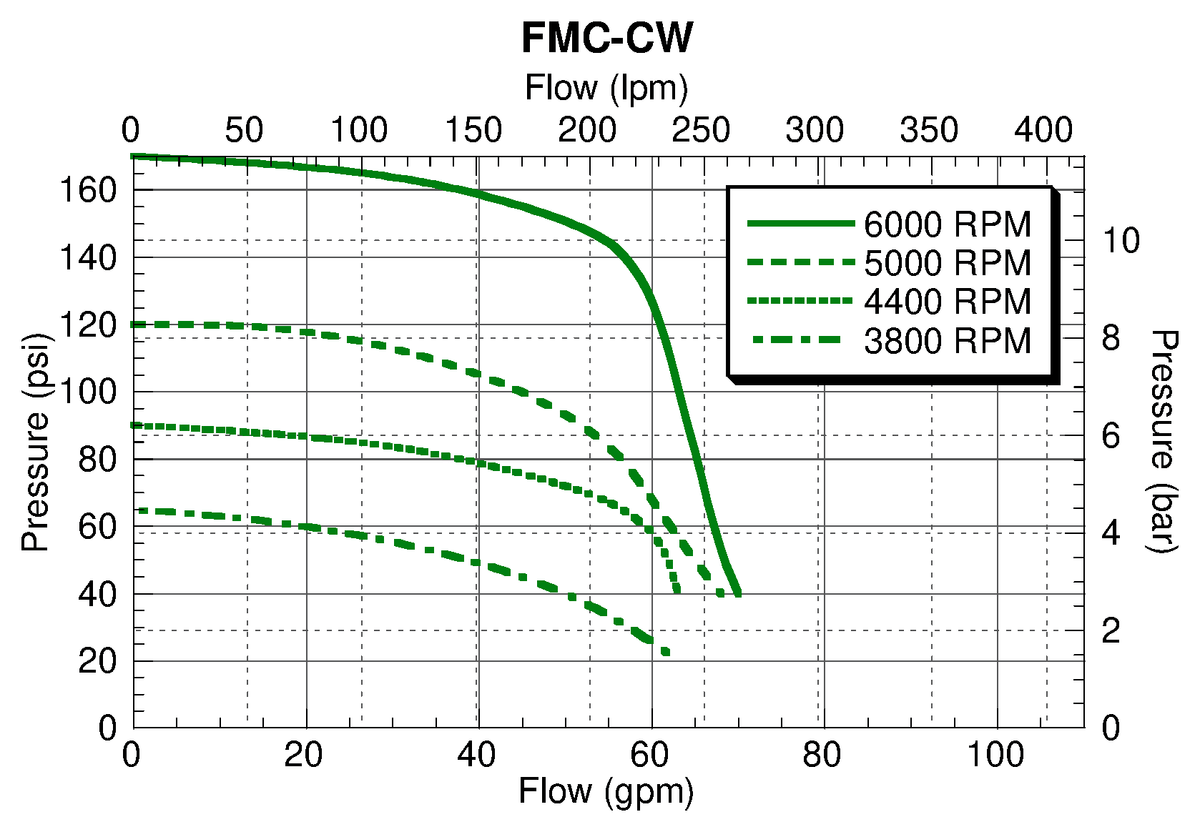

  • Ace FMC-CW performance curve — pressure (psi) vs. flow (gpm)

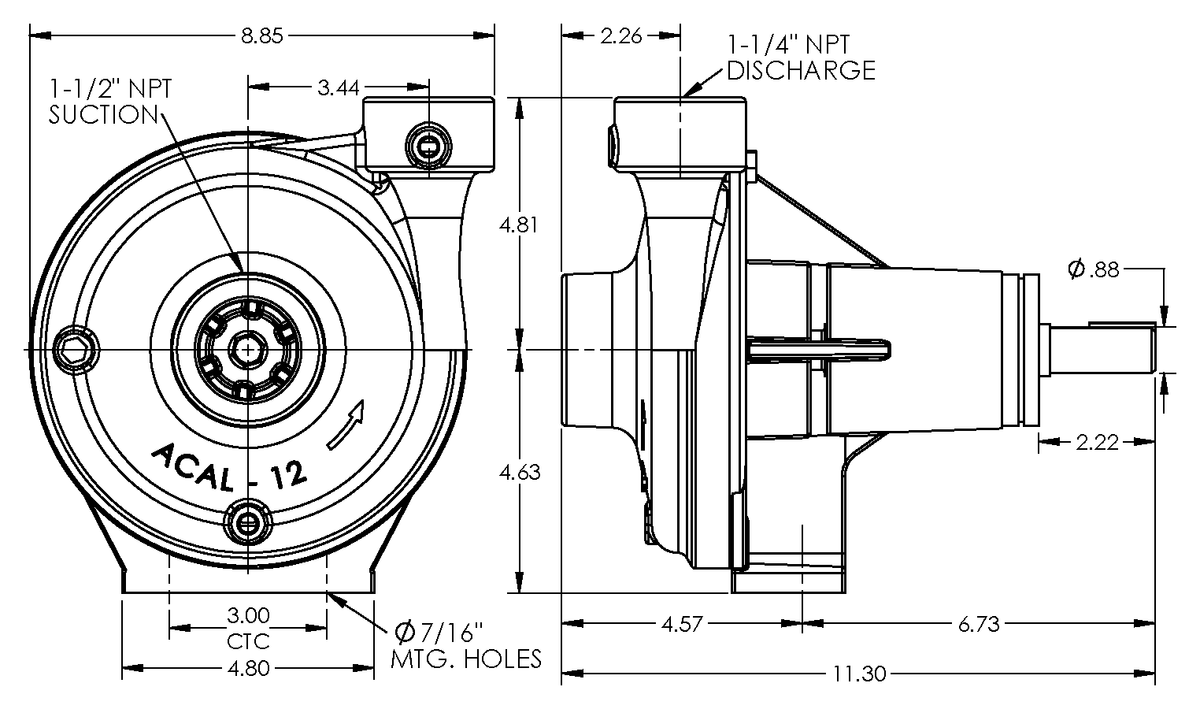

  • Ace FMC-CW-650 dimension drawing

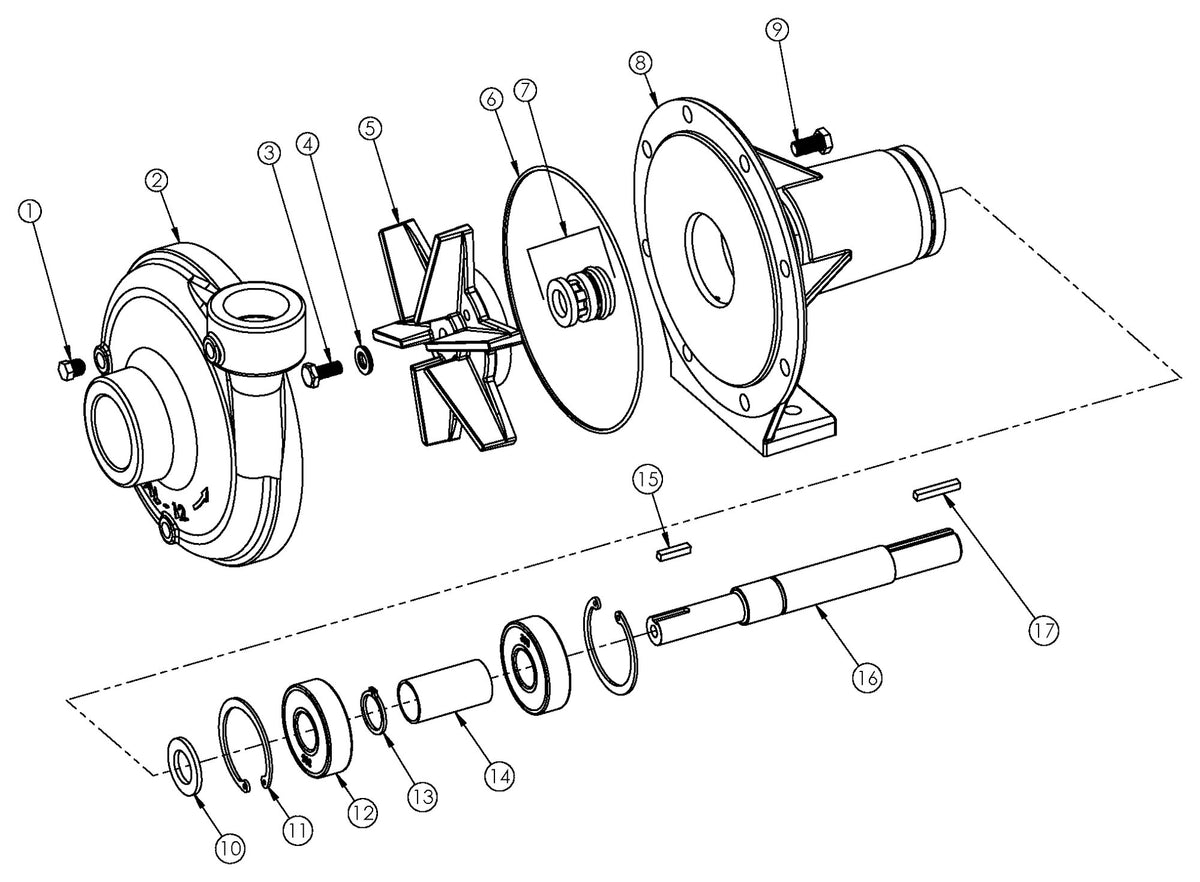

  • Ace FMC-CW-650 exploded parts view
1 4

Ace Pumps

FMC-CW-650 — Pump, 1.5"x1.25"x6.5", CW

FMC-CW-650 — Pump, 1.5"x1.25"x6.5", CW

$1,038.00 USD
$1,730.00 USD $1,038.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-CW-650 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-CW-650 — Pump, 1.5"x1.25"x6.5", CW” — fitment, alternatives, or what else you need

FMC-CW-650 belt driven centrifugal pump, 1.5" x 1.25" ports, clockwise (CW) rotation. Flow rate up to 140 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT 3
1 41120 Pipe plug, 1/8" NPT, stainless steel (optional) 3
2 ACAL-12-650 Volute, 1-1/2" x 1-1/4" CW rotation, cast iron, e-coated 1
3 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
4 30029 Washer, 3/8" stainless steel, sealing 1
5 BAC-26-650 Impeller, cast iron, e-coated 1
5 BAC-26-650-SS Impeller, stainless steel (optional) 1
6 BAC-4-150 "O" Ring, volute seal 1
7 BAC-7-650 Seal, carbon/ceramic/Viton 1
7 BAC-7SC-650 Seal, silicon carbide mechanical seal (optional) 1
7 BAC-7-650B Seal, carbon/ceramic/Buna mechanical seal (optional) 1
8 BAC-14-650-MAG Mounting frame, cast iron, e-coated 1
9 40950 Cap screw, 3/8" NC x 3/4" Hex Head 8
10 BAC-54-650 Slinger 1
11 41943 Snap ring, internal, BAC-14-650 2
12 40875 Bearing, BAC-6-650-SS driven shaft 2
13 ACAL-32 Snap ring, external, BAC-6-650-SS 1
14 BAC-32-650 Spacer for BAC-6-650-SS 1
15 41085 Key, .188 x .188 x .875 1
16 BAC-6-650-SS Shaft, 1" keyed driven, stainless steel 1
17 BAC-50 Key, 3/16" x 3/16" x 1-1/4" 1

Repair Kits

Kit No. Description
RK-FMC-650 Repair Kit Assembly

Parts per Ace Pump Corporation product sheet FMC-CW-650 (sheet title: High Performance Magnetic Clutch Driven Centrifugal Pump). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
