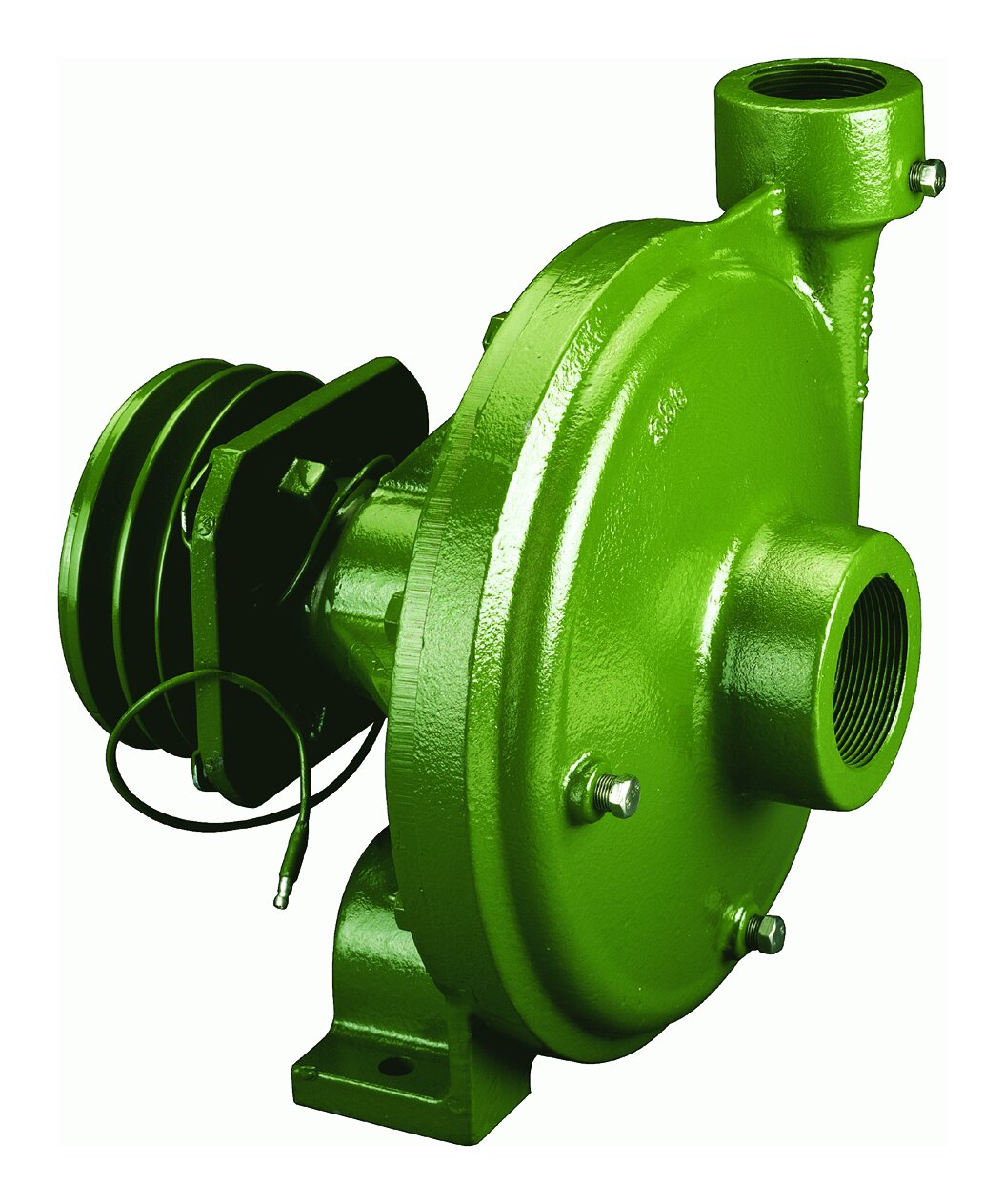

  • Ace FMC-CW-800-MAG-D centrifugal pump

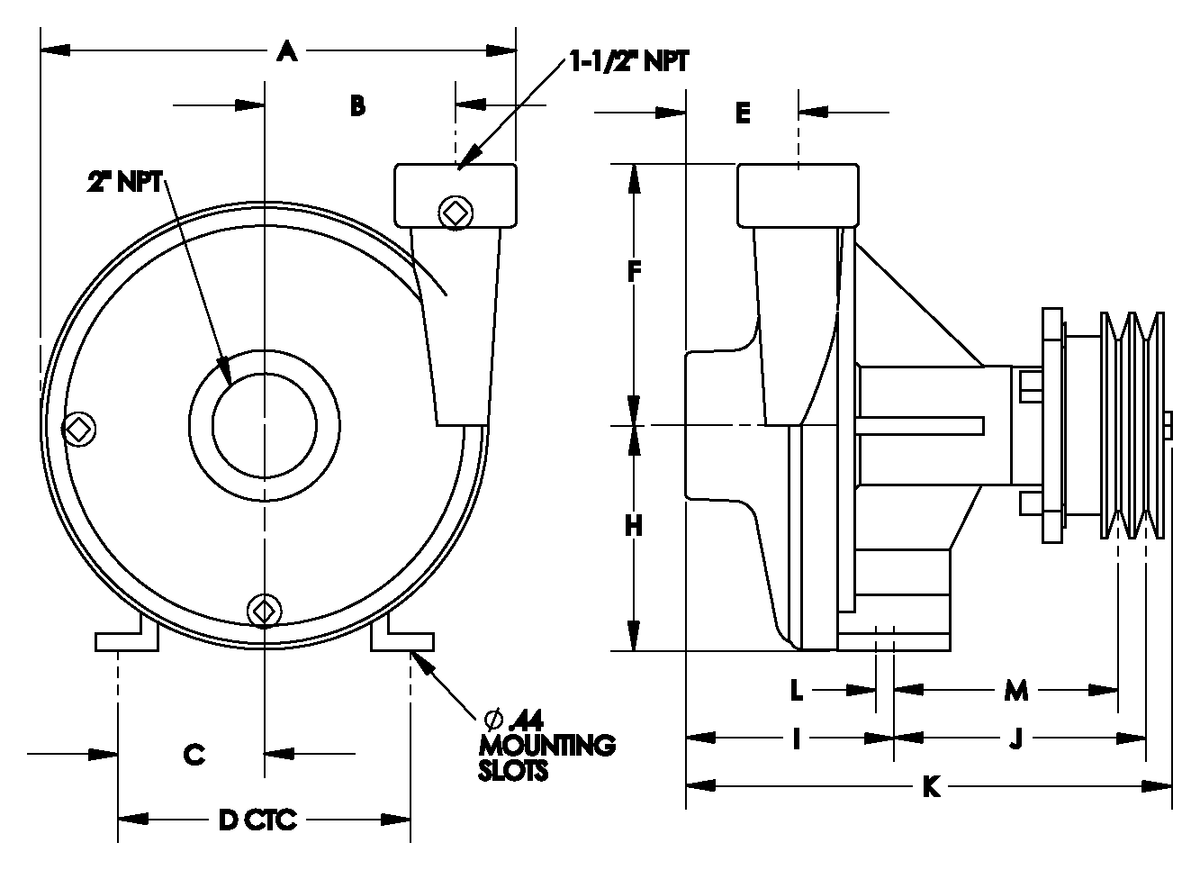

  • Ace FMC-CW-800-MAG-D dimension drawing

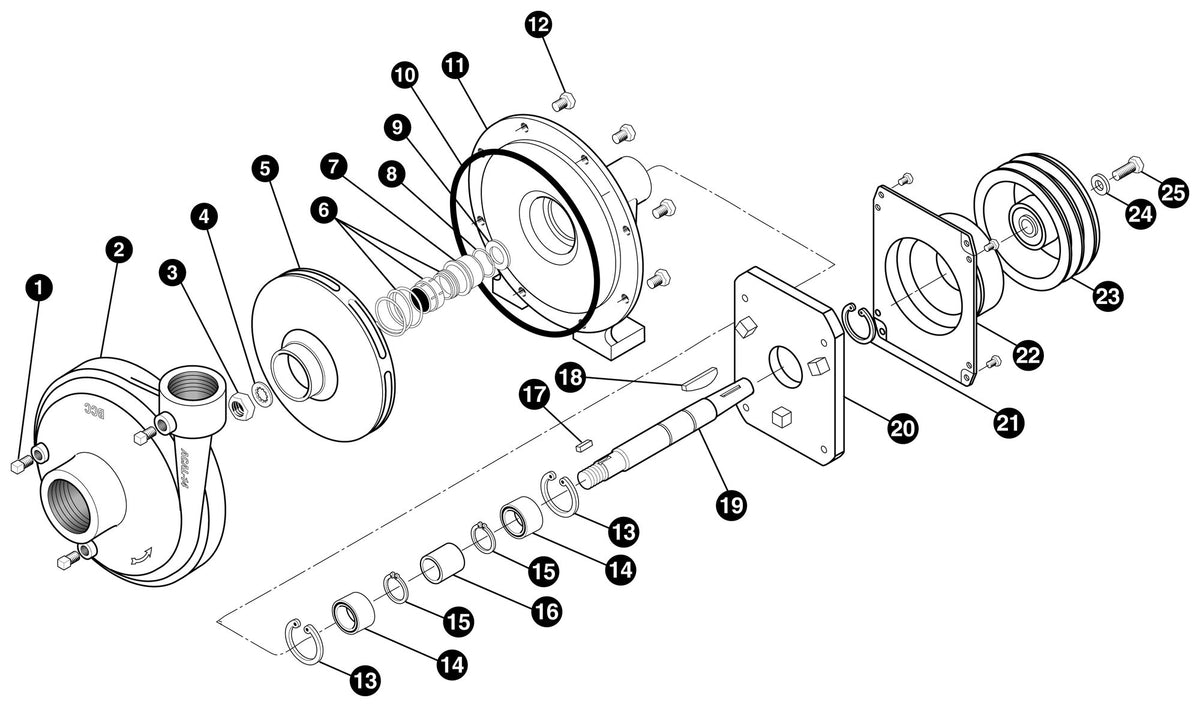

  • Ace FMC-CW-800-MAG-D exploded parts view
1 4

Ace Pumps

FMC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven

FMC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven

$2,427.00 USD
$4,045.00 USD $2,427.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMC-CW-800-MAG-D — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven” — fitment, alternatives, or what else you need

FMC-CW-800-MAG-D magnetic clutch (belt) driven centrifugal pump, 2" x 1.5" ports, magnetic clutch drive (engage/disengage via switch without stopping belt), clockwise (CW) rotation. Flow rate up to 180 GPM at 170 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT 3
1 41120 Pipe plug, 1/8" NPT, stainless steel (optional) 3
2 ACAL-14 Volute, 2" x 1-1/2" 1
3 45195 Nut, 9/16" - 18 lock nut, stainless steel 1
4 BACG-44-A Lockwasher, 9/16" ID, stainless steel 1
5 ACAL-26-75 Impeller with keyway, 8" diameter 1
6 TYPE 21-984 Seal, .984" Type 21 1
6 TYPE 21-984-SC Seal, .984" Type 21, silicon carbide (optional) 1
7 BACG-90M Seal cartridge for mechanical seal 1
8 73010 O-Ring for seal cartridge 1
9 GE-54 Slinger 1
10 ACAL-4 O-ring for ACAL-14 volute seal 1
11 ACAL-15-MAG-D Mounting frame, machined to accept MAG-D clutch 1
12 40950 Cap screw, 3/8" NC x 3/4" hex head 8
12 40930 Cap screw, 3/8" NC x 3/4" hex, stainless steel (optional) 8
13 BACG-33 Snap ring, internal 2
14 ACAL-37-DRB Bearing, double row 2
15 ACAL-32 Snap ring, external 2
16 ACAL-32-S-A Spacer for ACAL-6 Shaft 1
17 41079 Key for impeller, 3/16" x 3/16" x 1/2" 1
18 41088 Woodruff key, #505 1
19 ACAL-6-SS-D Shaft, stainless steel, for FMC-CW-800-MAG-D 1
20 41484 Adapter plate, MAG-D clutch 1
21 41483 Snap ring, external, for adapter plate 1
22 41496 Coil ring, MAG-D clutch 1
23 41482 Pulley assembly, MAG-D clutch 1
24 41494 Washer 1
25 GE-60 Cap screw 1
26 41472 Bullet, seal installation tool

Repair Kits

Kit No. Description
RK-FMC-CW-800 Repair Kit Assembly

Parts per Ace Pump Corporation product sheet FMC-CW-800-MAG-D (rev 3/11). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
