FMCB-200SS-HYD-300-LM — Pump, Hydraulic Drive, 2" x 1.5", 316 Stainless Steel
FMCB-200SS-HYD-300-LM — Pump, Hydraulic Drive, 2" x 1.5", 316 Stainless Steel
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMCB-200SS-HYD-300-LM hydraulic-driven centrifugal pump, 2" x 1.5" ports, stainless steel construction, Buna seal, sold less hydraulic motor. Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 41120 | Pipe plug, stainless steel | 4 |
| 2 | 7AC-14-CCW-SS | Volute, 2" x 1-1/2", stainless steel | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8", stainless steel, self-locking | 1 |
| 5 | BAC-26-200-SS | Impeller, with extended keyway, stainless steel | 1 |
| 5 | BAC-26-200-P | Impeller, with extended keyway, thermoplastic (optional) | 1 |
| 6 | BAC-4A | O-ring, body seal | 1 |
| 7 | BAC-7V | Seal, mechanical, Viton (includes 40160 O-ring) | 1 |
| 7 | BAC-7SC | Seal, mechanical, silicon carbide (includes 40160 O-ring) (optional) | 1 |
| 7A | 40160 | O-ring, shaft seal | 1 |
| 8 | BAC-14-LIN | Liner; mounting frame, stainless steel | 1 |
| 9 | BAC-14-HYD-300A-LIN | Mounting frame, -300 (A & N) series hydraulic motor (machined for liner) | 1 |
| 10 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel | 4 |
| 11 | 41330 | Cap screw, 5/16" N. C. x 3/4" hex head, motor to pump | 4 |
| 12 | BAC-54 | Slinger | 1 |
| 13 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 14 | BAC-37 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 15 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 16 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 17 | BAC-25 | Key, 1/8" x 1/8" x 13/16", extended keyway | 1 |
| 18 | BAC-6-HYD-200-SS | Shaft, extended keyway, tang, stainless steel | 1 |
This model is supplied less hydraulic motor; motor parts are not listed.
This model uses a Buna seal, which is not shown on Ace’s standard sheet — call us to confirm the seal before ordering.
Parts per Ace Pump Corporation product sheet FMC-200SS-HYD-304 (rev 06/13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads

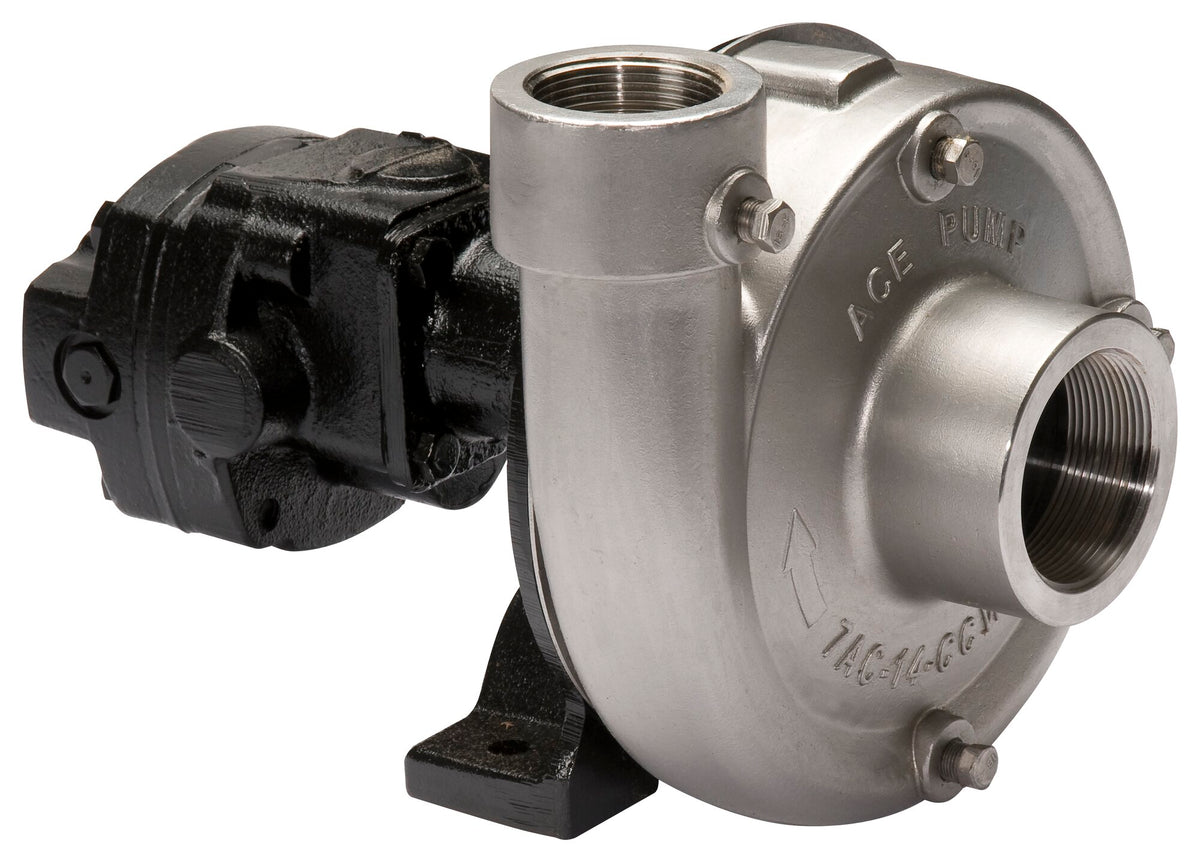

The photo shows the FMC-200SS-HYD-304. The FMCB-200SS-HYD-300-LM is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.
