FMCSC-125-HYD-206 — Pump, Hydraulic, 1.25"x1", Pro 5 Seal
FMCSC-125-HYD-206 — Pump, Hydraulic, 1.25"x1", Pro 5 Seal
Regular price
$1,106.40 USD
Regular price
$1,844.00 USD
Sale price
$1,106.40 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-125-HYD-206 — Pump, Hydraulic, 1.25"x1", Pro 5 Seal” — fitment, alternatives, or what else you need

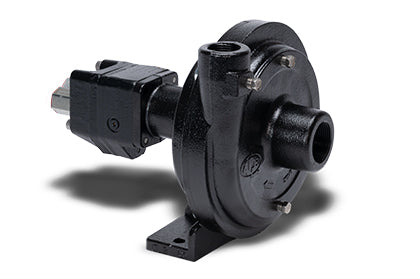

FMCSC-125-HYD-206 hydraulic-driven centrifugal pump, 1.25" x 1" ports, Pro5 mechanical seal (silicon carbide, severe duty). Flow rate up to 92 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.

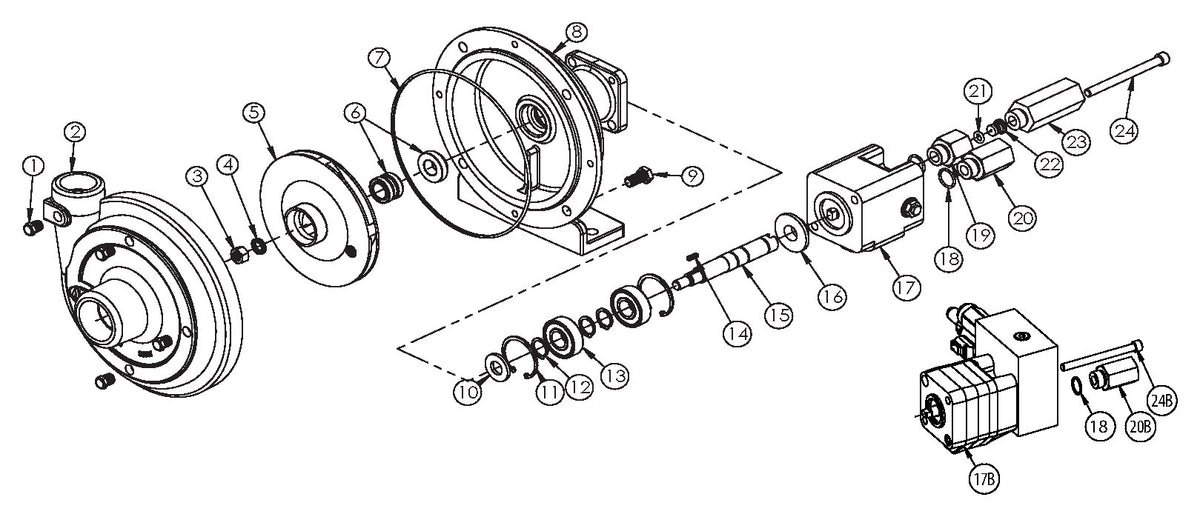

Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-125 | Volute, 1-1/4" NPT X 1"NPT | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 5 | BAC-26-125-P | Impeller, thermoplastic, keyway | 1 |
| 6 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical seal | 1 |
| 7 | BAC-4-150 | O-ring, body seal | 1 |
| 8 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8"NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8"NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 12 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, stainless steel | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 16 | S255 | Seal support spacer | 1 |
| 17 | BAC-75-HYD-206-PRO5 | Hydraulic motor, 7 GPM (includes 17-22, 24) | 1 |
| 18 | 41875 | O-ring, restrictor | 2 |
| 19 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 20 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 20B | BAC-78-10X8SAE | Reverse check assembly, #8 SAE x #10 SAE, w/ O-ring | 1 |
| 21 | 41448 | O-ring, restrictor | 1 |
| 22 | BAC-79-7 | Orifice insert, restrictor, w/ O-ring (206) | 1 |
| 23 | LS-206N | Flow limiting valve, #8 MSAE x 1/2" FNPT (206) (optional) | 1 |
| 24 | 41259 | Cap screw, 5/16"NC x 3-3/4" socket head, SS (for 206 motor) | 2 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair Kit Assembly |
| RK-BAC-75-HYD-L | Repair Kit Assembly, 200 Series Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCSC-125-HYD (Pro 5, 1-1/4" NPT x 1" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
