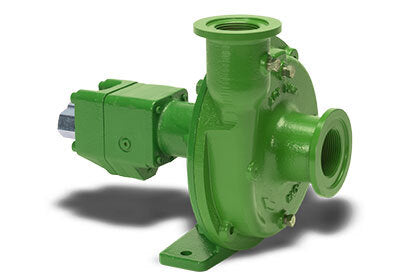

    The FMCSC-150F-HYD-206 is a Ace hydraulic motor driven centrifugal pump — cast iron volute with flanged and NPT ports, silicon carbide seal, rated at 120 psi maximum shutoff.

    Specifications

    Max shutoff pressure 120 psi
    Suction 220 flange & 1-1/2" NPT
    Discharge 200 flange & 1-1/4" NPT
    Hydraulic motor 7 GPM, 200 series
    Volute Cast iron
    Impeller Valox (standard); cast iron or polypropylene optional
    Seal Silicon carbide / Viton (severe duty)

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug 4
    1 41120 Pipe plug, stainless steel (optional) 4
    2 BAC-12-150-FLG Volute, cast iron, NPT & flanged 1
    3 BAC-23-A Nut, 3/8" NF, cad plated 1
    4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
    5 BAC-26-150-P Impeller, Valox, keyway 1
    5 BAC-26-150-CI Impeller, cast iron, keyway (optional) 1
    5 BAC-26-150-PI Impeller, polypropylene, keyway (optional) 1
    6 BAC-7SC Seal, silicon carbide/Viton (includes o-ring) 1
    6A 40160 O-ring, shaft seal 1
    7 BAC-4-150 O-ring, body seal 1
    8 BAC-14-150-HYD Mounting frame, cast iron 1
    9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
    9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
    10 BAC-54 Slinger 1
    11 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
    12 BAC-37 Ball bearing, sealed, BAC-6 shaft 2
    13 BAC-32 Snap ring, external, BAC-6 shaft 2
    14 BAC-32-S Spacer for BAC-6 shaft 1
    15 BACH-25 Key, 1/8" x 1/8" x 1/2" 1
    16 BAC-6-HYD-SS Shaft, 5/8" diameter, keyway and tang slot, stainless steel 1
    17 BAC-75-HYD-206 Hydraulic motor, 7 GPM (includes refs 18-25) 1
    18 S200 Seal support spacer for 200 Series hydraulic motor 1
    19 BAC-75-HYD-206N Hydraulic motor, 7 GPM (motor only, no external fittings) 1
    20 41255 Cap screw, 5/16" NC x 3-3/4" socket head (206N motor) 4
    21 41875 O-ring, #8 SAE fitting 2
    22 BAC-78-8SAE Reverse check valve, #8 SAE male x 1/2" NPT female 1
    23 BAC-80-8SAE Adapter, restrictor body, #8 SAE male x 1/2" NPT female 1
    24 41448 O-ring, orifice insert 1
    25 BAC-79-7 Orifice, restrictor insert, .109 (206N) 1
    26 LS-206N Flow limiting valve (206N), #8 SAE male x 1/2" NPT female 1

    Repair Kits

    Kit No. Description
    RK-FMCSC-150 Repair kit, FMC-150 series with silicon carbide shaft seal
    RK-BAC-75-HYD-L Repair kit, 200-L series hydraulic motor

    Parts and specifications per Ace Pump Corporation product sheet FMC-150F-HYD 03-13.
