FMCSC-150F-HYD-206-PWM-EC — Pump, Hydraulic, 1.5" x 1.25", PWM, Ec
FMCSC-150F-HYD-206-PWM-EC — Pump, Hydraulic, 1.5" x 1.25", PWM, Ec
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMCSC-150F-HYD-206-PWM-EC hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, silicon carbide mechanical seal (severe duty), e-coat corrosion-resistant finish, proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 145 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: e-coated finish. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-FLG | Volute, cast iron, NPT & flanged (150F models) | 1 |
| 3 | BAC-23-A | Nut, 3/8" NF, cad plated | 1 |
| 4 | BAC-24-HYD-SS | Washer, 3/8" star, stainless steel | 1 |
| 5 | BAC-26-150-P | Impeller, Valox, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway (optional) | 1 |
| 5 | BAC-26-150-PI | Impeller, polypropylene, keyway (optional) | 1 |
| 6 | BAC-7SC | Seal, silicon carbide/Viton (optional, includes O-ring) | 1 |
| 6A | 40160 | O-ring, shaft seal | 1 |
| 7 | BAC-4-150 | O-ring, body seal | 1 |
| 8 | BAC-14-150-HYD | Mounting frame, cast iron (150F models) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 12 | BAC-37 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 13 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 14 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 15 | BACH-25 | Key, 1/8" x 1/8" x 1/2" | 1 |
| 16 | BAC-6-HYD-SS | Shaft, 5/8" diameter, keyway and tang slot, stainless steel | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| BAC-75-HYD-206-PWM | Motor, 6.5 GPM Hydraulic, With PWM Valve | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-150 | Repair Kit Assembly, Silicon Carbide Seal |
| RK-BAC-75-HYD-L | Repair Kit Assembly, 200 Series Hydraulic Motor |
Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -206-PWM motor can differ, so call us to confirm those parts.
This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.
Parts per Ace Pump Corporation product sheet FMC-150F-HYD 03-13 (flanged 220 x 200 / 1-1/2" x 1-1/4" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads

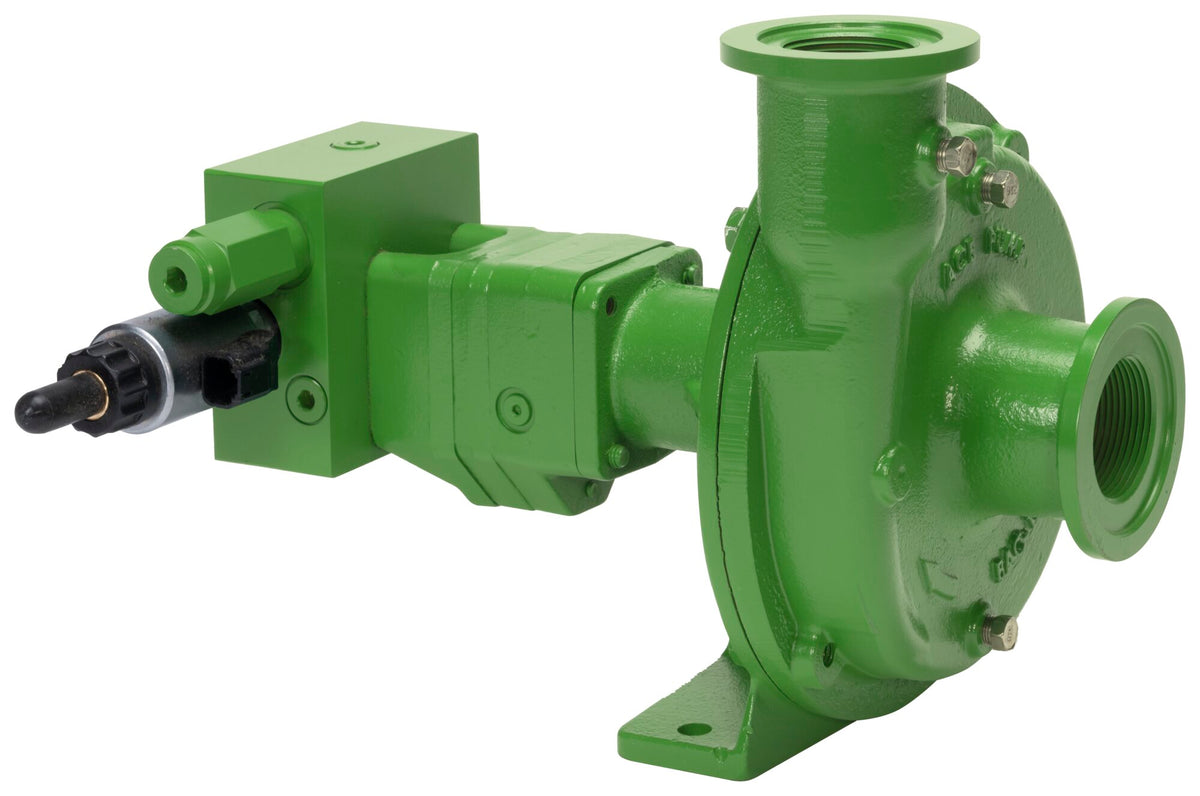

The photo shows the FMCSC-150F-HYD-206-PWM. The FMCSC-150F-HYD-206-PWM-EC is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

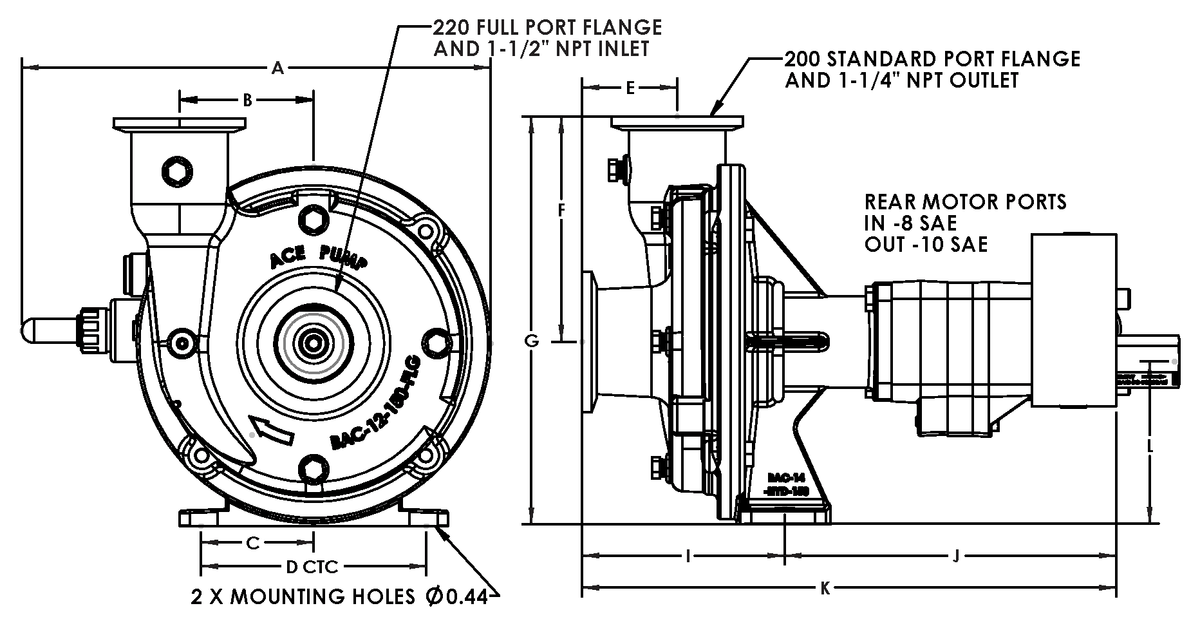

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting. Click any image to zoom.
- FMCSC-150F-HYD-206-PWM product sheet — parts list, performance and dimensions (PDF)
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- Hydraulic motor seal kit RK-BAC-75-HYD-L — installation instructions (PDF)
- Ace PWM technical file — PWM valve wiring and setup (PDF)
- FMC pump repair kit — installation instructions (PDF)
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
