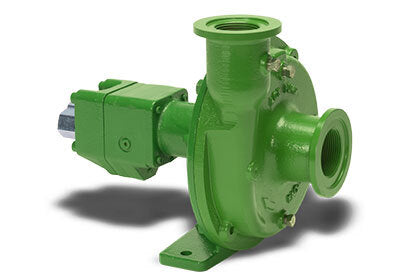

• Ace FMCSC-150F-HYD-304-PWM hydraulic driven centrifugal pump, 1-1/2" x 1-1/4" flanged

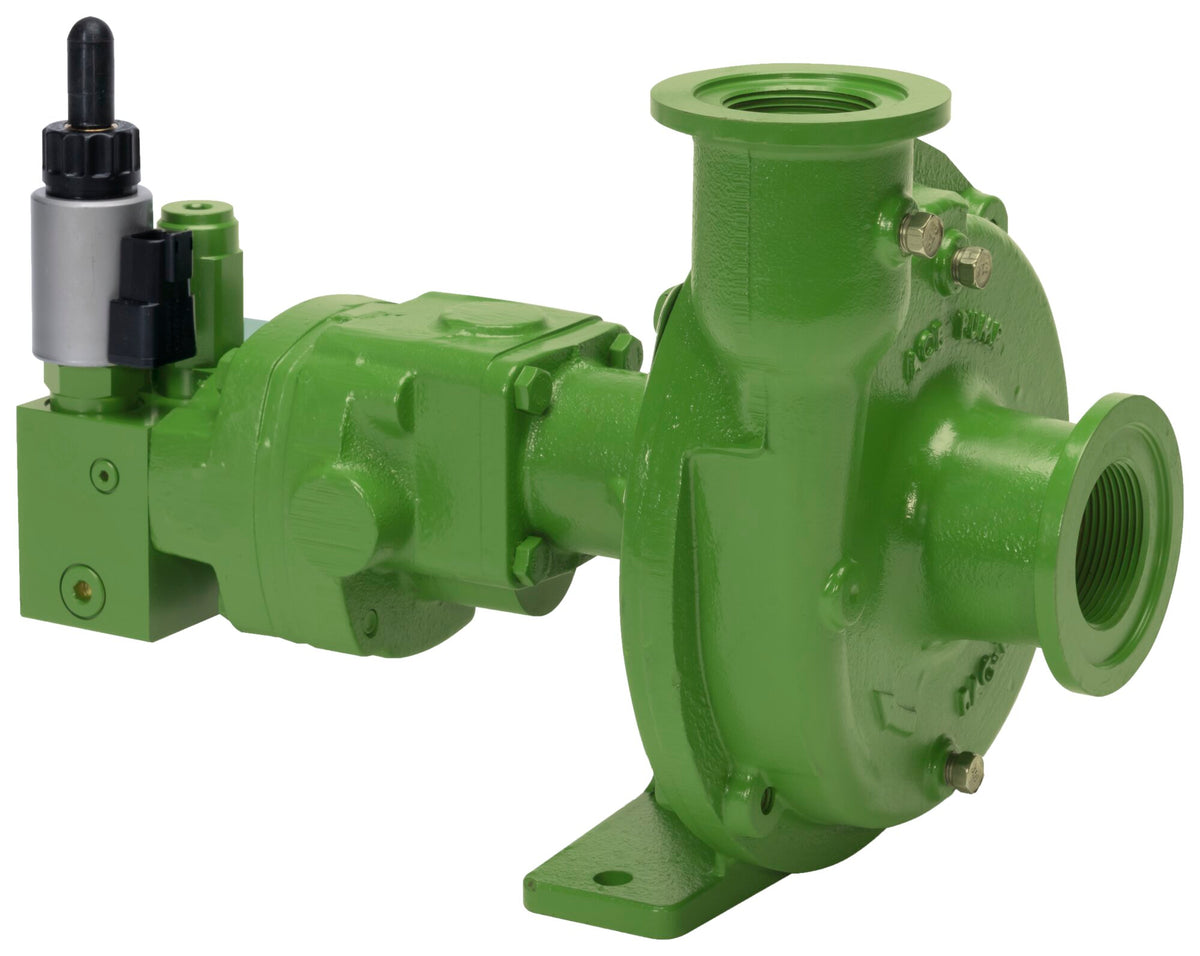

  • Ace FMCSC-150F-HYD-304-PWM centrifugal pump
  • Ace FMC-150F-HYD-304 performance curve — pressure (psi) vs. flow (gpm)

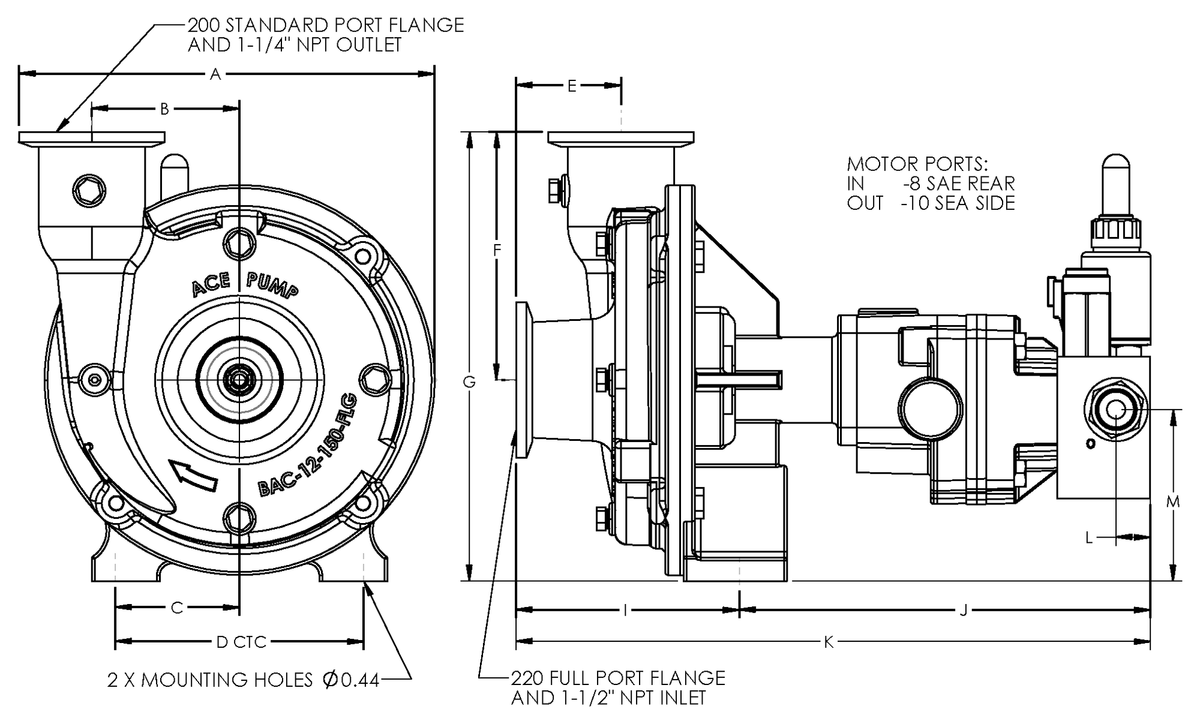

  • Ace FMC-150F-HYD-304-PWM dimension drawing
1 4

Ace Pumps

FMCSC-150F-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, SC

FMCSC-150F-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, SC

$2,139.60 USD
$3,566.00 USD $2,139.60 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-150F-HYD-304-PWM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-150F-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, SC” — fitment, alternatives, or what else you need

FMCSC-150F-HYD-304-PWM hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, silicon carbide mechanical seal (severe duty), proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 BAC-12-150-FLG Volute, cast iron, NPT & flanged (150F models) 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
5 BAC-26-150-P Impeller, Valox, keyway 1
5 BAC-26-150-CI Impeller, cast iron, keyway (optional) 1
5 BAC-26-150-PI Impeller, polypropylene, keyway (optional) 1
6 BAC-7SC Seal, silicon carbide/Viton (optional, includes O-ring) 1
6A 40160 O-ring, shaft seal 1
7 BAC-4-150 O-ring, body seal 1
8 BAC-14-150-HYD Mounting frame, cast iron (150F models) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
12 BAC-37 Ball bearing, sealed, BAC-6 shaft 2
13 BAC-32 Snap ring, external, BAC-6 shaft 2
14 BAC-32-S Spacer for BAC-6 shaft 1
15 BACH-25 Key, 1/8" x 1/8" x 1/2" 1
16 BAC-6-HYD-SS Shaft, 5/8" diameter, keyway and tang slot, stainless steel 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-304-PWM Motor, 11 GPM Hydraulic, With PWM Valve 1

Repair Kits

Kit No. Description
RK-FMCSC-150 Repair Kit Assembly, Silicon Carbide Seal
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -304-PWM motor can differ, so call us to confirm those parts.

This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.

Parts per Ace Pump Corporation product sheet FMC-150F-HYD 03-13 (flanged 220 x 200 / 1-1/2" x 1-1/4" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
