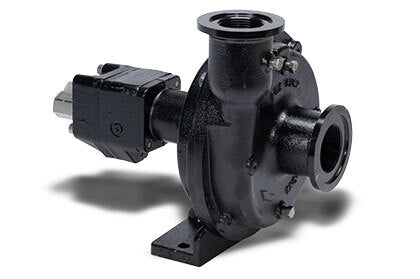

    The FMCSC-155F-HYD-206 is a Ace Pro5 hydraulic motor driven centrifugal pump — e-coated cast iron volute, silicon carbide seal, rated at 145 GPM and 120 psi shutoff.

    Specifications

    Max flow 145 GPM
    Max shutoff pressure 120 psi
    Suction 220 flange & 1-1/2" NPT
    Discharge 200 flange & 1-1/4" NPT
    Hydraulic motor 7 GPM, 200 series Pro5; 2700 psi max
    Seal Type 2106 silicon carbide (severe duty)
    Volute Cast iron, e-coated

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug 4
    1 41120 Pipe plug, stainless steel (optional) 4
    2 BAC-12-150-FLG-EC Volute, cast iron, e-coated 1
    3 BAC-23-B-SS Nut, 3/8" NF, stainless steel 1
    4 BAC-24-B-SS Washer, 3/8" stainless steel, vibration proof 1
    5 BAC-26-150-P Impeller, thermoplastic, keyway 1
    5 BAC-26-150-CI Impeller, cast iron, keyway (optional) 1
    5 BAC-26-150-SS Impeller, stainless steel, keyway (optional) 1
    6 BAC-4-150 O-ring, body seal 1
    7 BAC-7SC-205V Seal, type 2106 silicon carbide mechanical seal 1
    8 BAC-14-5-HYD Mounting frame, cast iron, e-coated 1
    9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
    9 40930 Cap screw, stainless steel (optional) 4
    10 BAC-54 Slinger 1
    11 BACH-32-HD Snap ring, external, shaft 3
    12 BACH-33 Snap ring, internal, mounting frame 2
    13 40880 Bearing 2
    14 BACH-25 Key, 1/8" x 1/8" x 7/16" stainless steel 1
    15 BAC-6-125-HYD-SS Shaft, .625 driven with tang slot, stainless steel 1
    16 S255 Seal support spacer (206N) 1
    17 BAC-75-HYD-206-PRO5 Hydraulic motor, 7 GPM (26.5 l/min) 1
    18 41875 O-ring, #8 SAE fitting 2
    19 BAC-80-8SAE Body, restrictor orifice, #8 SAE x 1/2" NPT 1
    20 BAC-78-8SAE Reverse check assembly, #8 SAE x 1/2" NPT 1
    22 BAC-79-7 Orifice insert, restrictor, with o-ring (206) 1
    23 LS-206N Flow limiting valve, #8 MSAE x 1/2" FNPT (206) (optional) 1
    24 41255 Cap screw, 5/16" NC x 3-3/4" socket head, stainless steel 2

    Repair Kits

    Kit No. Description
    RK-FMCSC-PRO5 Repair kit, includes body o-ring and seal
    RK-BAC-75-HYD-L Repair kit, 200 series hydraulic motor with high pressure lip seal

    Parts and specifications per Ace Pump Corporation product sheet FMCSC-155F-HYD.
