FMCSC-155F-HYD-206-CI — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal

FMCSC-155F-HYD-206-CI — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal

$1,269.00 USD
$2,115.00 USD $1,269.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-155F-HYD-206-CI — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-155F-HYD-206-CI — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal” — fitment, alternatives, or what else you need

FMCSC-155F-HYD-206-CI hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, cast iron impeller, Pro5 mechanical seal (silicon carbide, severe duty), flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.

Build options on this model: cast iron impeller. Where the list shows standard and optional versions of a part, order the one that matches these options.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 BAC-12-150-FLG-EC Volute, cast iron, NPT/flanged, e-coated 1
3 BAC-23-B-SS Nut, 3/8" NF, SS 1
4 BAC-24-B-SS Washer, 3/8" SS, vibration proof 1
5 BAC-26-150-P Impeller, thermoplastic, keyway 1
5 BAC-26-150-CI Impeller, cast iron, keyway 1
5 BAC-26-150-PI Impeller, thermoplastic, keyway 1
5 BAC-26-150-SS Impeller, stainless steel, keyway 1
6 BAC-4-150 O-ring, body seal 1
7 BAC-7SC-205V Seal, type 2106 silicon carbide mechanical 1
8 BAC-14-5-HYD Mounting frame, cast iron, e-coated 1
9 40950 Cap screw, 3/8"NC x 3/4" hex head 4
9 40930 Cap screw, 3/8"NC x 3/4", stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BACH-32-HD Snap ring, external, shaft 3
12 BACH-33 Snap ring, internal, mounting frame 2
13 40880 Bearing 2
14 BACH-25 Key, 1/8" x 1/8" x 7/16" SS 1
15 BAC-6-125-HYD-SS Shaft, .625 driven with tang slot, SS 1

Hydraulic Motor

Ref. Part No. Description Qty
16 S255 Seal support spacer (206N) 1
17 BAC-75-HYD-206-PRO5 Hydraulic motor, 7 GPM (includes 16) 1
18 41875 O-ring, #8 SAE fitting 2
19 BAC-80-8SAE Body, restrictor orifice, #8 SAE x 1/2"NPT 1
20 BAC-78-8SAE Reverse check assembly, #8 SAE x 1/2"NPT 1
20A BAC-78-10X8SAE Reverse check assembly, #8 SAE x #10 SAE 1
20B BAC-78-10X10SAE Reverse check assembly, #10 SAE x #10 SAE 1
21 41448 O-ring, restrictor 1
22 BAC-79-7 Orifice insert, restrictor (206) (Do not use with 206-PWM) 1
23 LS-206N Flow limiting valve, #8 MSAE x 1/2" FNPT (206) (optional) 1
24 41255 Cap screw, 5/16"NC x 3-3/4" socket head, SS (206 motor) 2
25 41445 O-ring, #10 SAE 1

Repair Kits

Kit No. Description
RK-FMCSC-PRO5 Repair Kit Assembly
RK-BAC-75-HYD-L Repair Kit Assembly, 200 Series Hydraulic Motor

Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

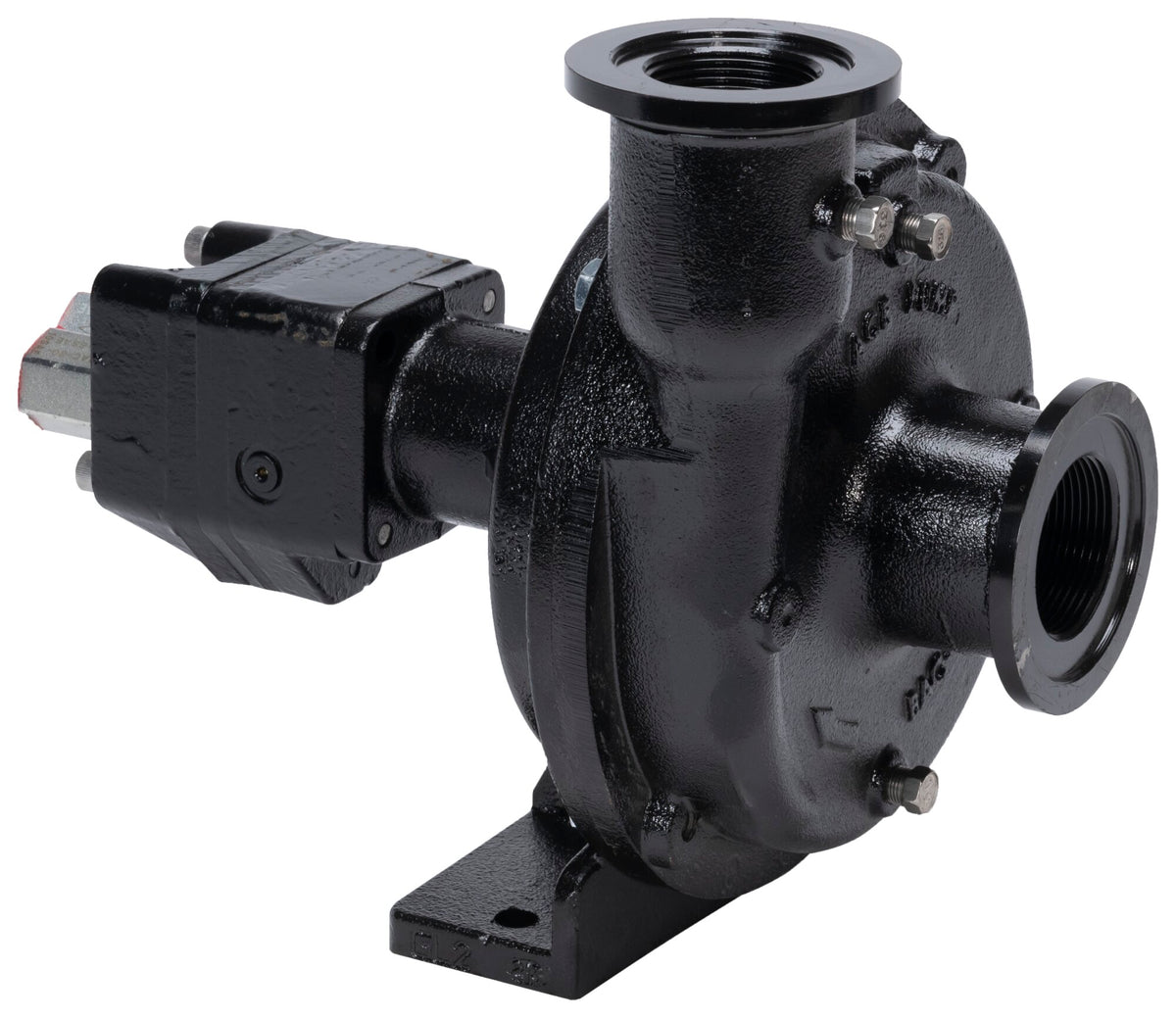

The photo shows the FMCSC-155F-HYD-206. The FMCSC-155F-HYD-206-CI is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

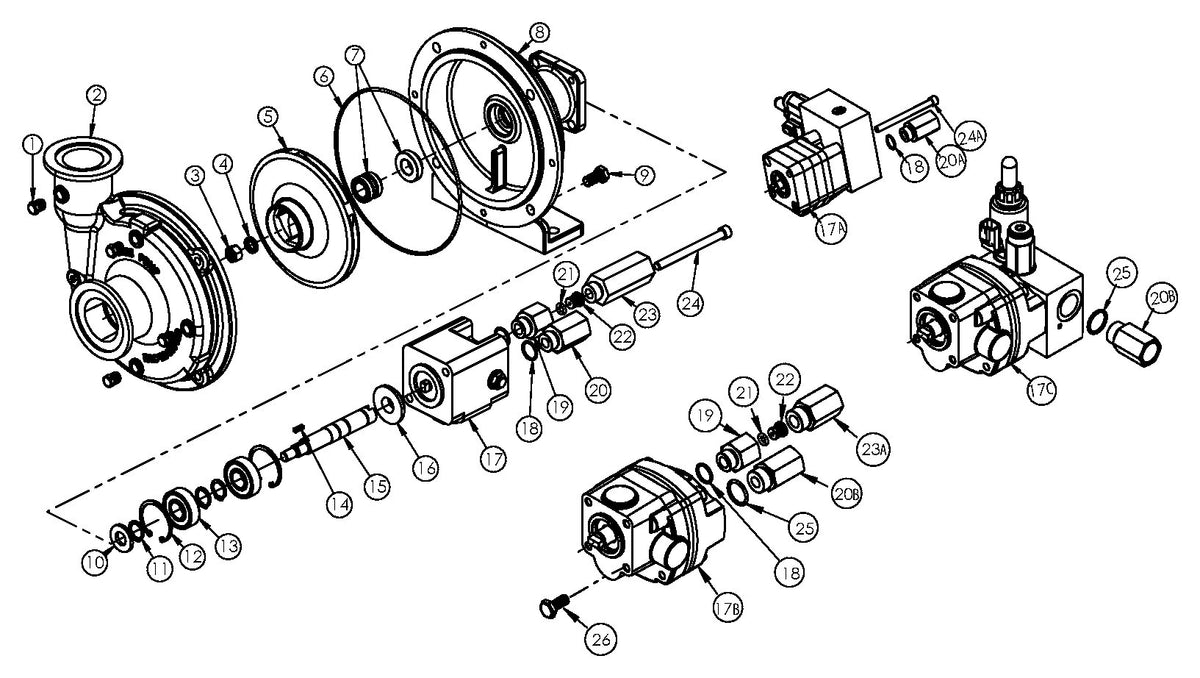

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
