FMCSC-155F-HYD-304 — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal
FMCSC-155F-HYD-304 — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal
Regular price
$1,287.60 USD
Regular price
$2,146.00 USD
Sale price
$1,287.60 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-155F-HYD-304 — Pump, Hydraulic, 1.5"x1.25", Pro 5 Seal” — fitment, alternatives, or what else you need

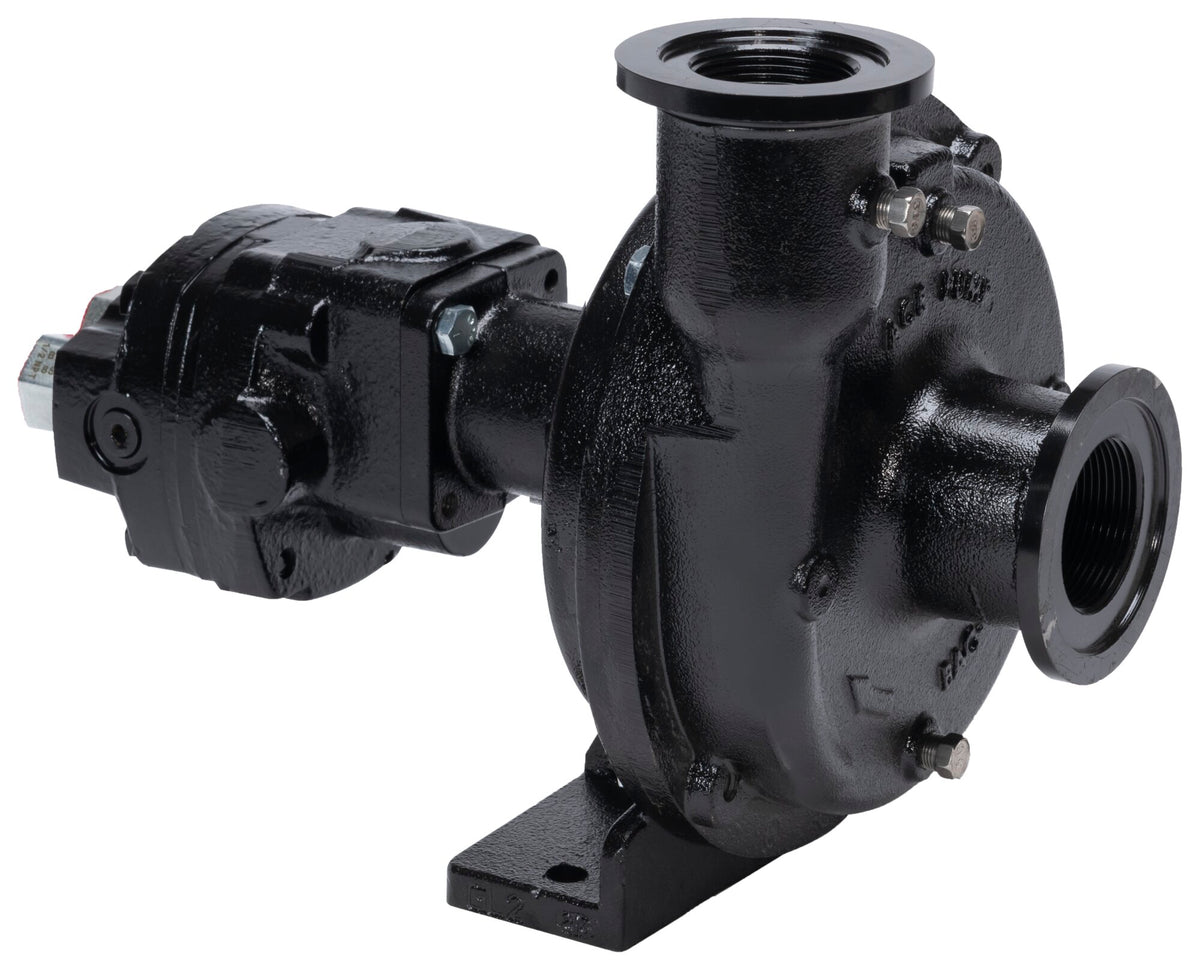

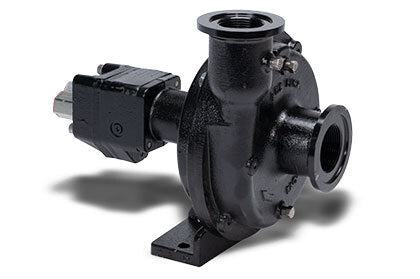

FMCSC-155F-HYD-304 hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, Pro5 mechanical seal (silicon carbide, severe duty), flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-FLG-EC | Volute, cast iron, NPT/flanged, e-coated | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 5 | BAC-26-150-P | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway | 1 |
| 5 | BAC-26-150-PI | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-SS | Impeller, stainless steel, keyway | 1 |
| 6 | BAC-4-150 | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical | 1 |
| 8 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8"NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8"NC x 3/4", stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 12 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, SS | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 16 | S300 | Seal support spacer (304N) | 1 |
| 17B | BAC-75-HYD-304 | Hydraulic motor, 9 GPM (includes 16, 17B, 18, 19, 20B, 21, 22) | 1 |
| 18 | 41875 | O-ring, #8 SAE fitting | 2 |
| 19 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2"NPT | 1 |
| 20 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2"NPT | 1 |
| 20A | BAC-78-10X8SAE | Reverse check assembly, #8 SAE x #10 SAE | 1 |
| 20B | BAC-78-10X10SAE | Reverse check assembly, #10 SAE x #10 SAE | 1 |
| 21 | 41448 | O-ring, restrictor | 1 |
| 22 | BAC-79-8 | Orifice insert, restrictor (304) (Do not use with 304-PWM) | 1 |
| 23A | LS-304N | Flow limiting valve, #8 MSAE x 1/2" FNPT (304) (optional) | 1 |
| 25 | 41445 | O-ring, #10 SAE | 1 |
| 26 | 41130 | Mounting bolt for 300 series motor | 2 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair Kit Assembly |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
