FMCSC-155FS-HYD-206-CD — Pump, Hydraulic, 1-1/2 x 1-1/4 Flanged, Stainless Steel, SC
FMCSC-155FS-HYD-206-CD — Pump, Hydraulic, 1-1/2 x 1-1/4 Flanged, Stainless Steel, SC
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
FMCSC-155FS-HYD-206-CD hydraulic-driven centrifugal pump, 1-1/2" x 1-1/4" ports, silicon carbide mechanical seal (severe duty), flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: case-drain hydraulic motor. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-150-FLG-EC | Volute, cast iron, NPT/flanged, e-coated | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 5 | BAC-26-150-P | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-CI | Impeller, cast iron, keyway | 1 |
| 5 | BAC-26-150-PI | Impeller, thermoplastic, keyway | 1 |
| 5 | BAC-26-150-SS | Impeller, stainless steel, keyway | 1 |
| 6 | BAC-4-150 | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, type 2106 silicon carbide mechanical | 1 |
| 8 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8"NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8"NC x 3/4", stainless steel (optional) | 4 |
| 10 | BAC-54 | Slinger | 1 |
| 11 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 12 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 13 | 40880 | Bearing | 2 |
| 14 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 15 | BAC-6-125-HYD-SS | Shaft, .625 driven with tang slot, SS | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 16 | S255 | Seal support spacer (206N) | 1 |
| 17 | BAC-75-HYD-206-PRO5 | Hydraulic motor, 7 GPM (includes 16) | 1 |
| 18 | 41875 | O-ring, #8 SAE fitting | 2 |
| 19 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2"NPT | 1 |
| 20 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2"NPT | 1 |
| 20A | BAC-78-10X8SAE | Reverse check assembly, #8 SAE x #10 SAE | 1 |
| 20B | BAC-78-10X10SAE | Reverse check assembly, #10 SAE x #10 SAE | 1 |
| 21 | 41448 | O-ring, restrictor | 1 |
| 22 | BAC-79-7 | Orifice insert, restrictor (206) (Do not use with 206-PWM) | 1 |
| 23 | LS-206N | Flow limiting valve, #8 MSAE x 1/2" FNPT (206) (optional) | 1 |
| 24 | 41255 | Cap screw, 5/16"NC x 3-3/4" socket head, SS (206 motor) | 2 |
| 25 | 41445 | O-ring, #10 SAE | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-PRO5 | Repair Kit Assembly |
| RK-BAC-75-HYD-L | Repair Kit Assembly, 200 Series Hydraulic Motor |
This model has a case-drain hydraulic motor, which is not shown on Ace’s sheet — call us to confirm the motor part number.
Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads

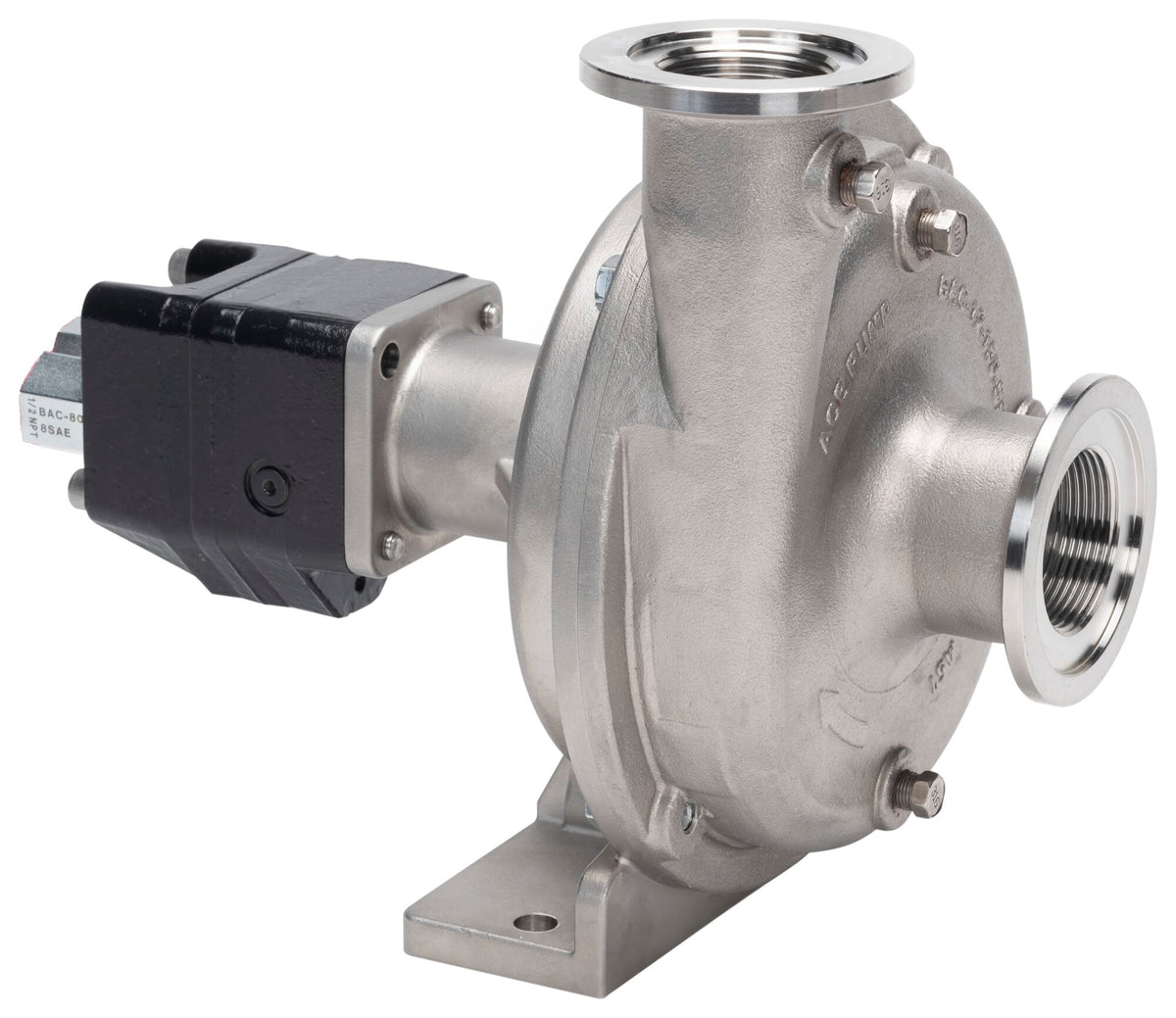

The photo shows the FMCSC-155FS-HYD-206. The FMCSC-155FS-HYD-206-CD is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

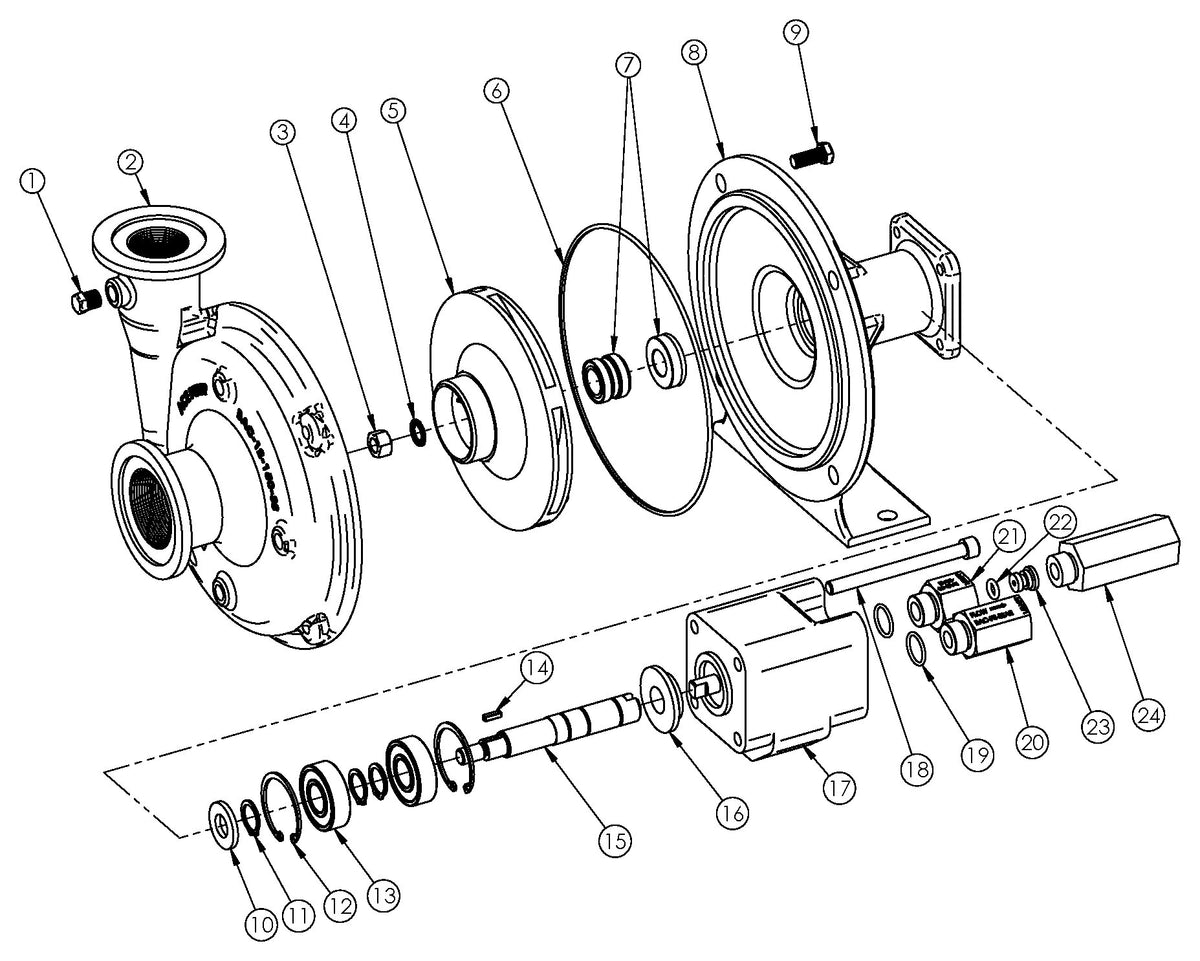

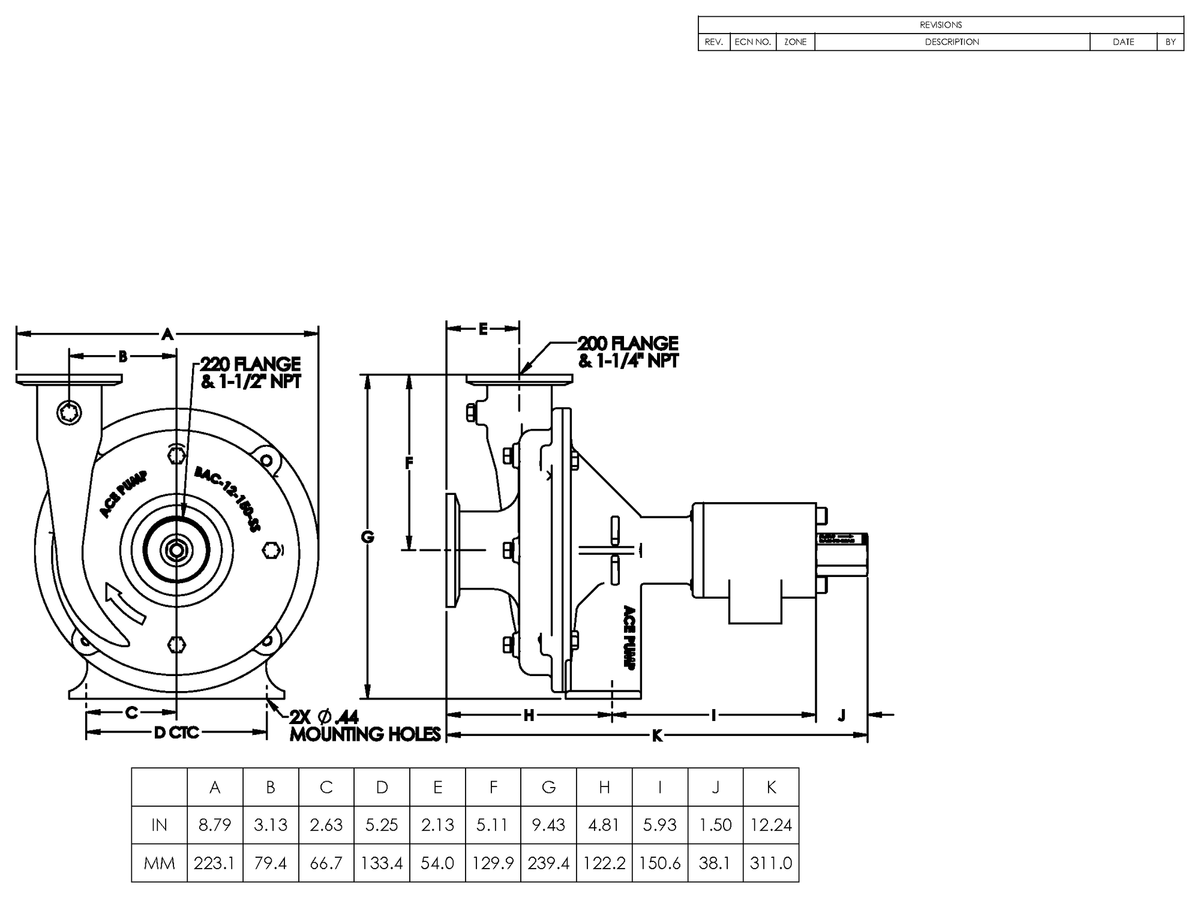

The image gallery includes a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.
- FMCSC-155FS-HYD product sheet — parts list, performance and dimensions (PDF)
- Hydraulic motor driven pump instruction manual — installation, operation and warranty (PDF)
- Hydraulic motor seal kit RK-BAC-75-HYD-L — installation instructions (PDF)
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
