    FMCSC-155FS-HYD-304 — Pump, Hydraulic, 1-1/2 x 1-1/4 Flanged, Stainless Steel, SC

    FMCSC-155FS-HYD-304 — Pump, Hydraulic, 1-1/2 x 1-1/4 Flanged, Stainless Steel, SC

    $2,097.00 USD
    $3,495.00 USD $2,097.00 USD
    Sale
    Shipping calculated at checkout.
    Title

    Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.

    Questions on fitment? Need a different size or quantity?

    Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
    (509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
    Request a quote or ask about this part by email

    Part: APFMCSC-155FS-HYD-304 — we'll include the part number and link with your message.

    🧑‍🔧
    Ask Dusty Parts Expert
    Get an instant answer on “FMCSC-155FS-HYD-304 — Pump, Hydraulic, 1-1/2 x 1-1/4 Flanged, Stainless Steel, SC” — fitment, alternatives, or what else you need

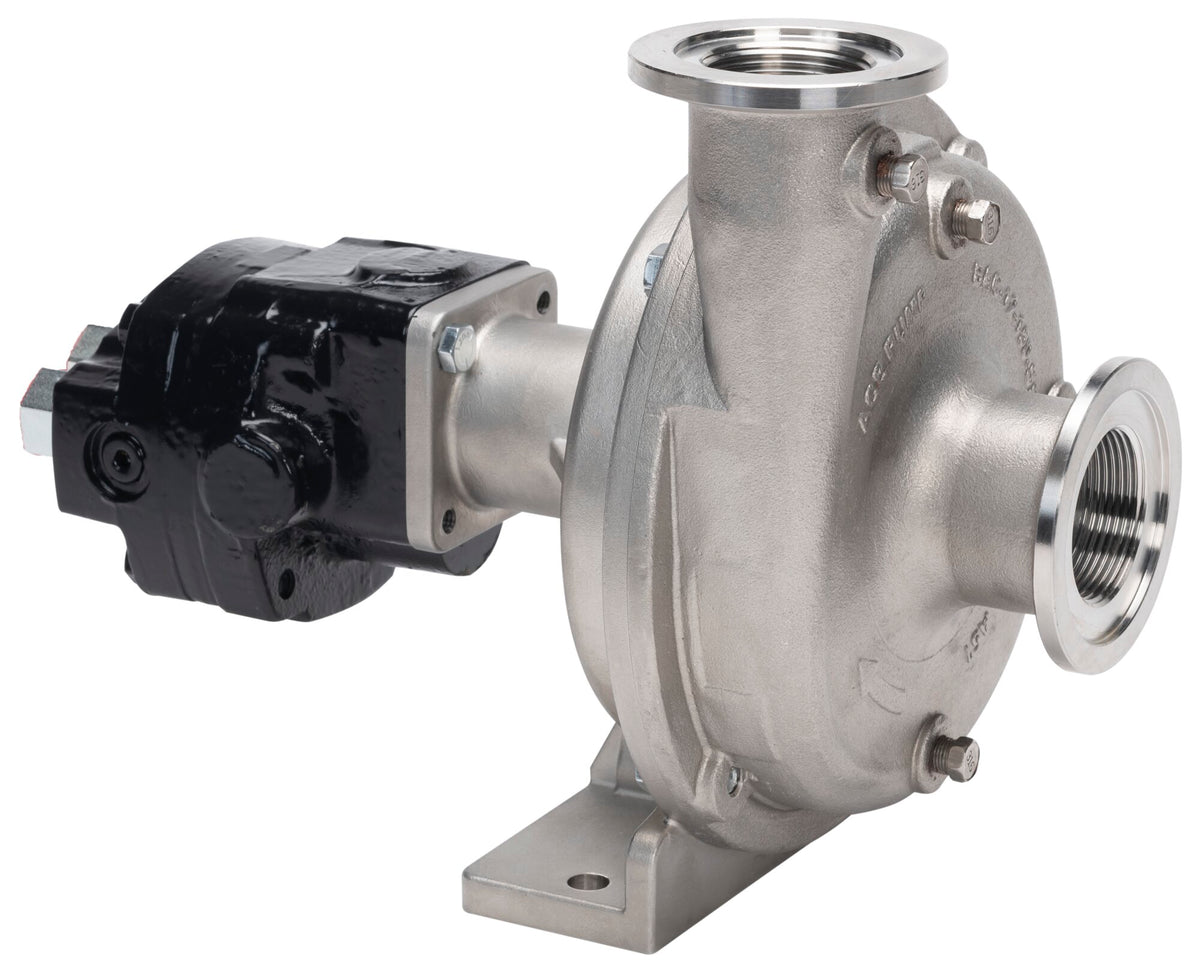

    FMCSC-155FS-HYD-304 hydraulic-driven centrifugal pump, 1-1/2" x 1-1/4" ports, silicon carbide mechanical seal (severe duty), flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug 4
    1 41120 Pipe plug, stainless steel (optional) 4
    2 BAC-12-150-FLG-EC Volute, cast iron, NPT/flanged, e-coated 1
    3 BAC-23-B-SS Nut, 3/8" NF, SS 1
    4 BAC-24-B-SS Washer, 3/8" SS, vibration proof 1
    5 BAC-26-150-P Impeller, thermoplastic, keyway 1
    5 BAC-26-150-CI Impeller, cast iron, keyway 1
    5 BAC-26-150-PI Impeller, thermoplastic, keyway 1
    5 BAC-26-150-SS Impeller, stainless steel, keyway 1
    6 BAC-4-150 O-ring, body seal 1
    7 BAC-7SC-205V Seal, type 2106 silicon carbide mechanical 1
    8 BAC-14-5-HYD Mounting frame, cast iron, e-coated 1
    9 40950 Cap screw, 3/8"NC x 3/4" hex head 4
    9 40930 Cap screw, 3/8"NC x 3/4", stainless steel (optional) 4
    10 BAC-54 Slinger 1
    11 BACH-32-HD Snap ring, external, shaft 3
    12 BACH-33 Snap ring, internal, mounting frame 2
    13 40880 Bearing 2
    14 BACH-25 Key, 1/8" x 1/8" x 7/16" SS 1
    15 BAC-6-125-HYD-SS Shaft, .625 driven with tang slot, SS 1

    Hydraulic Motor

    Ref. Part No. Description Qty
    16 S300 Seal support spacer (304N) 1
    17B BAC-75-HYD-304 Hydraulic motor, 9 GPM (includes 16, 17B, 18, 19, 20B, 21, 22) 1
    18 41875 O-ring, #8 SAE fitting 2
    19 BAC-80-8SAE Body, restrictor orifice, #8 SAE x 1/2"NPT 1
    20 BAC-78-8SAE Reverse check assembly, #8 SAE x 1/2"NPT 1
    20A BAC-78-10X8SAE Reverse check assembly, #8 SAE x #10 SAE 1
    20B BAC-78-10X10SAE Reverse check assembly, #10 SAE x #10 SAE 1
    21 41448 O-ring, restrictor 1
    22 BAC-79-8 Orifice insert, restrictor (304) (Do not use with 304-PWM) 1
    23A LS-304N Flow limiting valve, #8 MSAE x 1/2" FNPT (304) (optional) 1
    25 41445 O-ring, #10 SAE 1
    26 41130 Mounting bolt for 300 series motor 2

    Repair Kits

    Kit No. Description
    RK-FMCSC-PRO5 Repair Kit Assembly
    RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

    Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
