FMCSC-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC

FMCSC-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC

$2,943.00 USD
$4,905.00 USD $2,943.00 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-155FS-HYD-304-PWM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5" x 1.25" Flange, PWM, Stainless Steel, SC” — fitment, alternatives, or what else you need

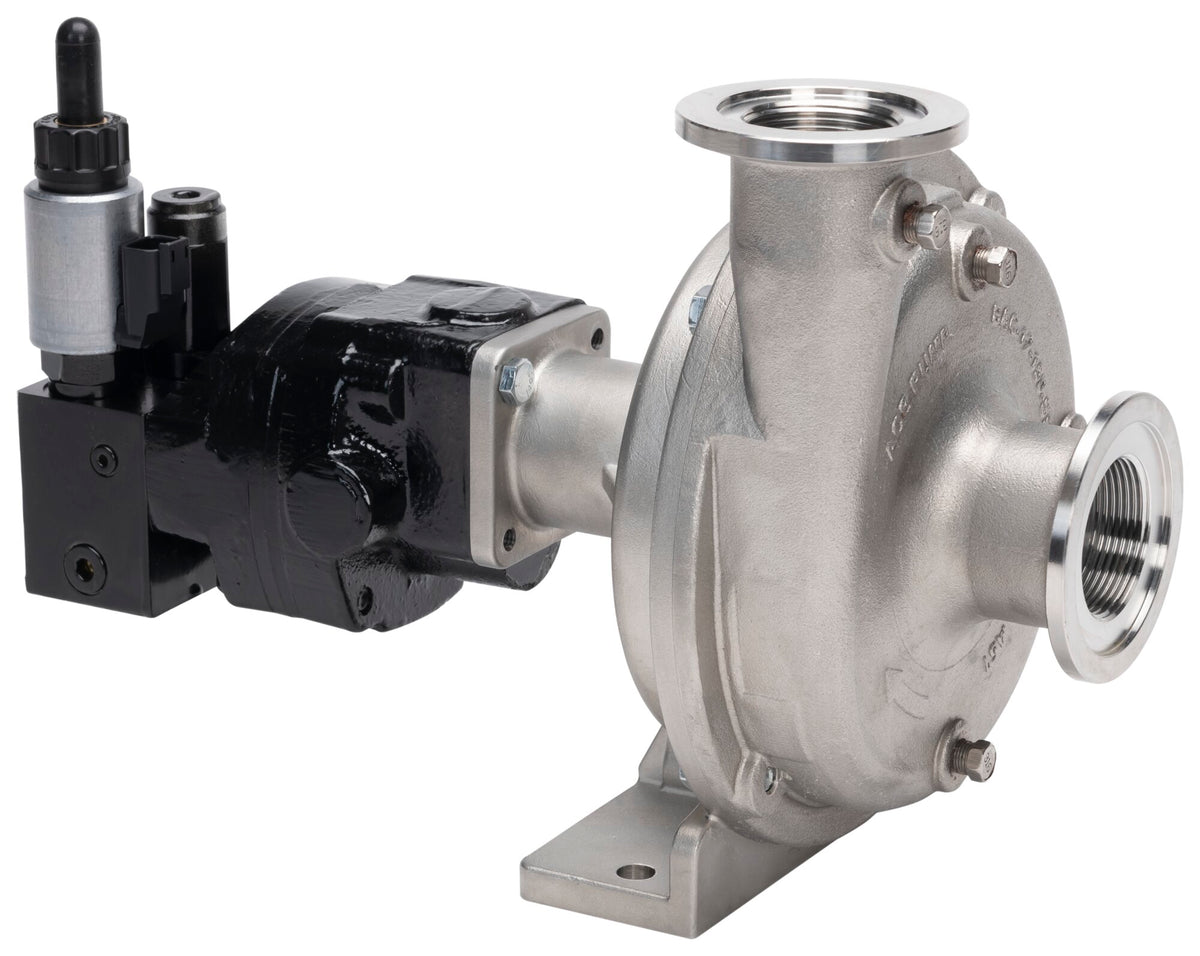

FMCSC-155FS-HYD-304-PWM hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, silicon carbide mechanical seal (severe duty), proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 BAC-12-150-FLG-EC Volute, cast iron, NPT/flanged, e-coated 1
3 BAC-23-B-SS Nut, 3/8" NF, SS 1
4 BAC-24-B-SS Washer, 3/8" SS, vibration proof 1
5 BAC-26-150-P Impeller, thermoplastic, keyway 1
5 BAC-26-150-CI Impeller, cast iron, keyway 1
5 BAC-26-150-PI Impeller, thermoplastic, keyway 1
5 BAC-26-150-SS Impeller, stainless steel, keyway 1
6 BAC-4-150 O-ring, body seal 1
7 BAC-7SC-205V Seal, type 2106 silicon carbide mechanical 1
8 BAC-14-5-HYD Mounting frame, cast iron, e-coated 1
9 40950 Cap screw, 3/8"NC x 3/4" hex head 4
9 40930 Cap screw, 3/8"NC x 3/4", stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BACH-32-HD Snap ring, external, shaft 3
12 BACH-33 Snap ring, internal, mounting frame 2
13 40880 Bearing 2
14 BACH-25 Key, 1/8" x 1/8" x 7/16" SS 1
15 BAC-6-125-HYD-SS Shaft, .625 driven with tang slot, SS 1

Hydraulic Motor

Ref. Part No. Description Qty
16 S300 Seal support spacer (304N) 1
17C BAC-75-HYD-304-PWM Hydraulic motor, integrated PWM valve, 9 GPM (includes 16, 17C, 20B, 25, 26) 1
20B BAC-78-10X10SAE Reverse check assembly, #10 SAE x #10 SAE 1
25 41445 O-ring, #10 SAE 1
26 41130 Mounting bolt for 300 series motor 2

Repair Kits

Kit No. Description
RK-FMCSC-PRO5 Repair Kit Assembly
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Parts per Ace Pump Corporation product sheet FMCSC-155F-HYD (Pro 5). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

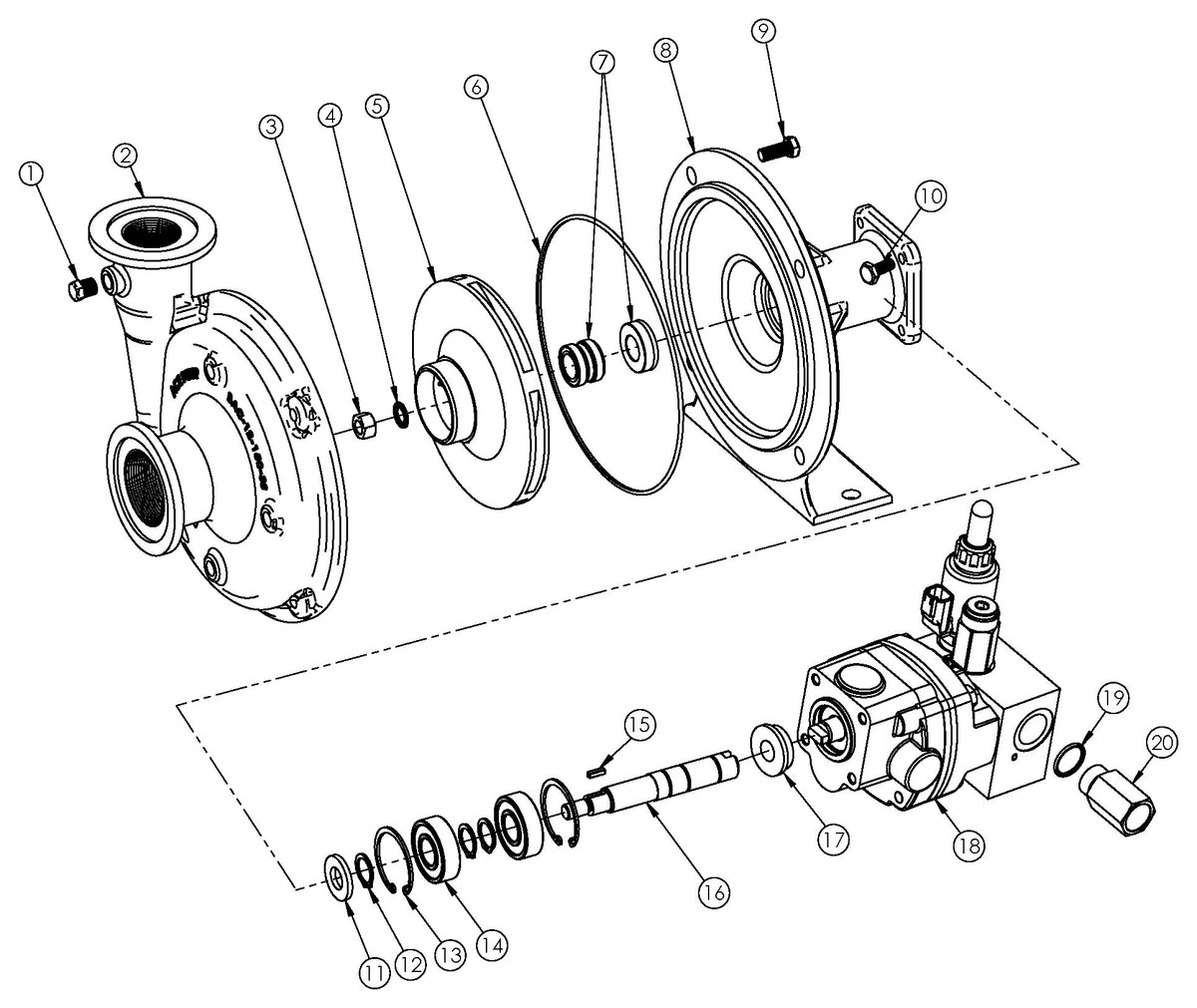

The image gallery includes an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
