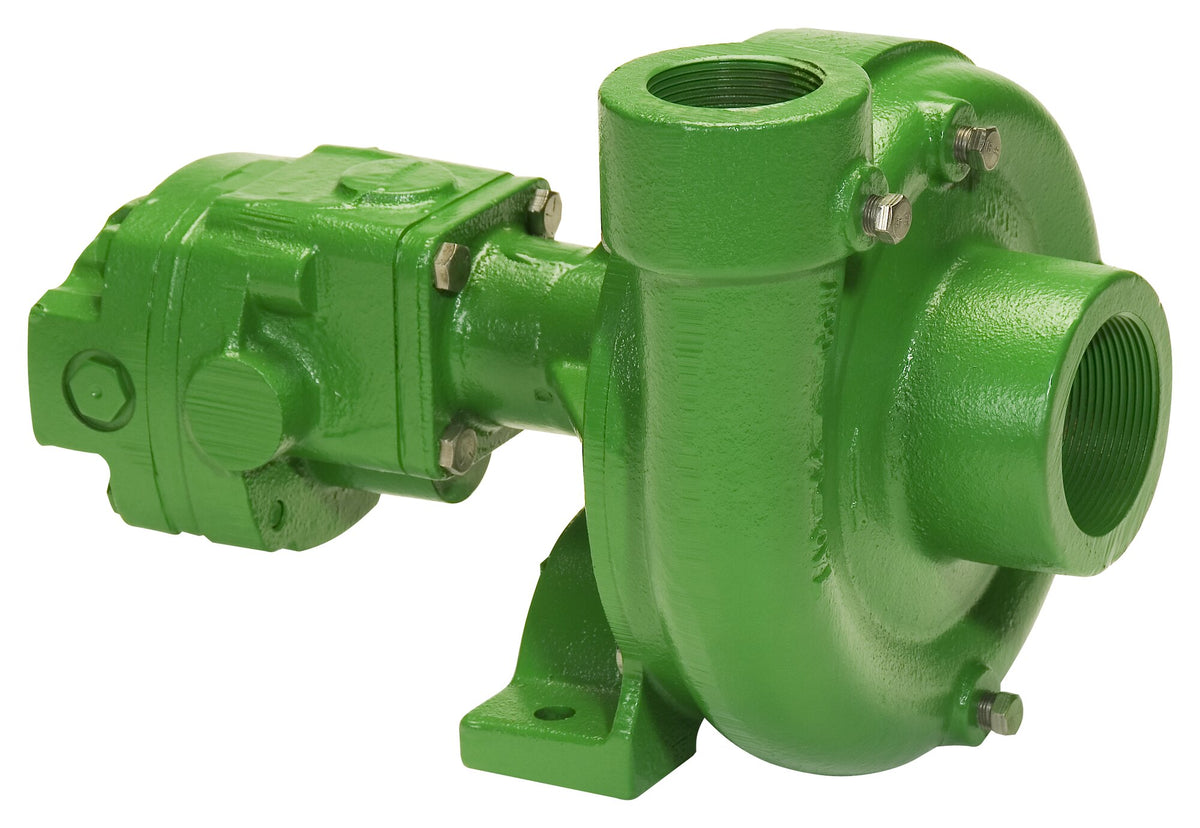

• Ace FMC-200-HYD-304 centrifugal pump

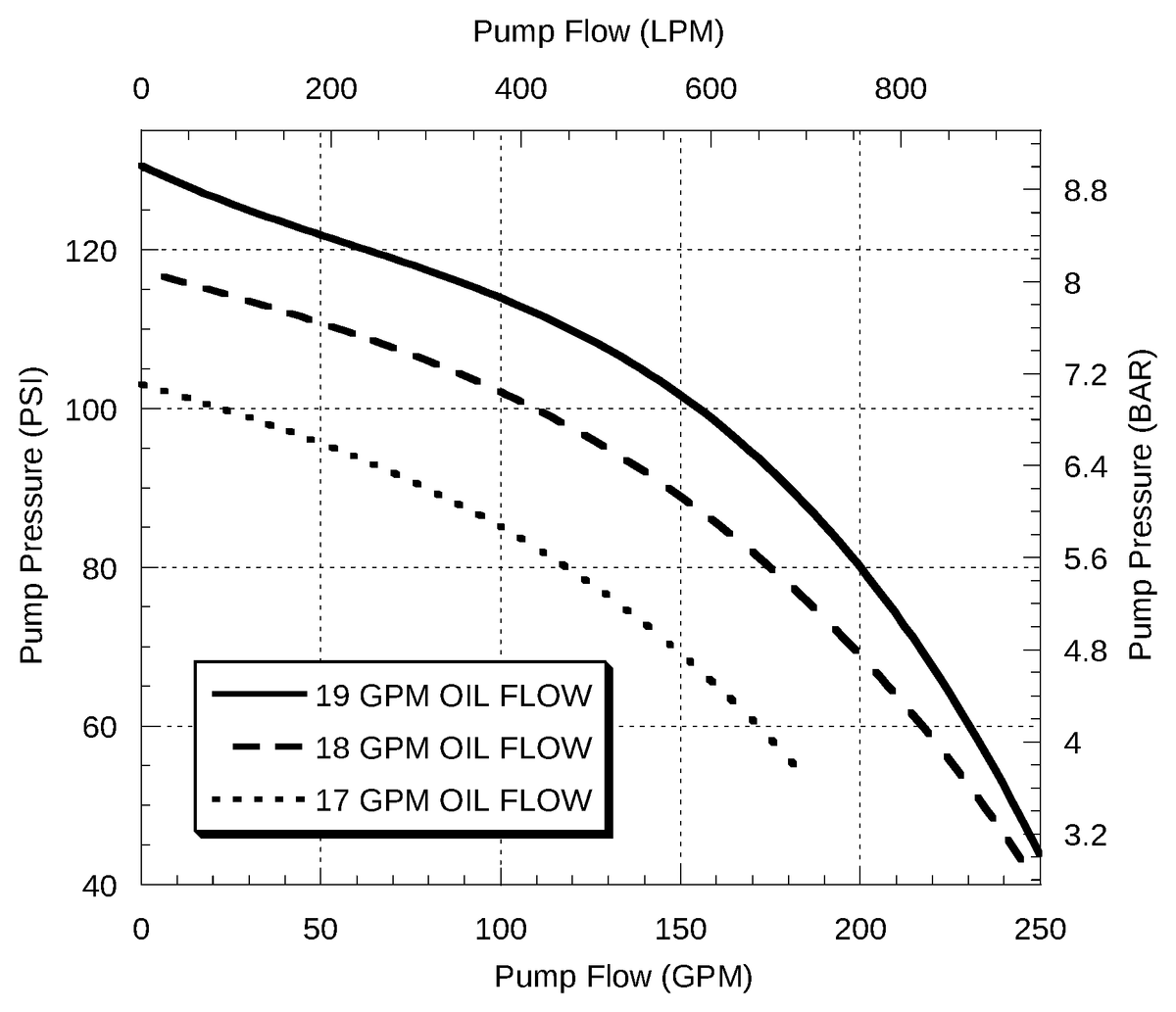

  • Ace FMC-200-HYD-307 performance curve — pressure (psi) vs. flow (gpm)

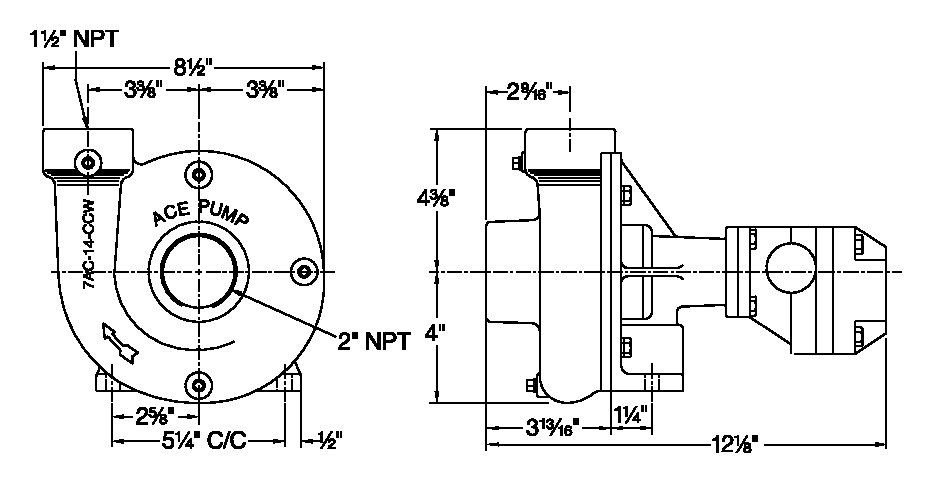

  • Ace FMC-200-HYD-307 dimension drawing
1 3

Ace Pumps

FMCSC-200-HYD-307 — Pump, Hydraulic Drive, 2" x 1.5", SC Seal

FMCSC-200-HYD-307 — Pump, Hydraulic Drive, 2" x 1.5", SC Seal

$1,317.60 USD
$2,196.00 USD $1,317.60 USD
Below list
Shipping calculated at checkout.

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-200-HYD-307 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-200-HYD-307 — Pump, Hydraulic Drive, 2" x 1.5", SC Seal” — fitment, alternatives, or what else you need

FMCSC-200-HYD-307 hydraulic-driven centrifugal pump, 2" x 1.5" ports, silicon carbide mechanical seal (severe duty). Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
1 41120 Pipe plug, stainless steel (optional) 4
2 7AC-14-CCW Volute, 2" x 1-1/2" 1
3 BAC-23-A Nut, 3/8" NF, cad plated 1
4 BAC-24-HYD-SS Washer, 3/8" star, stainless steel 1
5 BAC-26-200-P Impeller, extended keyway, thermoplastic (eff. 10/99) 1
5 BAC-26-200-CI Impeller, extended keyway, cast iron (eff. 10/98)(optional) 1
6 BAC-4A O-ring, body seal (eff. 04/96) 1
7 BAC-7SC Seal, mechanical, silicon carbide (includes 40160 "O" Ring) 1
7A 40160 O-ring, shaft seal 1
8 BAC-14-HYD-300 Mounting frame (-300 series hydraulic motor) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 4
10 BAC-54 Slinger 1
11 BAC-33 Snap ring, internal, BAC-14 mounting frame 2
12 BAC-37 Ball Bearing, sealed, BAC-6 shaft 2
13 BAC-32 Snap ring, external, BAC-6 shaft 2
14 BAC-32-S Spacer for BAC-6 shaft 1
15 BAC-25 Key, 1/8" x 1/8" x 13/16", extended keyway (eff. 10/98) 1
16 BAC-6-HYD-200-SS Shaft, extended keyway, tang slot, stainless steel (eff. 10/98) 1

Hydraulic Motor

Ref. Part No. Description Qty
17 BAC-75-HYD-307 Hydraulic motor, extended shaft (eff. 04/01) 1
18 41330 Cap screw, 5/16" N.C. x 3/4" hex head, motor to pump 4

Repair Kits

Kit No. Description
RK-FMCSC Repair Kit Assembly, Silicon Carbide Seal
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.

Parts per Ace Pump Corporation product sheet FMC-200-HYD-307 (rev 08/08). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The photo shows the FMC-200-HYD-304. The FMCSC-200-HYD-307 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting. Click any image to zoom.
