FMCSC-200SS-HYD-304-12SAE — Pump, Hydraulic Drive, 2" x 1.5", 316 Stainless Steel
FMCSC-200SS-HYD-304-12SAE — Pump, Hydraulic Drive, 2" x 1.5", 316 Stainless Steel
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

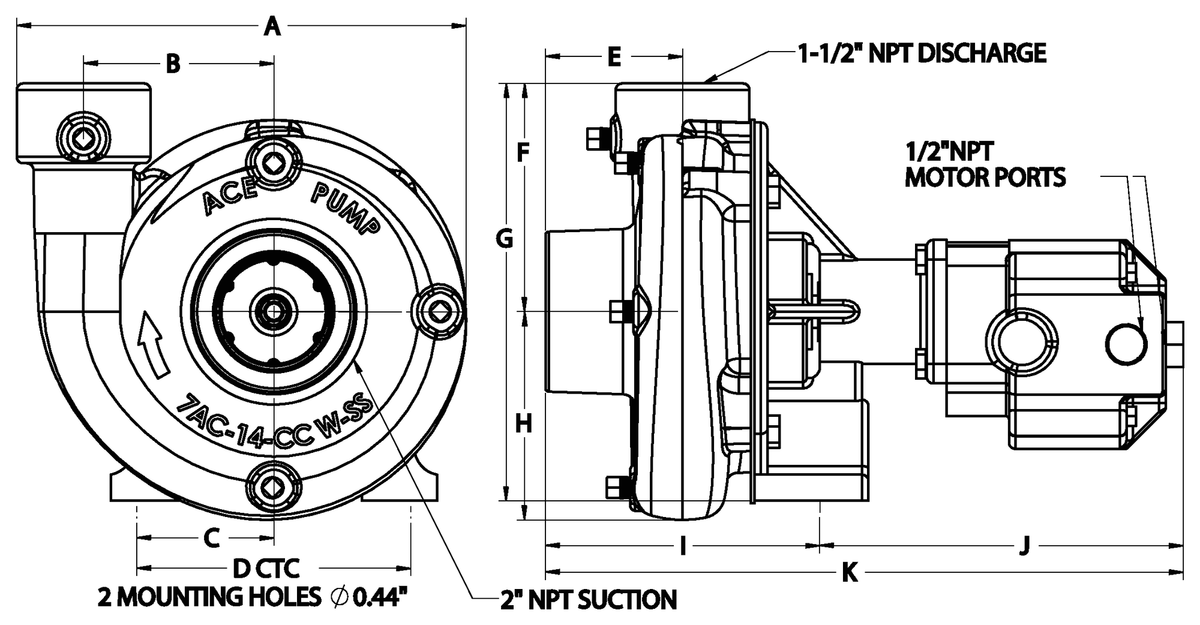

FMCSC-200SS-HYD-304-12SAE hydraulic-driven centrifugal pump, 2" x 1.5" ports, stainless steel construction, silicon carbide mechanical seal (severe duty). Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Build options on this model: #12 SAE motor ports. Where the list shows standard and optional versions of a part, order the one that matches these options.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 41120 | Pipe plug, stainless steel | 4 |
| 2 | 7AC-14-CCW-SS | Volute, 2" x 1-1/2", stainless steel | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8", stainless steel, self-locking | 1 |
| 5 | BAC-26-200-SS | Impeller, with extended keyway, stainless steel | 1 |
| 5 | BAC-26-200-P | Impeller, with extended keyway, thermoplastic (optional) | 1 |
| 6 | BAC-4A | O-ring, body seal | 1 |
| 7 | BAC-7SC | Seal, mechanical, silicon carbide (includes 40160 O-ring) | 1 |
| 7A | 40160 | O-ring, shaft seal | 1 |
| 8 | BAC-14-LIN | Liner; mounting frame, stainless steel | 1 |
| 9 | BAC-14-HYD-300A-LIN | Mounting frame, -300 (A & N) series hydraulic motor (machined for liner) | 1 |
| 10 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel | 4 |
| 11 | 41330 | Cap screw, 5/16" N. C. x 3/4" hex head, motor to pump | 4 |
| 12 | BAC-54 | Slinger | 1 |
| 13 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 14 | BAC-37 | Ball bearing, sealed, BAC-6 shaft | 2 |
| 15 | BAC-32 | Snap ring, external, BAC-6 shaft | 2 |
| 16 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 17 | BAC-25 | Key, 1/8" x 1/8" x 13/16", extended keyway | 1 |
| 18 | BAC-6-HYD-200-SS | Shaft, extended keyway, tang, stainless steel | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 19 | BAC-75-HYD-304 | Hydraulic motor, 11 GPM (includes parts 11, 20 thru 27) | 1 |
| 20 | S300 | Seal support spacer for 300 Series HYD motor | 1 |
| 21 | BAC-75-HYD-304N | Hydraulic motor, 11 GPM, effective 5/13 (motor only - no external fittings) | 1 |
| 21 | BAC-75-HYD-304A-12SAE | Hydraulic motor, 11 GPM, #12 SAE end ports (optional) | 1 |
| 22 | 41875 | O-ring, #8 SAE fitting | 1 |
| 23 | 41445 | O-ring, #10 SAE fitting | 1 |
| 24 | BAC-80-8SAE | Body, restrictor orifice, #8SAE x 1/2" NPT | 1 |
| 25 | 41448 | O-ring, orifice insert | 1 |
| 26 | BAC-79-8 | Orifice insert, restrictor insert, 0.125 | 1 |
| 27 | BAC-78-10SAE | Reverse check assembly, #10 SAE x 1/2" NPT | 1 |
| 28 | LS-304N | Flow limiter, #8 SAE X 1/2" NPT (optional) | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC | Repair Kit Assembly, Silicon Carbide Seal |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
This model has larger SAE motor port fittings than the standard #8 SAE fittings Ace shows, so the reverse check and restrictor fittings differ — call us to confirm those parts.
This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.
Parts per Ace Pump Corporation product sheet FMC-200SS-HYD-304 (rev 06/13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
