Ace Pumps

FMCSC-205F-HYD-306 — Pump, Hydraulic Drive, 300 x 220 Flange

FMCSC-205F-HYD-306 — Pump, Hydraulic Drive, 300 x 220 Flange

$1,402.20 USD
$2,337.00 USD $1,402.20 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-205F-HYD-306 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-205F-HYD-306 — Pump, Hydraulic Drive, 300 x 220 Flange” — fitment, alternatives, or what else you need

FMCSC-205F-HYD-306 hydraulic-driven centrifugal pump, 300 x 220 flange ports, silicon carbide mechanical seal (severe duty). Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug 4
2 7AC-14-FLG Volute, 300 standard flange x 220 full port flange, cast iron 1
3 BAC-23-B-SS Nut, 3/8" NF, stainless steel 1
4 BAC-24-B-SS Washer, 3/8", stainless steel, self-locking 1
5 BAC-26-200-P Impeller, thermoplastic 1
5 BAC-26-200-CI Impeller, cast iron (optional) 1
6 BAC-4A O-ring, body seal 1
7 BAC-7SC-205V Seal, silicon carbide 1
8 BAC-14-205-HYD Mounting frame for 205 pump 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 4
10 41330 Cap screw, 5/16" NC x 3/4" hex head, motor to pump 4
11 BAC-54 Slinger 1
12 BACH-33 Snap ring, internal, BAC-14-205 mounting frame 2
13 BACH-32-HD Snap ring, external, BAC-6-205 shaft 3
14 40880 Ball bearing, sealed, BAC-6-205 shaft 2
15 BAC-6-205-HYD-SS Shaft, extended keyway, tang, stainless steel 1
16 BAC-25 Key, 1/8" x 1/8" x 13/16", extended keyway 1

Hydraulic Motor

Ref. Part No. Description Qty
BAC-75-HYD-306 Motor, 16.5 GPM Hydraulic, N Series 1

Repair Kits

Kit No. Description
RK-FMCSC-205 Repair Kit Assembly
RK-BAC-75-HYD-300-L Repair Kit Assembly, 300 Hydraulic Motor

Ace’s sheet for this pump shows a different motor; the mounting frame, spacer, fittings and restrictor for the -306 motor can differ, so call us to confirm those parts.

Parts per Ace Pump Corporation product sheet FMCSC-205F-HYD-304 / FMCSC-205FS-HYD-304 (rev 08/15). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

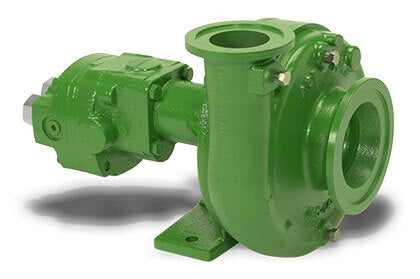

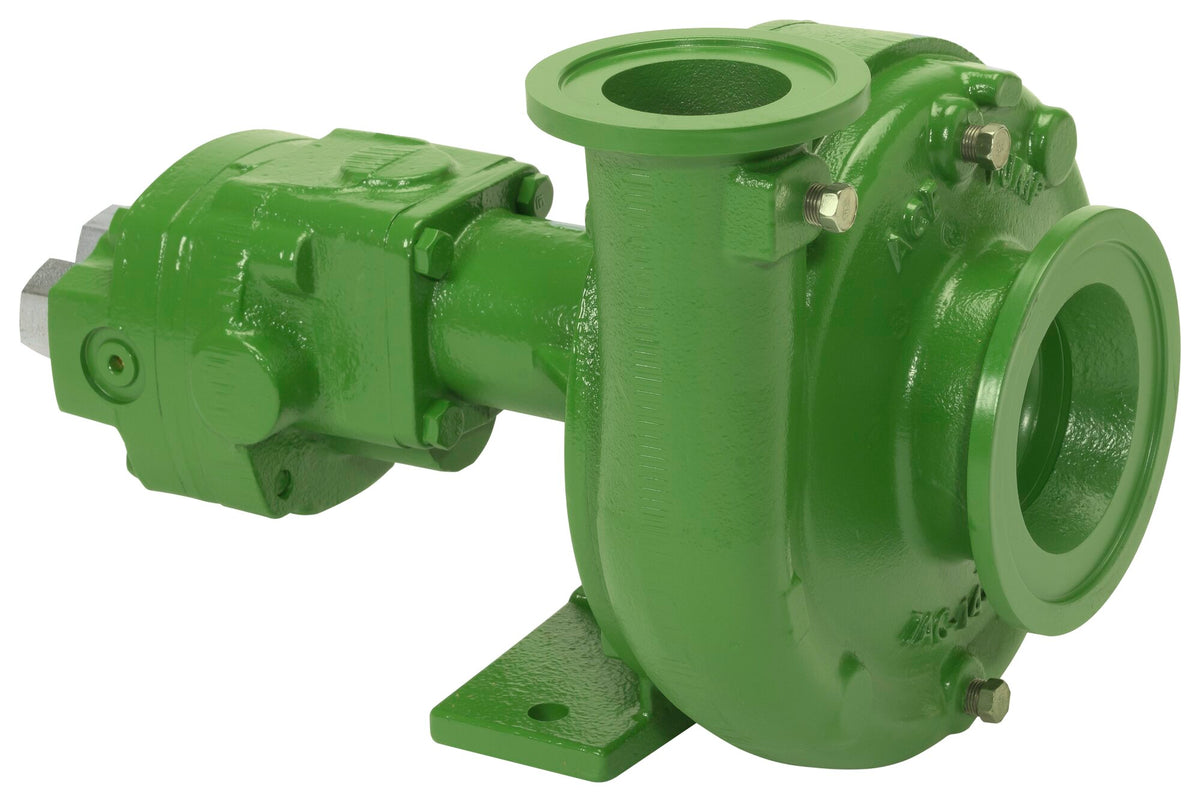

The photo shows the FMCSC-205F-HYD. The FMCSC-205F-HYD-306 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.
