FMCSC-205FS-HYD-304 — Pump, Hydraulic Drive, 300 x 220 Flange Stainless Steel
FMCSC-205FS-HYD-304 — Pump, Hydraulic Drive, 300 x 220 Flange Stainless Steel
Regular price
$2,295.00 USD
Regular price
$3,825.00 USD
Sale price
$2,295.00 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-205FS-HYD-304 — Pump, Hydraulic Drive, 300 x 220 Flange Stainless Steel” — fitment, alternatives, or what else you need

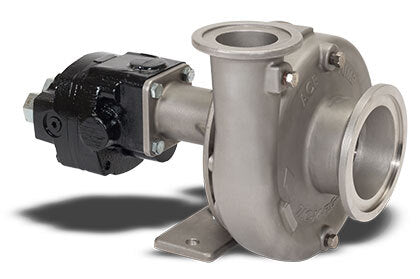

FMCSC-205FS-HYD-304 hydraulic-driven centrifugal pump, 300 x 220 flange ports, silicon carbide mechanical seal (severe duty). Flow rate up to 240 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (-FS model) | 4 |
| 2 | 7AC-14-FLG | Volute, 300 standard flange x 220 full port flange, cast iron | 1 |
| 2 | 7AC-14-FLG-SS | Volute, 300 flange x 220 flange, 316 stainless steel (-FS model) | 1 |
| 3 | BAC-23-B-SS | Nut, 3/8" NF, stainless steel | 1 |
| 4 | BAC-24-B-SS | Washer, 3/8", stainless steel, self-locking | 1 |
| 5 | BAC-26-200-P | Impeller, thermoplastic | 1 |
| 5 | BAC-26-200-CI | Impeller, cast iron (optional) | 1 |
| 5 | BAC-26-200-SS | Impeller, 316 stainless steel (-FS model) (optional) | 1 |
| 6 | BAC-4A | O-ring, body seal | 1 |
| 7 | BAC-7SC-205V | Seal, silicon carbide | 1 |
| 8 | BAC-14-205-HYD | Mounting frame for 205 pump | 1 |
| 8 | BAC-14-205-HYD-SS | Mounting frame for 205 pump, 316 stainless steel (-FS model) | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 4 |
| 9 | 40930 | Cap screw, 3/8" NC x 3/4" hex head, stainless steel (-FS model) | 4 |
| 10 | 41330 | Cap screw, 5/16" NC x 3/4" hex head, motor to pump | 4 |
| 11 | BAC-54 | Slinger | 1 |
| 12 | BACH-33 | Snap ring, internal, BAC-14-205 mounting frame | 2 |
| 13 | BACH-32-HD | Snap ring, external, BAC-6-205 shaft | 3 |
| 14 | 40880 | Ball bearing, sealed, BAC-6-205 shaft | 2 |
| 15 | BAC-6-205-HYD-SS | Shaft, extended keyway, tang, stainless steel | 1 |
| 16 | BAC-25 | Key, 1/8" x 1/8" x 13/16", extended keyway | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 17 | S305 | Seal support spacer for 205 series pump | 1 |
| 18 | BAC-75-HYD-304N | Hydraulic motor, 11 GPM, effective 5/13 | 1 |
| 19 | 41875 | O-ring, #8 SAE fitting | 1 |
| 20 | 41445 | O-ring, #10 SAE fitting | 1 |
| 21 | BAC-80-8SAE | Body, restrictor orifice, #8SAE x 1/2" NPT | 1 |
| 22 | 41448 | O-ring, orifice insert | 1 |
| 23 | BAC-79-8 | Orifice insert, restrictor insert, 0.125 | 1 |
| 24 | 41442 | Reverse check assembly, #10 SAE x 1/2" NPT | 1 |
| 25 | LS-304N | Flow limiter (optional) | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-205 | Repair Kit Assembly |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCSC-205F-HYD-304 / FMCSC-205FS-HYD-304 (rev 08/15). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
