FMCSC-650-MAG-D — Pump, 1.5"x1.25"x6.5", Dual MAG/SC Seal
FMCSC-650-MAG-D — Pump, 1.5"x1.25"x6.5", Dual MAG/SC Seal
Regular price
$1,742.40 USD
Regular price
$2,904.00 USD
Sale price
$1,742.40 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-650-MAG-D — Pump, 1.5"x1.25"x6.5", Dual MAG/SC Seal” — fitment, alternatives, or what else you need

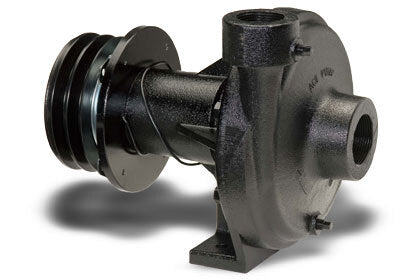

FMCSC-650-MAG-D magnetic clutch (belt) driven centrifugal pump, 1.5" x 1.25" ports, silicon carbide mechanical seal (severe duty), magnetic clutch drive (engage/disengage via switch without stopping belt). Flow rate up to 140 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT | 3 |
| 2 | BAC-12-650 | Volute, 1-1/2" x 1-1/4" CCW rotation, cast iron, e-coated | 1 |
| 3 | 40930 | Cap screw, 3/8" NC x 3/4" Hex Head Stainless Steel | 1 |
| 4 | 30029 | Washer, 3/8" stainless steel sealing | 1 |
| 5 | BAC-26-650 | Impeller, cast iron, e-coated | 1 |
| 5 | BAC-26-650-SS | Impeller, stainless steel (optional) | 1 |
| 6 | BAC-4-150 | "O" Ring for BAC-12-650 volute seal | 1 |
| 7 | BAC-7SC-650 | Seal, silicon carbide mechanical seal | 1 |
| 8 | BAC-14-650-MAG | Mounting frame, cast iron, e-coated | 1 |
| 9 | 40950 | Cap screw, 3/8" NC x 3/4" Hex Head | 8 |
| 10 | BAC-54-650 | Slinger | 1 |
| 11 | 41943 | Snap ring, internal, BAC-14-650 | 2 |
| 12 | 40875 | Bearing, BAC-6-650-D-SS driven shaft | 2 |
| 13 | ACAL-32 | Snap ring, external, BAC-6-650-D-SS | 1 |
| 14 | BAC-32-650 | Spacer for BAC-6-650-D-SS | 1 |
| 15 | BAC-6-650-D-SS | Shaft, 1" driven, -D clutch tapered, stainless steel | 1 |
| 16 | 41085 | Key, 3/16" x 3/16" x 7/8" | 1 |
| 17 | 41088 | Key, woodruff, #505 | 1 |
| 18 | 41474 | Adapter plate, -D clutch, 650 models | 1 |
| 19 | 41942 | Snap ring for adapter plate | 1 |
| 20 | 41481 | Clutch assembly, dual belt, taper bore | 1 |
| 21 | 41494 | Washer, -D clutch attachment | 1 |
| 22 | SP-62 | Cap screw, 5/16" NF x 1"; -D clutch attachment | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-650 | Repair Kit Assembly |
This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.
Parts per Ace Pump Corporation product sheet FMC-650-MAG-D (rev 06/10). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
