Ace Pumps

FMCSC-650FS-HYD-LM — Pump, Hydraulic, 220x200, 316SS, SC Seal, LM

FMCSC-650FS-HYD-LM — Pump, Hydraulic, 220x200, 316SS, SC Seal, LM

$2,220.60 USD
$3,701.00 USD $2,220.60 USD
Sale
Shipping calculated at checkout.
Title

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-650FS-HYD-LM — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-650FS-HYD-LM — Pump, Hydraulic, 220x200, 316SS, SC Seal, LM” — fitment, alternatives, or what else you need

FMCSC-650FS-HYD-LM hydraulic-driven centrifugal pump, 220 x 200 flange ports, silicon carbide mechanical seal (severe duty), sold less hydraulic motor. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
1 BAC-53 Pipe plug, 1/8" NPT, hex head 3
1 41120 Pipe plug, 1/8" NPT, hex head, stainless steel (optional) 3
2 BAC-12-650-FLG-SS Volute, NPT & 220 x NPT & 200, 316 stainless steel (FS model) 1
3 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
4 30029 Washer, 3/8" O.D., sealing, stainless steel 1
5 BAC-26-650 Impeller, cast iron, e-coated 1
5 BAC-26-650-SS Impeller, stainless steel (optional) 1
6 BAC-7SC-650 Seal, silicon carbide/Viton, 3/4" 1
7 BAC-4-150 O-ring, volute seal 1
8 BAC-14-650-HYD Mounting frame, cast iron, e-coated 1
8 BAC-14-650-HYD-LIN Mounting frame, cast iron, e-coated, for liner (FS model) 1
8a BAC-16-650-LIN Liner, 316 stainless steel (FS model) 1
9 40950 Cap screw, 3/8" NC x 3/4" hex head 8
9 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel (optional) 8
10 BAC-54-650 Slinger, 1.5" OD x 7/8" ID 1
11 41943 Snap ring, internal, mounting frame 2
12 40875 Bearing, FMC-650 models 2
13 BAC-6-650-HYD-SS Shaft, 1.13" dia., 11T female spline, stainless steel 1
14 41085 Key, .188 x .188 x .875, FMC-650 models 1

Repair Kits

Kit No. Description
RK-FMCSC-650 Repair Kit Assembly

This model is supplied less hydraulic motor; motor parts are not listed.

This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.

Parts per Ace Pump Corporation product sheet FMC-650F-HYD / FMC-650FS-HYD (rev 12/16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

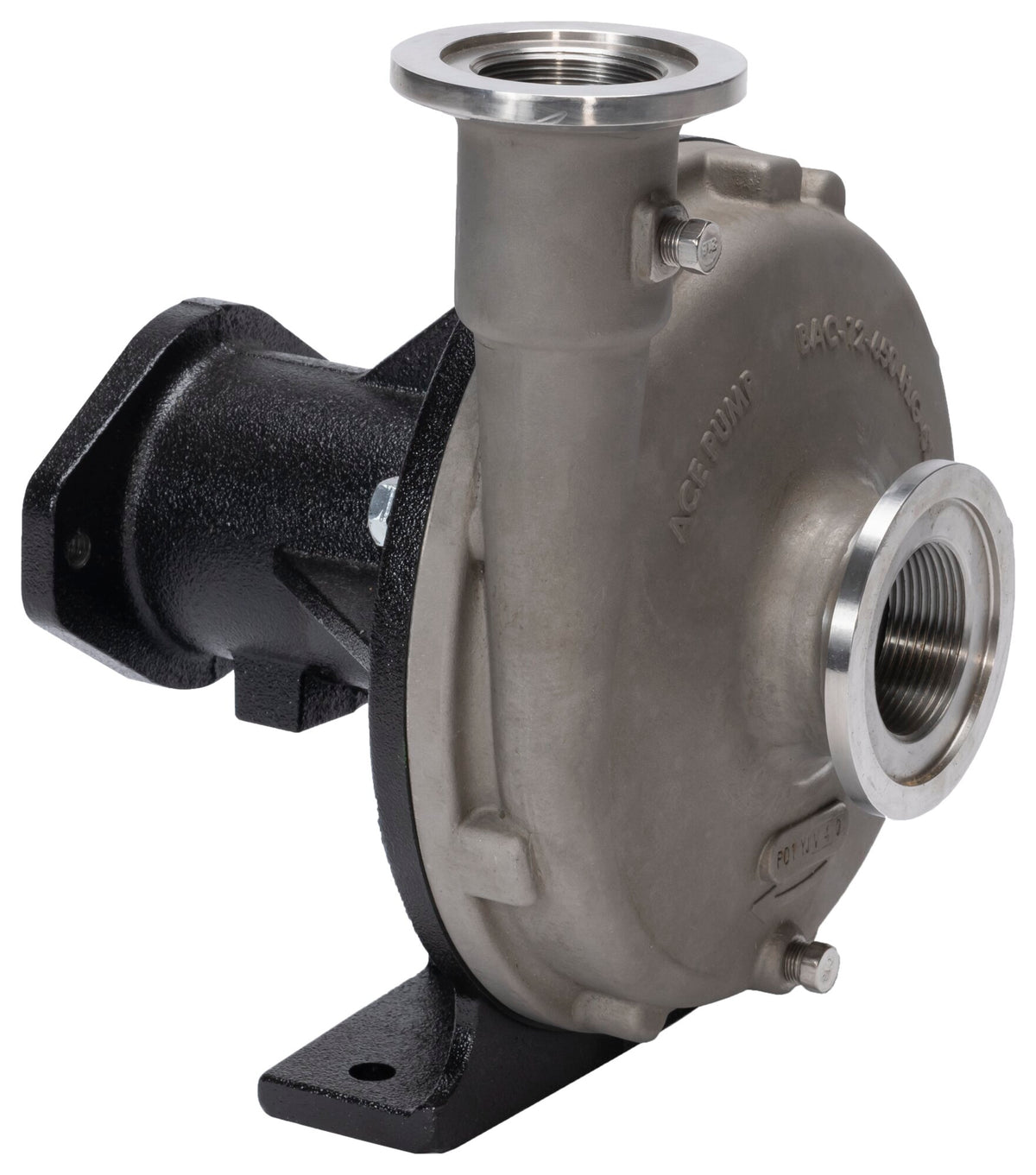

The photo shows the FMC-650FS-HYD-LM. The FMCSC-650FS-HYD-LM is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.
