FMCSC-75SP-HYD-206-PWM — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming, PWM
FMCSC-75SP-HYD-206-PWM — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming, PWM
Regular price
$1,760.40 USD
Regular price
$2,934.00 USD
Sale price
$1,760.40 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-75SP-HYD-206-PWM — Pump, Hydraulic Drive, 1" x 3/4", Poly, Self-Priming, PWM” — fitment, alternatives, or what else you need

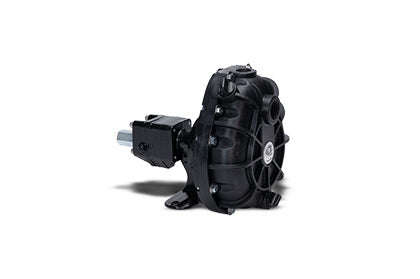

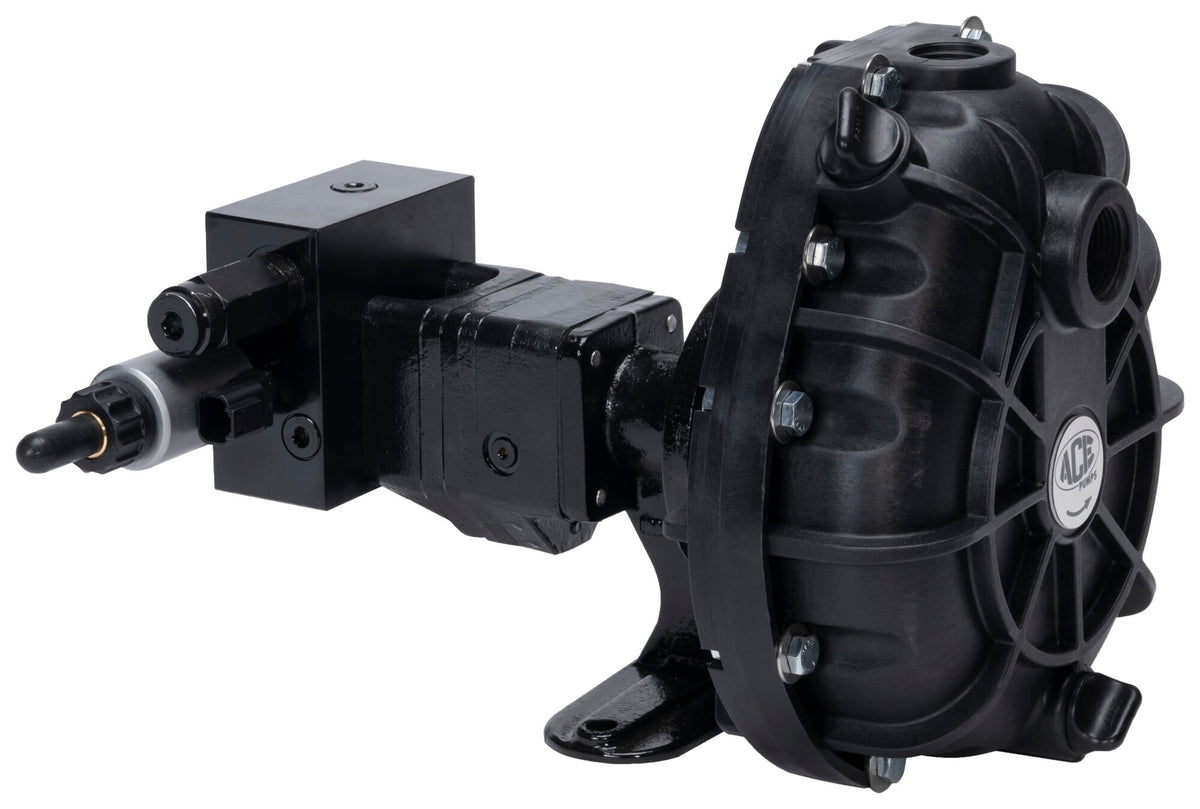

FMCSC-75SP-HYD-206-PWM hydraulic-driven centrifugal pump, 1" x 3/4" ports, silicon carbide mechanical seal (severe duty), self-priming, proportional (PWM) hydraulic flow control compatible. Flow rate up to 27 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 42237 | Cap screw, 5/16"-18 x 1-3/8", hex head | 10 |
| 2 | 20730 | Washer, flat, 5/16", volute to bracket | 10 |
| 3 | GE-12SP-75 | Volute, 1" x 3/4", polypropylene | 1 |
| 4 | 41122 | Plug, volute | 2 |
| 5 | 40191 | O-ring, plug | 2 |
| 6 | 42240 | Cap screw, 1/4"-28 x 1", hex, SS | 1 |
| 7 | 30028 | Washer, sealing | 5 |
| 8 | GE-26-75 | Impeller, with keyway, polypropylene | 1 |
| 9 | 42238 | Cap screw, 5/16" NF x 2-1/2", SS | 4 |
| 10 | BAC-7SC-75V | Seal, 5/8", silicon carbide/FKM | 1 |
| 10A | 40159 | O-ring, seal seat | 1 |
| 11 | 40014 | O-ring, volute seal | 1 |
| 12 | GE-14-75SP | Bracket, polypropylene | 1 |
| 13 | BAC-14-75-HYD | Mounting frame (for 200R series motors) | 1 |
| 14 | 42270 | Nut, hex, 5/16"-18 | 10 |
| 15 | BAC-54 | Slinger | 1 |
| 16 | BAC-33 | Snap ring, internal, BAC-14 mounting frame | 2 |
| 17 | BAC-37 | Bearing, BAC-6 driven shaft | 2 |
| 18 | BAC-32 | Snap ring, external, BAC-6 driven shaft | 2 |
| 19 | BAC-32-S | Spacer for BAC-6 shaft | 1 |
| 20 | 41082 | Key, 3/16" x 3/16" x 15/16" | 1 |
| 21 | BAC-6-75-HYD-SS | Shaft, 5/8" driven shaft with tang slot, SS | 1 |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 22 | S200 | Seal support spacer for 200 series hydraulic lip seal | 1 |
| 23B | BAC-75-HYD-206R-PWM | Hydraulic motor, integrated PWM valve, 7 GPM | 1 |
| 24 | 41875 | O-ring, #8 SAE fitting | 2 |
| 25 | BAC-78-8SAE | Reverse check assembly, #8 SAE male x 1/2" FNPT | 1 |
| 25B | BAC-78-10X8SAE | Reverse check assembly, #8 SAE male x #10 SAE | 1 |
| 26 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE male x 1/2" FNPT | 1 |
| 27 | 41448 | O-ring, orifice insert | 1 |
| 30B | 41263 | Cap screw, 5/16" NC x 6" socket head (206-PWM), SS | 4 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-75SP | Repair Kit Assembly, Fmcsc-75SP, Silicon Carbide |
| RK-BAC-75-HYD-L | Repair Kit Assembly, 200 Series Hydraulic Motor |
This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.
Parts per Ace Pump Corporation product sheet FMC-75SP-HYD (1" NPT x 3/4" NPT self-priming). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
