• Ace FMCSC-CW-150-MAG-DX3 — Pump, 1.5"x1.25", X W/ 3" Mount, Dual, SC

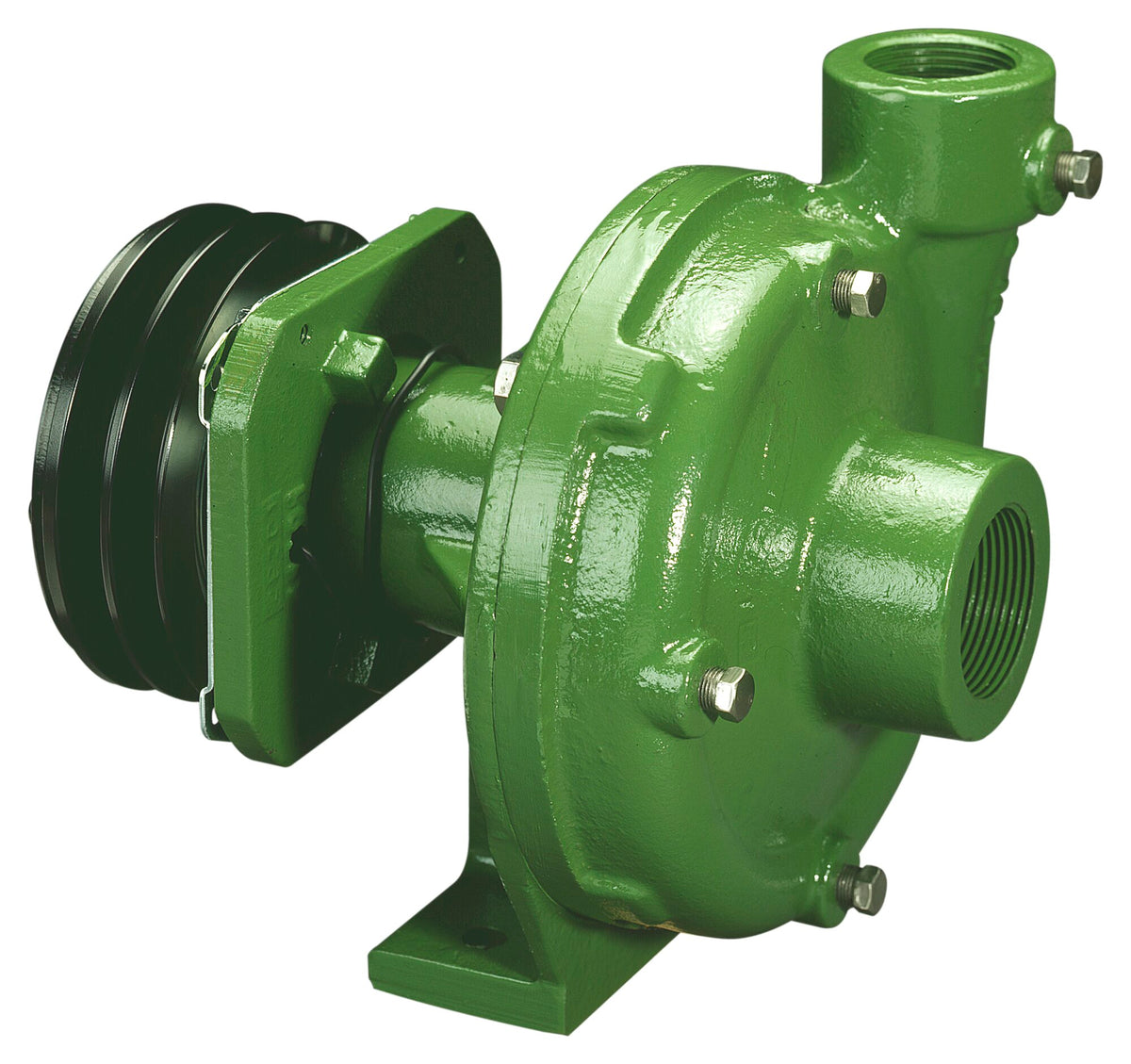

  • Ace FMC-CW-150-MAG-DX3 centrifugal pump

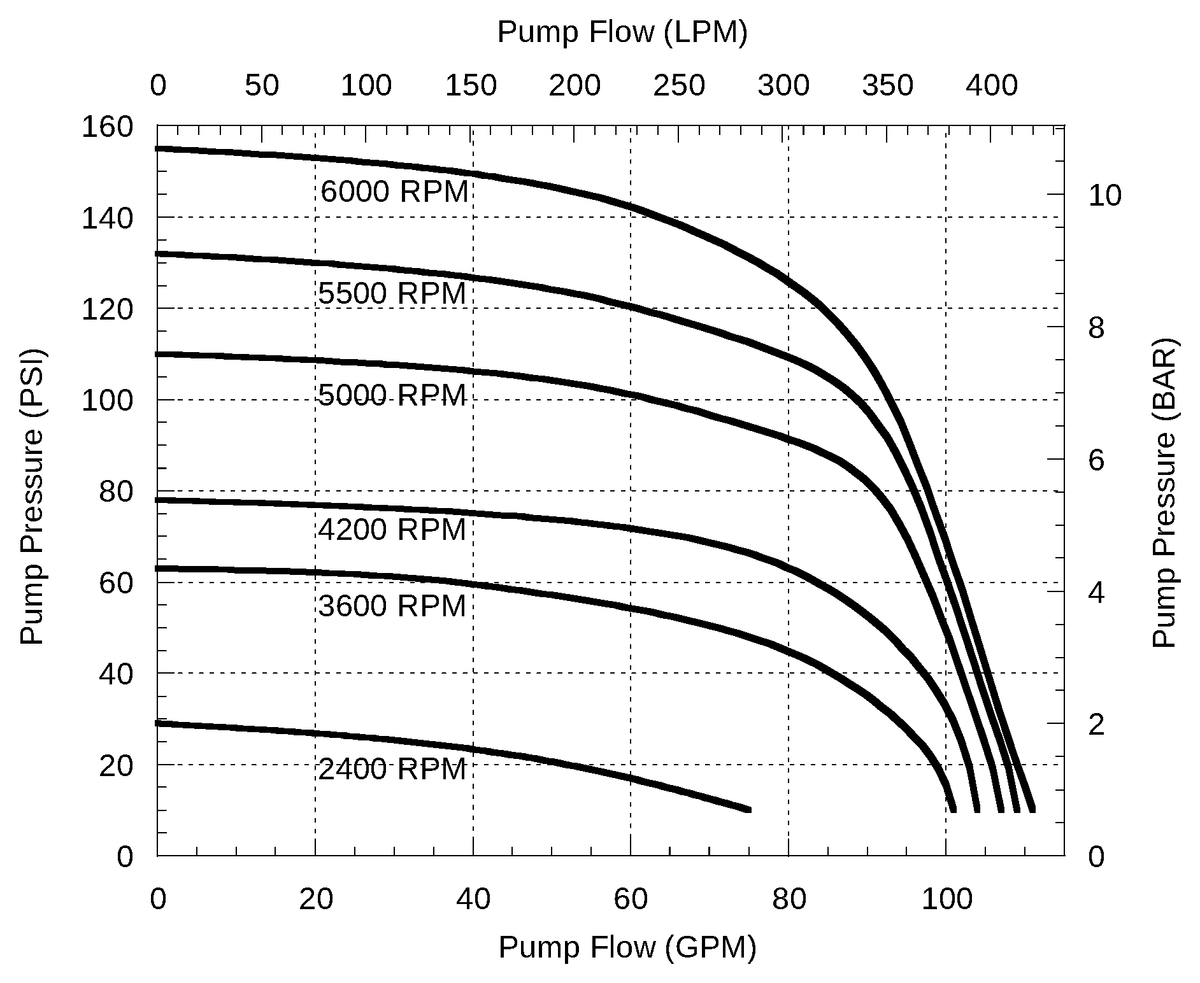

  • Ace FMC-CW-150-MAG-DX3 performance curve — pressure (psi) vs. flow (gpm)

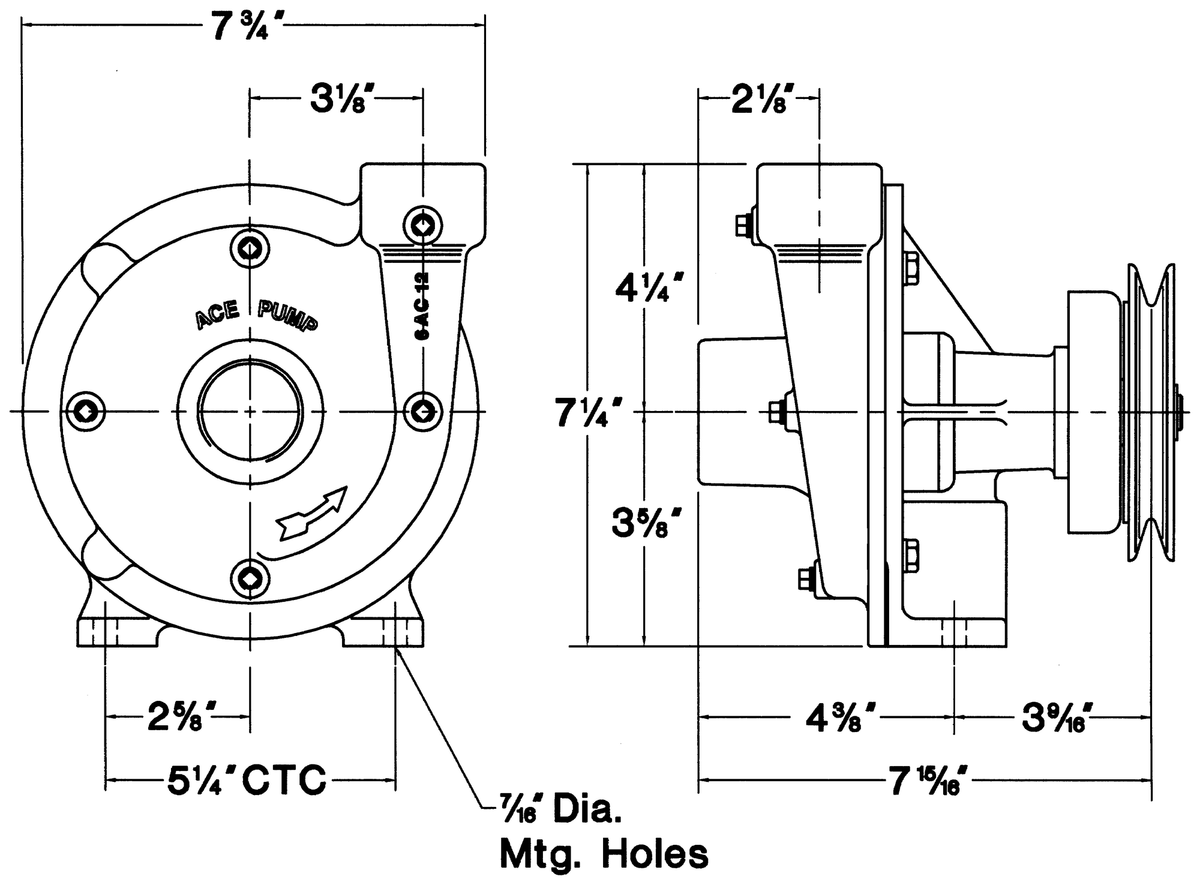

  • Ace FMC-CW-150-MAG dimension drawing
1 4

Ace Pumps

FMCSC-CW-150-MAG-DX3 — Pump, 1.5"x1.25", x With 3" Mount, Dual, SC

FMCSC-CW-150-MAG-DX3 — Pump, 1.5"x1.25", x With 3" Mount, Dual, SC

$1,072.80 USD
$1,788.00 USD $1,072.80 USD
Below list
Shipping calculated at checkout.

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-CW-150-MAG-DX3 — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-CW-150-MAG-DX3 — Pump, 1.5"x1.25", x With 3" Mount, Dual, SC” — fitment, alternatives, or what else you need

FMCSC-CW-150-MAG-DX3 magnetic clutch (belt) driven centrifugal pump, 1.5" x 1.25" ports, silicon carbide mechanical seal (severe duty), magnetic clutch drive (engage/disengage via switch without stopping belt), clockwise (CW) rotation. Flow rate up to 80 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Specs & Downloads

The photo shows the FMC-CW-150-MAG-DX3. The FMCSC-CW-150-MAG-DX3 is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.

View full details
