• Ace FMC-CW-200-MAG centrifugal pump
  • Ace FMC-CW-200-MAG-DX dimension drawing
1 2

Ace Pumps

FMCSC-CW-200-MAG-DX — Pump, 2" x 1.5", CW, Clutch Driven, Dual

FMCSC-CW-200-MAG-DX — Pump, 2" x 1.5", CW, Clutch Driven, Dual

$1,283.40 USD
$2,139.00 USD $1,283.40 USD
Below list
Shipping calculated at checkout.

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APFMCSC-CW-200-MAG-DX — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “FMCSC-CW-200-MAG-DX — Pump, 2" x 1.5", CW, Clutch Driven, Dual” — fitment, alternatives, or what else you need

FMCSC-CW-200-MAG-DX magnetic clutch (belt) driven centrifugal pump, 2" x 1.5" ports, silicon carbide mechanical seal (severe duty), magnetic clutch drive (engage/disengage via switch without stopping belt), clockwise (CW) rotation. Flow rate up to 200 GPM at 120 PSI. For agricultural spraying and liquid transfer applications.

Specs & Downloads

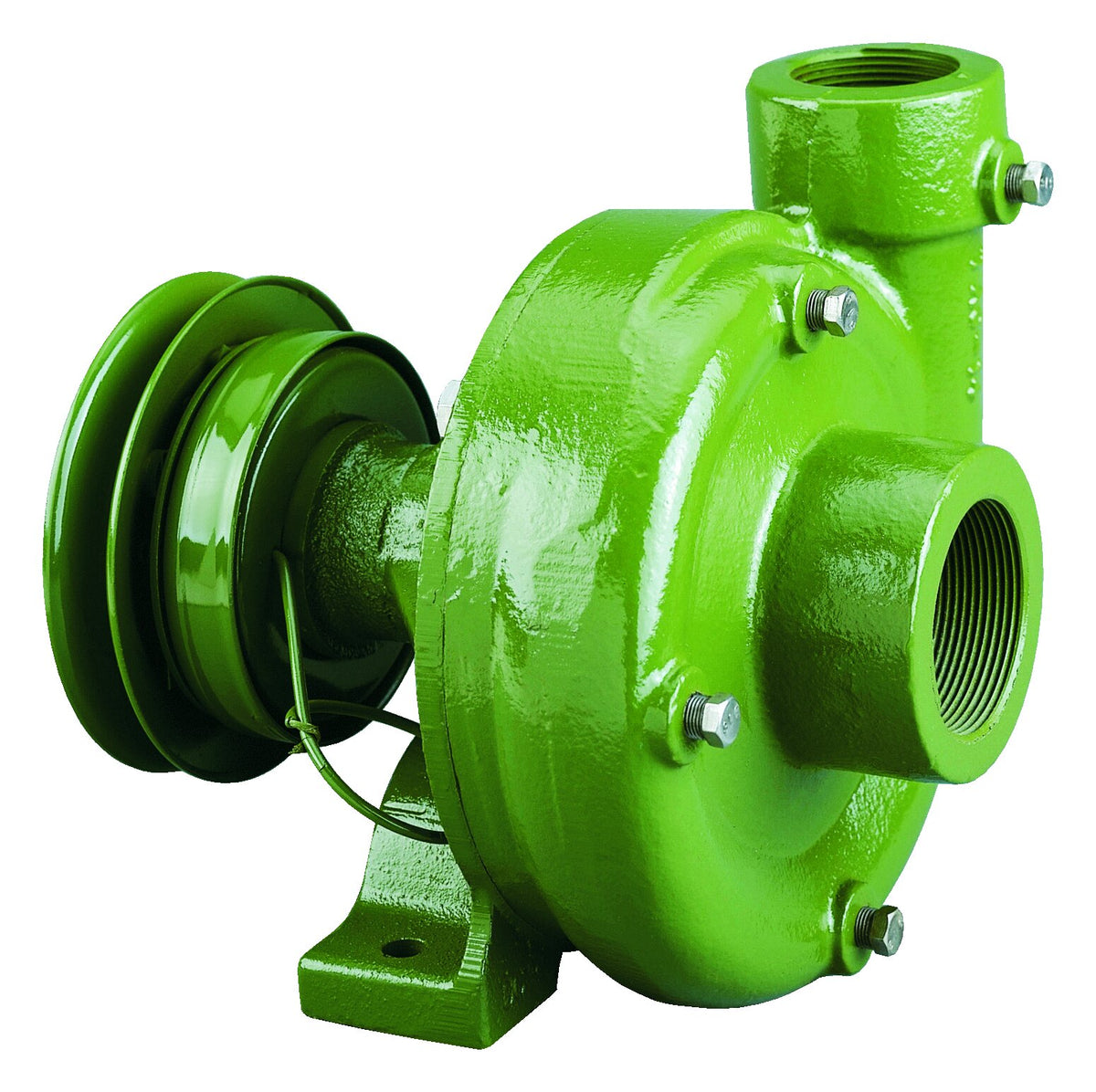

The photo shows the FMC-CW-200-MAG. The FMCSC-CW-200-MAG-DX is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

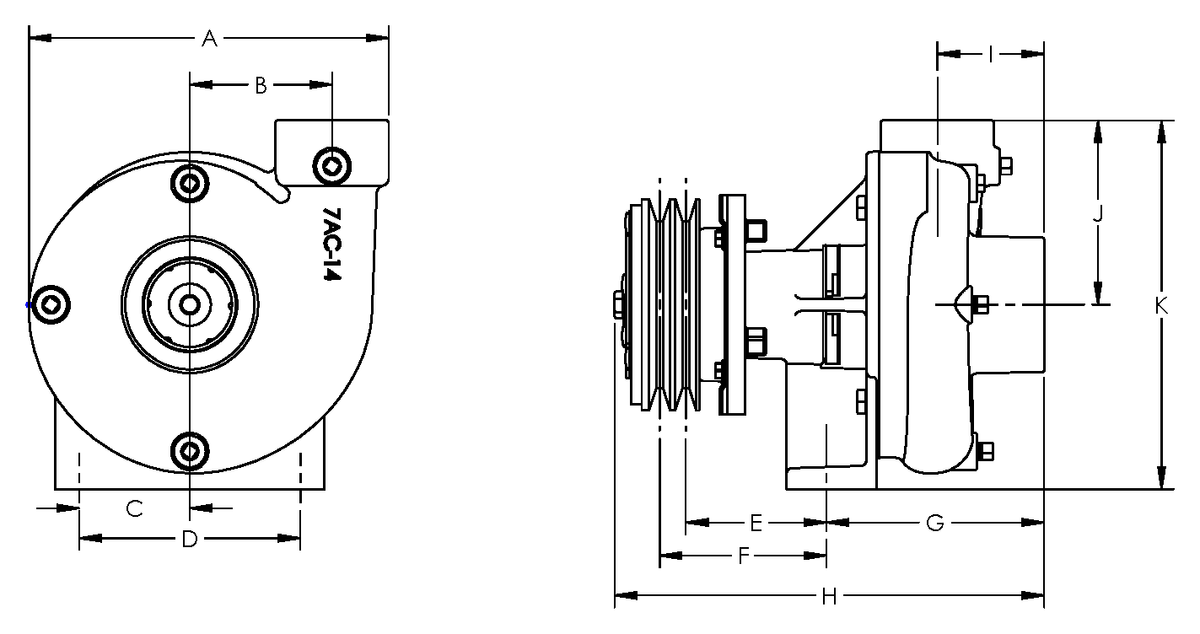

The image gallery includes a dimension drawing for mounting. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.

View full details
