FMCSC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven
FMCSC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven
Regular price
$2,534.40 USD
Regular price
$4,224.00 USD
Sale price
$2,534.40 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCSC-CW-800-MAG-D — Pump, 2" x 1.5" x 8", Clutch Driven” — fitment, alternatives, or what else you need

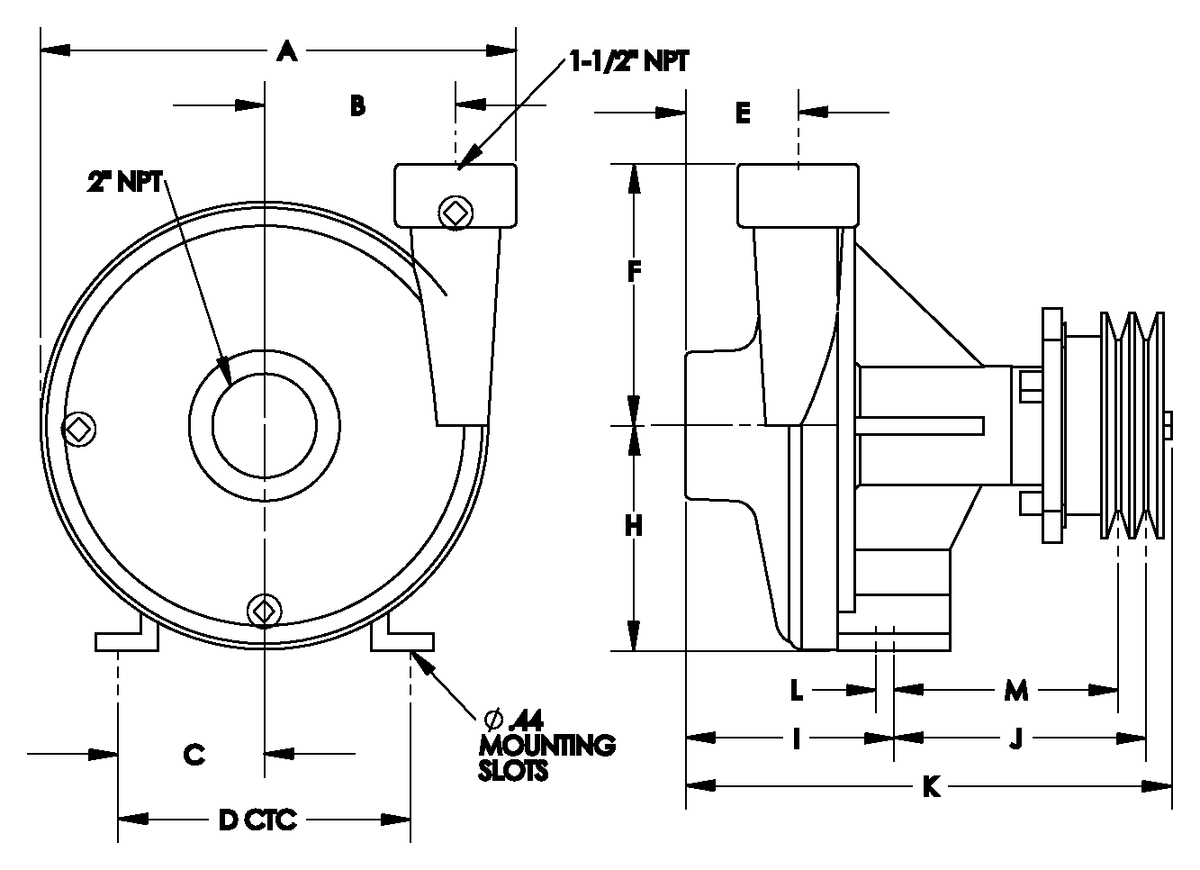

FMCSC-CW-800-MAG-D magnetic clutch (belt) driven centrifugal pump, 2" x 1.5" ports, silicon carbide mechanical seal (severe duty), magnetic clutch drive (engage/disengage via switch without stopping belt), clockwise (CW) rotation. Flow rate up to 180 GPM at 170 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT | 3 |
| 1 | 41120 | Pipe plug, 1/8" NPT, stainless steel (optional) | 3 |
| 2 | ACAL-14 | Volute, 2" x 1-1/2" | 1 |
| 3 | 45195 | Nut, 9/16" - 18 lock nut, stainless steel | 1 |
| 4 | BACG-44-A | Lockwasher, 9/16" ID, stainless steel | 1 |
| 5 | ACAL-26-75 | Impeller with keyway, 8" diameter | 1 |
| 6 | TYPE 21-984-SC | Seal, .984" Type 21, silicon carbide | 1 |
| 8 | 73010 | O-Ring for seal cartridge | 1 |
| 9 | GE-54 | Slinger | 1 |
| 10 | ACAL-4 | O-ring for ACAL-14 volute seal | 1 |
| 11 | ACAL-15-MAG-D | Mounting frame, machined to accept MAG-D clutch | 1 |
| 12 | 40950 | Cap screw, 3/8" NC x 3/4" hex head | 8 |
| 12 | 40930 | Cap screw, 3/8" NC x 3/4" hex, stainless steel (optional) | 8 |
| 13 | BACG-33 | Snap ring, internal | 2 |
| 14 | ACAL-37-DRB | Bearing, double row | 2 |
| 15 | ACAL-32 | Snap ring, external | 2 |
| 16 | ACAL-32-S-A | Spacer for ACAL-6 Shaft | 1 |
| 17 | 41079 | Key for impeller, 3/16" x 3/16" x 1/2" | 1 |
| 18 | 41088 | Woodruff key, #505 | 1 |
| 19 | ACAL-6-SS-D | Shaft, stainless steel, for FMC-CW-800-MAG-D | 1 |
| 20 | 41484 | Adapter plate, MAG-D clutch | 1 |
| 21 | 41483 | Snap ring, external, for adapter plate | 1 |
| 22 | 41496 | Coil ring, MAG-D clutch | 1 |
| 23 | 41482 | Pulley assembly, MAG-D clutch | 1 |
| 24 | 41494 | Washer | 1 |
| 25 | GE-60 | Cap screw | 1 |
| 26 | 41472 | Bullet, seal installation tool |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCSC-CW-800 | Repair Kit Assembly, Silicon Carbide Seal |
This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.
Parts per Ace Pump Corporation product sheet FMC-CW-800-MAG-D (rev 3/11). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
