Ace Pumps
FMCWS-125-HYD-LM — Pump Less Motor, Hydraulic, 1.25"x1", Wet Seal
FMCWS-125-HYD-LM — Pump Less Motor, Hydraulic, 1.25"x1", Wet Seal
Regular price
$1,356.00 USD
Regular price
$2,260.00 USD
Sale price
$1,356.00 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCWS-125-HYD-LM — Pump Less Motor, Hydraulic, 1.25"x1", Wet Seal” — fitment, alternatives, or what else you need

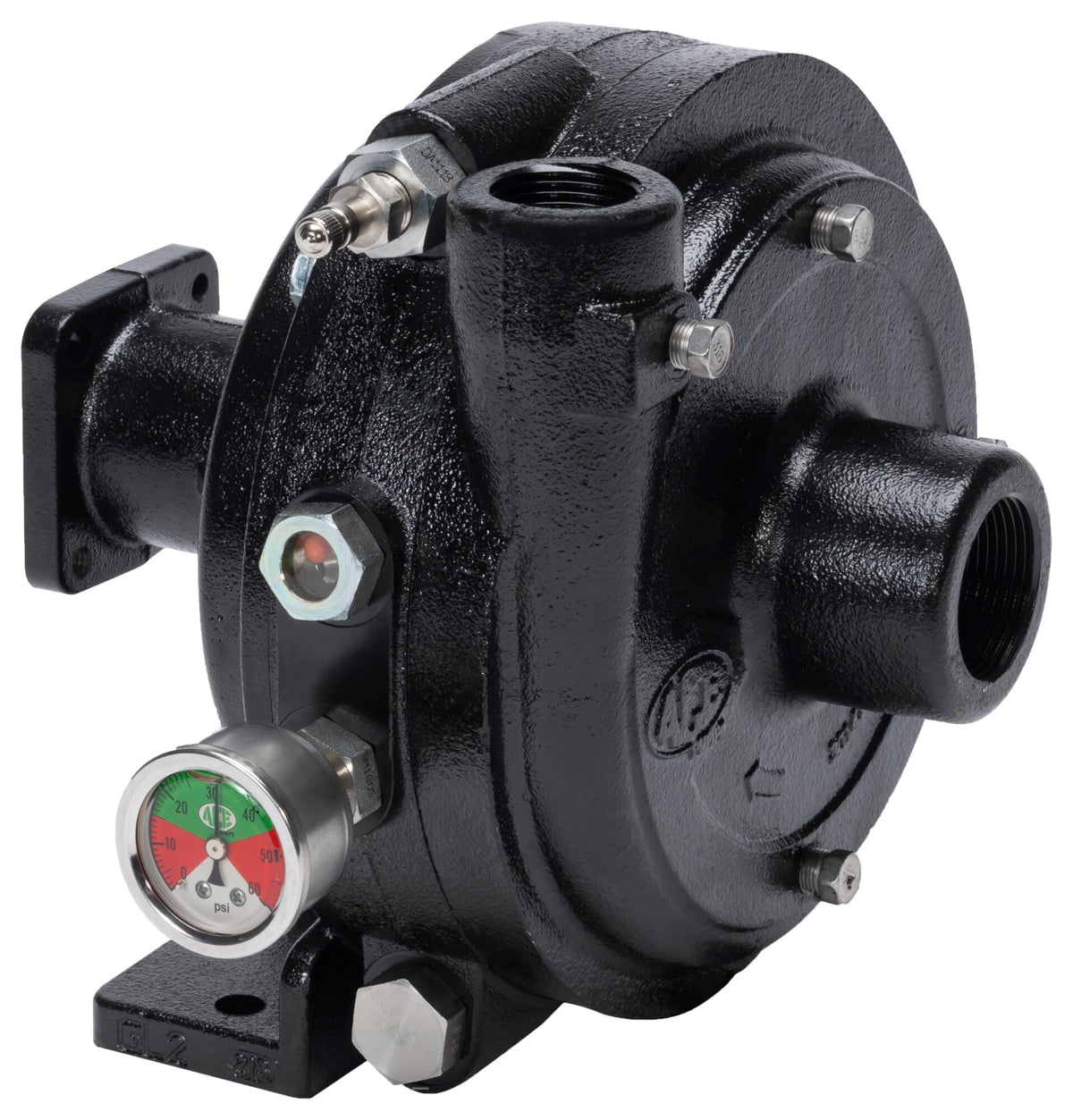

FMCWS-125-HYD-LM hydraulic-driven centrifugal pump, 1.25" x 1" ports, Oasis WetSeal barrier-fluid seal technology, sold less hydraulic motor. Flow rate up to 92 GPM at 100 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2 | BAC-12-125 | Volute, 1-1/4" NPT X 1" NPT | 1 |
| 3 | BAC-4-150 | O-ring, body seal | 2 |
| 4 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 5 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 6 | BAC-26-125-P | Impeller, thermoplastic, keyway | 1 |
| 7 | 72762 | Bolt, socket head, SS | 4 |
| 8 | BAC-16 | Seal plate, cast iron, E-coated | 1 |
| 9 | 41107 | Bushing with o-ring | 1 |
| 10 | 41316 | Air valve, 1/4" NPT | 1 |
| 11 | BAC-7-WS | Seal, dual assembly, Type 21 | 1 |
| 12 | BAC-14-5-HYD | Mounting frame, cast iron | 1 |
| 13 | BAC-42 | Cap screw, hex head | 4 |
| 14 | 55851 | Sight gauge with o-ring | 1 |
| 15 | 44039 | Bushing with o-ring | 1 |
| 16 | 50150 | Pressure gauge, 0-60 PSI | 1 |
| 17 | 41108 | Plug, hex head | 1 |
| 18 | BAC-54 | Slinger | 1 |
| 19 | BACH-33 | Snap ring, internal | 2 |
| 20 | BACH-32-HD | Snap ring, external | 3 |
| 21 | 40880 | Bearing | 2 |
| 22 | BAC-6-125-HYD-SS-WS | Shaft, stainless steel | 1 |
| 23 | BACH-25 | Key, SS | 1 |
| 34j* | 55032 | Barrier fluid, quart | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCWS | Includes items 3 (2ea), 11, 33 |
This model is supplied less hydraulic motor; motor parts are not listed.
Parts per Ace Pump Corporation product sheet FMCWS-125-HYD-204 (Pro 5 WetSeal, 1-1/4" NPT x 1" NPT). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
