FMCWS-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Wet Seal, Stainless Steel
FMCWS-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Wet Seal, Stainless Steel
Regular price
$3,405.60 USD
Regular price
$5,676.00 USD
Sale price
$3,405.60 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “FMCWS-155FS-HYD-304-PWM — Pump, Hydraulic, 1.5"x1.25", Wet Seal, Stainless Steel” — fitment, alternatives, or what else you need

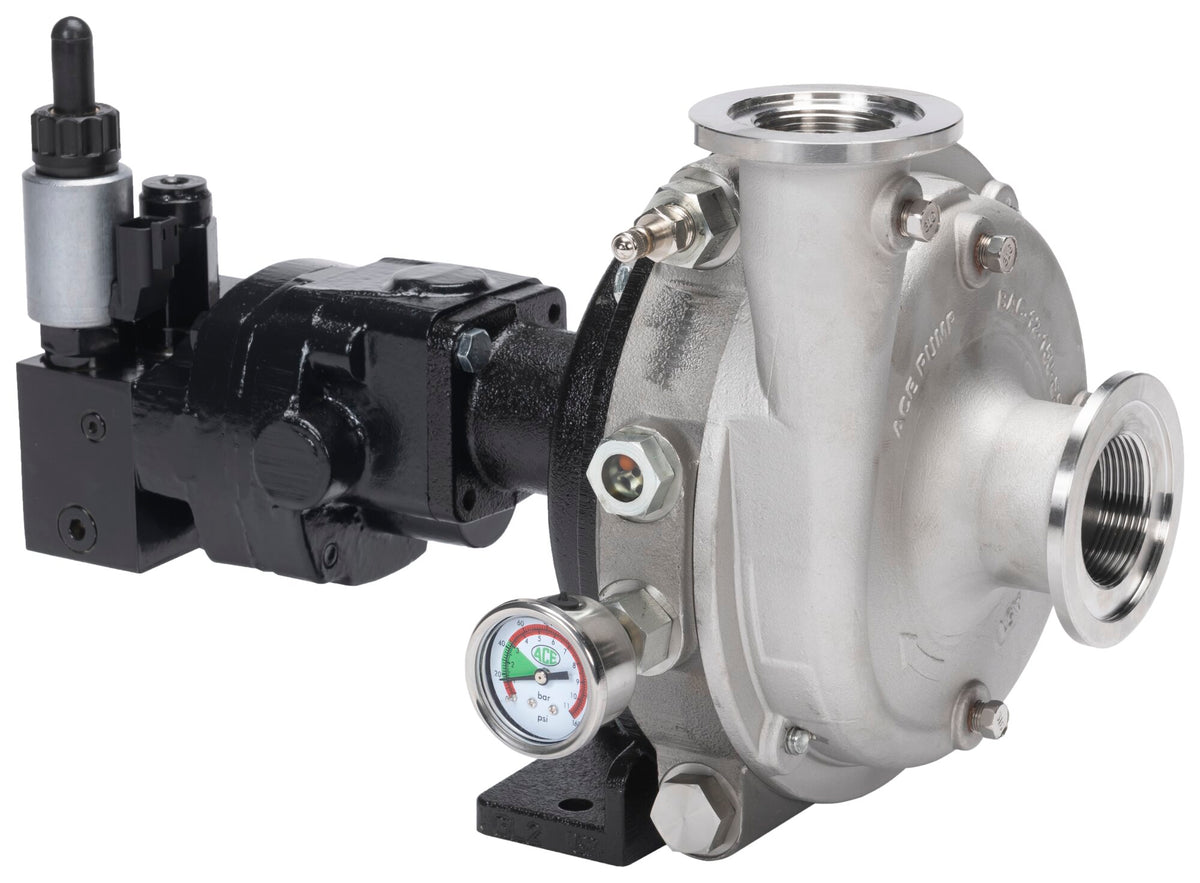

FMCWS-155FS-HYD-304-PWM hydraulic-driven centrifugal pump, 1.5" x 1.25" ports, Oasis WetSeal barrier-fluid seal technology, proportional (PWM) hydraulic flow control compatible, flanged connections. Flow rate up to 155 GPM at 130 PSI. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug | 4 |
| 1 | 41120 | Pipe plug, stainless steel (optional) | 4 |
| 2A | BAC-12-150-FLG-EC | Volute, cast iron, NPT and flanged, E-coated | 1 |
| 2B | BAC-12-150-FLG-SS | Volute, stainless steel, NPT and flanged | 1 |
| 3 | BAC-4-150 | O-ring, body seal | 2 |
| 4 | BAC-23-B-SS | Nut, 3/8" NF, SS | 1 |
| 5 | BAC-24-B-SS | Washer, 3/8" SS, vibration proof | 1 |
| 6 | BAC-26-155-P | Impeller, thermoplastic, keyway | 1 |
| 7 | 72762 | Bolt, 5/16"-18 x 1-1/4", socket head, SS | 4 |
| 8A | BAC-16 | Seal plate, cast iron, e-coated | 1 |
| 8B | BAC-16-SS | Seal plate, stainless steel | 1 |
| 9 | 41107 | Bushing, #8 SAE x 1/4" FNPT, w/ o-ring | 2 |
| 10 | 41316 | Air valve, 1/4" NPT | 1 |
| 11 | BAC-7-WS | Seal, dual seal assembly, Type 21, 5/8" shaft | 1 |
| 12 | BAC-14-5-HYD | Mounting frame, cast iron, e-coated | 1 |
| 13 | BAC-42 | Cap screw, 5/16"-16 x 2", hex head | 4 |
| 14 | 55851 | Sight gauge, #8 SAE, with o-ring | 1 |
| 15 | 50150 | Pressure gauge, 0-160 PSI, 1/4" NPT | 1 |
| 16 | 41108 | Plug, #8 SAE, hex head | 1 |
| 17 | BAC-54 | Slinger | 1 |
| 18 | BACH-33 | Snap ring, internal, mounting frame | 2 |
| 19 | BACH-32-HD | Snap ring, external, shaft | 3 |
| 20 | 40880 | Bearing | 2 |
| 21 | BAC-6-125-HYD-SS-WS | Shaft, .625 DIA, 125-155, SS, WS | 1 |
| 22 | BACH-25 | Key, 1/8" x 1/8" x 7/16" SS | 1 |
| 34 | 55032 | Barrier fluid, quart | - |
Hydraulic Motor
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 24C | BAC-75-HYD-304-PWM | Hydraulic motor, integrated PWM valve, 9 GPM | 1 |
| 25 | 41875 | O-ring, #8 SAE fitting | 2 |
| 26 | BAC-80-8SAE | Body, restrictor orifice, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 27 | BAC-78-8SAE | Reverse check assembly, #8 SAE x 1/2"NPT, w/ O-ring | 1 |
| 27A | BAC-78-10X8SAE | Reverse check assembly, #8 SAE x #10 SAE, w/ O-ring | 1 |
| 27B | BAC-78-10X10SAE | Reverse check assembly, #10 SAE x #10 SAE, w/ O-ring | 1 |
| 28 | 41448 | O-ring, restrictor | 1 |
| 33 | 41445 | O-ring, #10 SAE | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-FMCWS-PRO5 | Repair Kit Assembly, PRO5 Wetseal Models |
| RK-BAC-75-HYD-300-L | Repair Kit Assembly, 300 Hydraulic Motor |
Parts per Ace Pump Corporation product sheet FMCWS-155F-HYD (Pro 5 WetSeal). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
