    FMCWS-650F-HYD-LM — Pump, Hydraulic, Wet Seal, Flanged

    FMCWS-650F-HYD-LM — Pump, Hydraulic, Wet Seal, Flanged

    $1,875.00 USD
    $3,125.00 USD $1,875.00 USD
    Sale
    Shipping calculated at checkout.
    Title

    Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.

    Questions on fitment? Need a different size or quantity?

    Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
    (509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
    Request a quote or ask about this part by email

    Part: APFMCWS-650F-HYD-LM — we'll include the part number and link with your message.

    🧑‍🔧
    Ask Dusty Parts Expert
    Get an instant answer on “FMCWS-650F-HYD-LM — Pump, Hydraulic, Wet Seal, Flanged” — fitment, alternatives, or what else you need

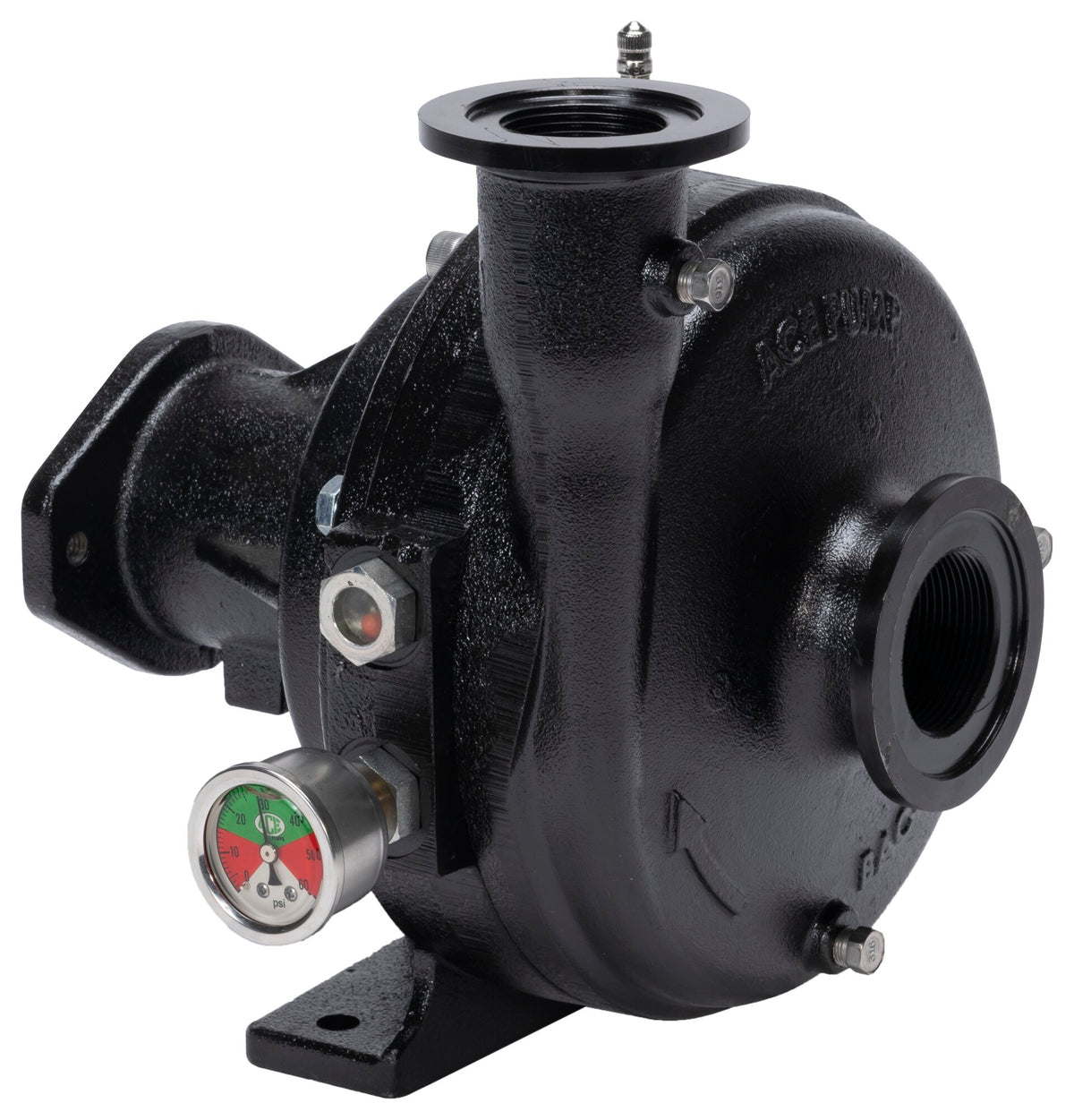

    FMCWS-650F-HYD-LM hydraulic-driven centrifugal pump, 220 x 200 flange ports, Oasis WetSeal barrier-fluid seal technology, sold less hydraulic motor. Flow rate up to 170 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug, 1/8" NPT, hex head 3
    2 BAC-12-650-FLG Volute, NPT & 220 flange x NPT & 200 flange 1
    3 BAC-4-150 O-ring, volute seal 2
    4 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
    5 30029 Washer, 3/8" I.D., sealing, stainless steel 1
    6 BAC-26-650-WS Impeller, cast iron, e-coated, wetseal 1
    7 BAC-16-650-A Seal plate, cast iron, e-coated (effective 3/17 - see Update 20) 1
    8 41107 Bushing, #8 SAE x 1/4" FNTP, hex, with O-ring 1
    9 41316 Air valve, 1/4" NPT 1
    10 BAC-7-650-WS Seal, dual seal assembly, Type 21, .750 shaft 1
    11 41108 Plug, #8 SAE, hex head, with O-ring 1
    12 44039 Bushing, #8 SAE x 1/8" FNPT 1
    12 44038 Bushing, 1/2" MNPT x 1/8" FNPT (prior to 11/11) 1
    13 50150 Gauge, pressure, 0-60 PSI, 1/8" NPT 1
    14 55851 Gauge, sight, #8 SAE, with float 1
    14 55850 Gauge, sight, brass, 1/2" NPT (prior to 11/11) 1
    15 BAC-14-650-HYD-WS Mounting frame, cast iron, e-coated (effective 3/17 for F models - see Update 20) 1
    16 41907 Cap screw, 3/8" NC x 1", socket head, stainless steel (seal plate) 4
    17 BAC-42 Cap screw, 3/8" NC x 2" hex head (volute) 4
    18 GE-54-660 Slinger, 1.25" OD x .75" ID 1
    19 41943 Snap ring, internal, mounting frame 2
    20 ACAL-32 Snap ring, external, shaft 2
    21 40875 Bearing, FMC-650 models 2
    22 41085 Key, .188 x .188 x .875 1
    23 BAC-6-650-HYD-SS-WS Shaft, 11T female spline, stainless steel 1
    24 BAC-32-650-WS Spacer, shaft 1
    *35 55032 Barrier fluid, quart 0.6

    Repair Kits

    Kit No. Description
    RK-FMCWS-650 Repair Kit Assembly, 650 Wetseal Models

    This model is supplied less hydraulic motor; motor parts are not listed.

    Parts per Ace Pump Corporation product sheet FMCWS-650F-HYD / FMCWS-650FS-HYD (rev 09/17). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
