    Ace Pumps

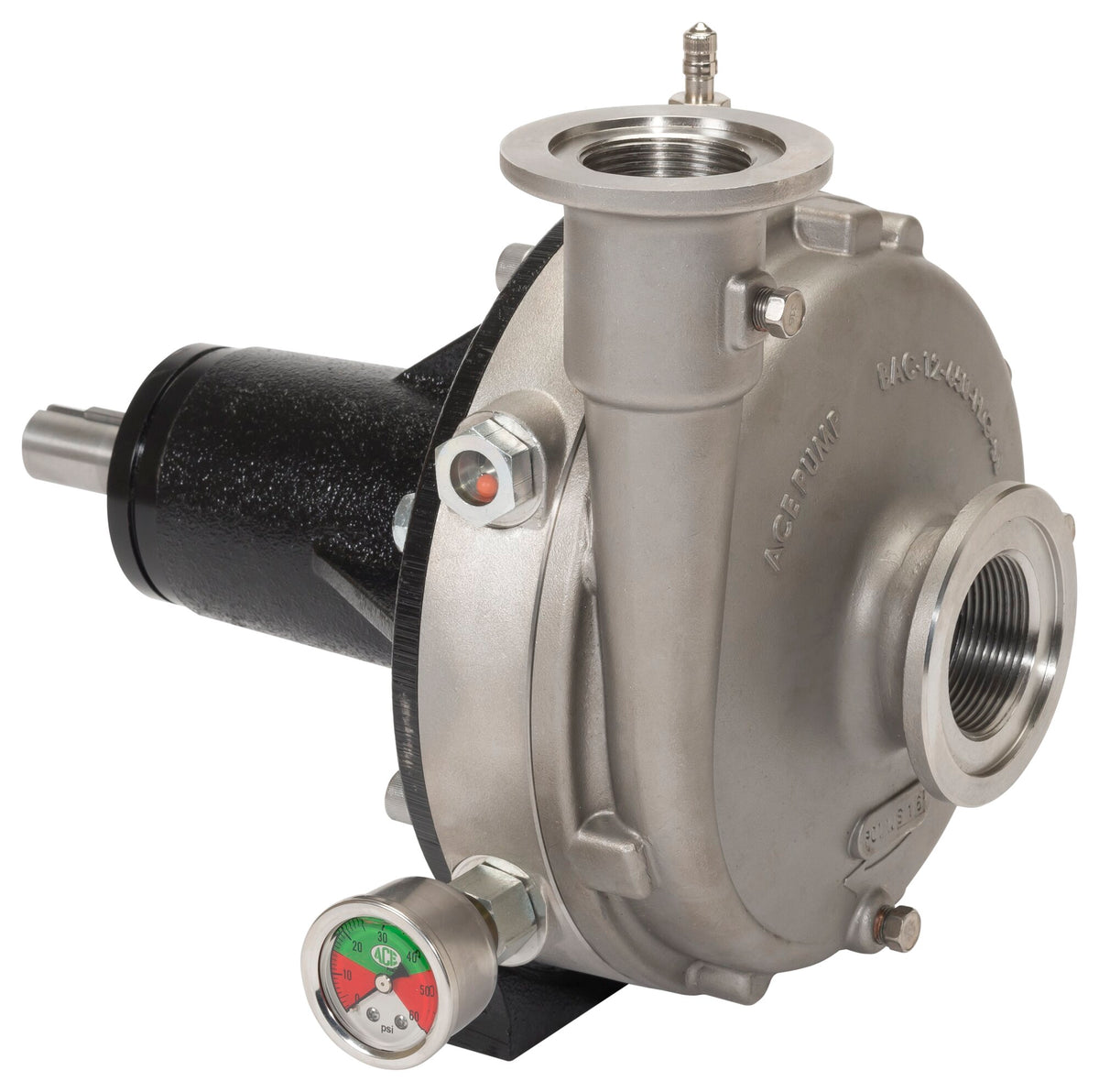

    FMCWS-650FS — Pump, 1.5"x1.25"x6.5" Stainless Steel Flange, Wet Seal

    FMCWS-650FS — Pump, 1.5"x1.25"x6.5" Stainless Steel Flange, Wet Seal

    $2,526.60 USD
    $4,211.00 USD $2,526.60 USD
    Sale
    Shipping calculated at checkout.
    Title

    Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.

    Questions on fitment? Need a different size or quantity?

    Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
    (509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
    Request a quote or ask about this part by email

    Part: APFMCWS-650FS — we'll include the part number and link with your message.

    🧑‍🔧
    Ask Dusty Parts Expert
    Get an instant answer on “FMCWS-650FS — Pump, 1.5"x1.25"x6.5" Stainless Steel Flange, Wet Seal” — fitment, alternatives, or what else you need

    FMCWS-650FS belt driven centrifugal pump, 1.5" x 1.25" ports, Oasis WetSeal barrier-fluid seal technology, flanged connections. Flow rate up to 140 GPM at 160 PSI. For agricultural spraying and liquid transfer applications.

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53 Pipe plug, 1/8" NPT 3
    1 41120 Pipe plug, 1/8" NPT, stainless steel (optional) 3
    2 BAC-12-650-FLG Volute, NPT & 220 flange x NPT & 200 flange, e-coated cast-iron 1
    2 BAC-12-650-FLG-SS Volute, NPT & 220 flange x NPT & 200 flange, stainless steel (optional) 1
    3 BAC-4-150 O-ring, volute seal 2
    4 40930 Cap screw, 3/8" NC x 3/4" hex head, stainless steel 1
    5 30029 Washer, 3/8" I.D., sealing, stainless steel 1
    6 BAC-26-650-WS Impeller, cast iron, wetseal, e-coated 1
    6 BAC-26-650-WS-SS Impeller, stainless steel, wetseal (optional) 1
    7 BAC-16-650 Seal plate, cast iron, e-coated 1
    7 BAC-16-650-SS Seal plate, stainless steel (optional) 1
    8 41107 Bushing, #8 SAE x 1/4" FNTP, hex, with O-ring 1
    9 41316 Air valve, 1/4" NPT 1
    10 41108 Plug, #8 SAE, hex head, with O-ring 1
    11 44039 Bushing, #8 SAE x 1/8" FNPT 1
    12 50150 Gauge, pressure, 0-60 PSI, 1/8" NPT 1
    13 55851 Gauge, sight, #8 SAE, with float 1
    14 BAC-7-650-WS Seal, dual seal assembly, Type 21, .750 shaft 1
    15 BAC-14-650-HYD Mounting frame, cast iron, e-coated 1
    16 41907 Cap screw, 3/8" NC x 1", socket head, stainless steel (seal plate) 4
    17 BAC-42 Cap screw, 3/8" NC x 2" hex head (volute) 4
    18 GE-54-660 Slinger, 1.25" OD x .75" ID 1
    19 ACAL-32 Snap ring, external, shaft 2
    20 41943 Snap ring, internal, mounting frame 2
    21 40875 Bearing, FMC-650 models 2
    22 BAC-32-650 Spacer, shaft 1
    23 41085 Key, .188 x .188 x .875 1
    24 BAC-6-650-SS-WS Shaft, stainless steel, 1" keyed 1
    25 BAC-50 Key, 3/16" x 3/16" x 1-1/4" 1
    *26 55032 Barrier fluid, quart 0.45

    Repair Kits

    Kit No. Description
    RK-FMCWS-650 Repair Kit Assembly, 650 Wetseal Models

    Parts per Ace Pump Corporation product sheet FMCWS-650F / FMCWS-650FS (rev 09/17). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
