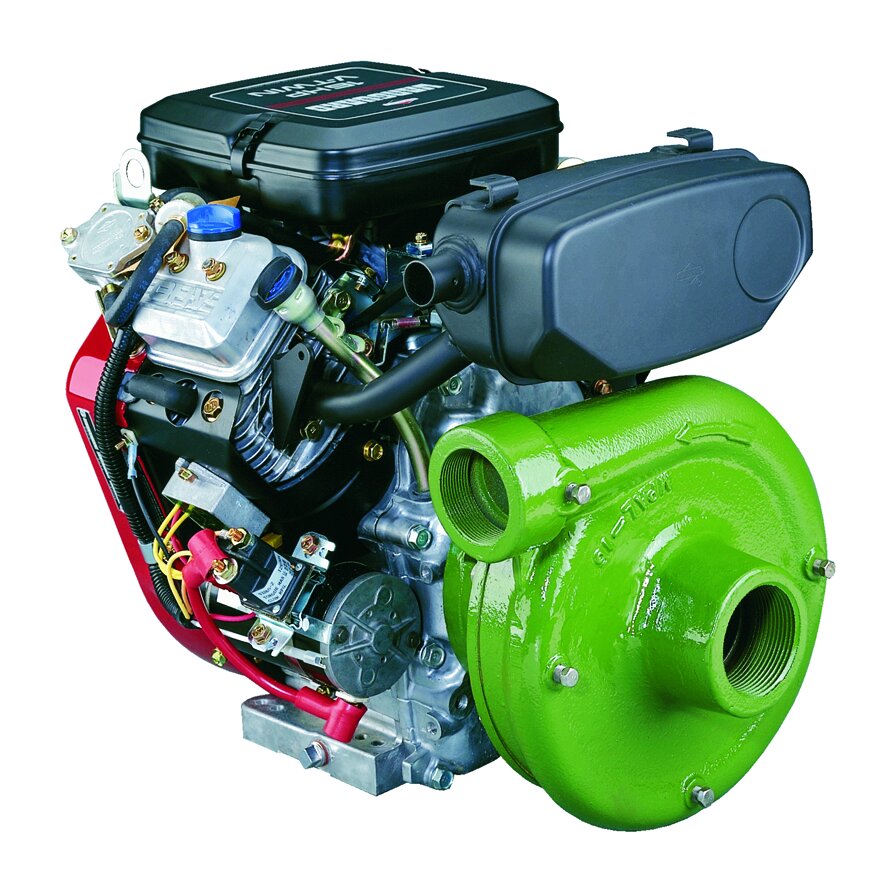

• Ace GE-1600 pump

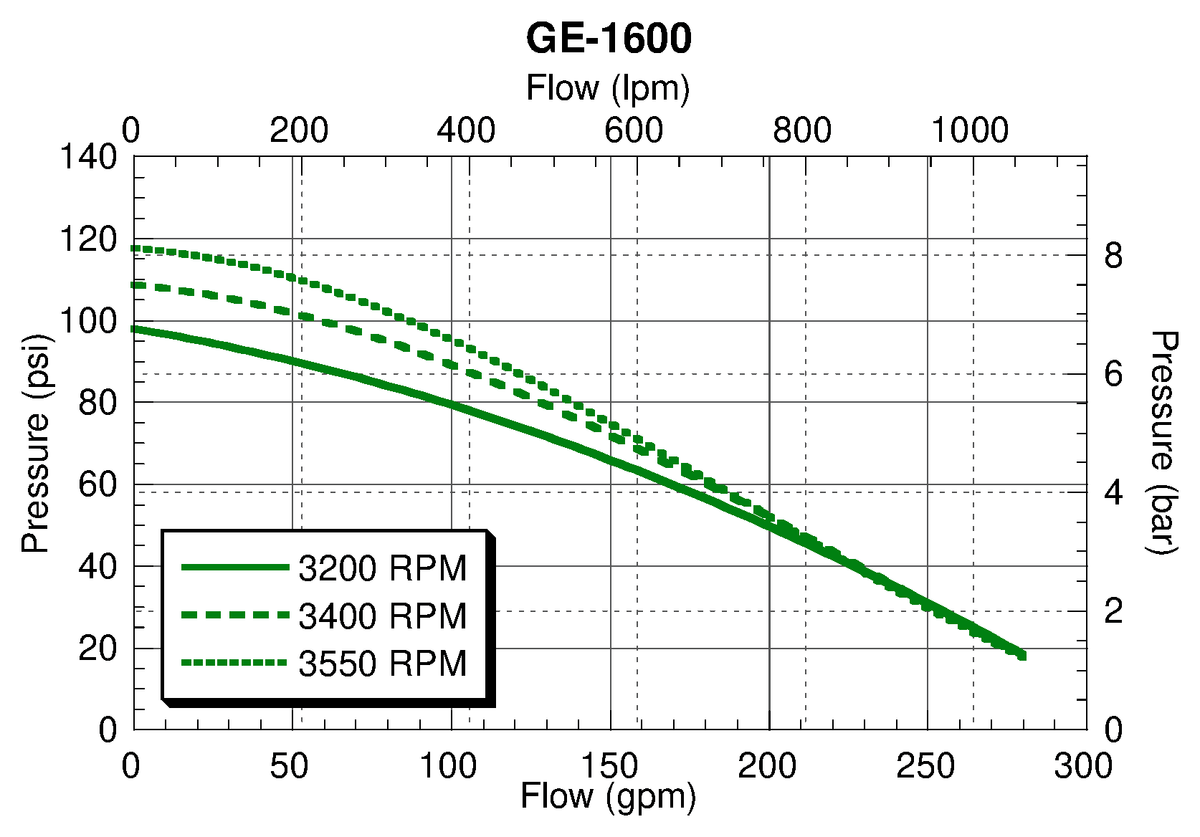

  • Ace GE-1600 performance curve — pressure (psi) vs. flow (gpm)

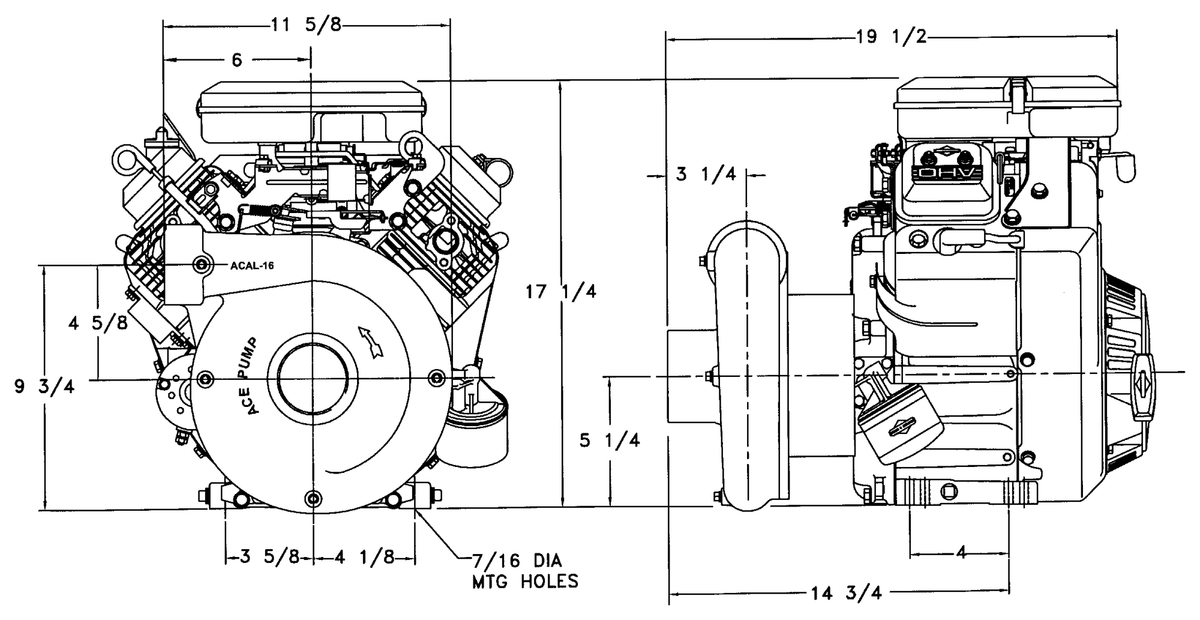

  • Ace GE-1600 dimension drawing

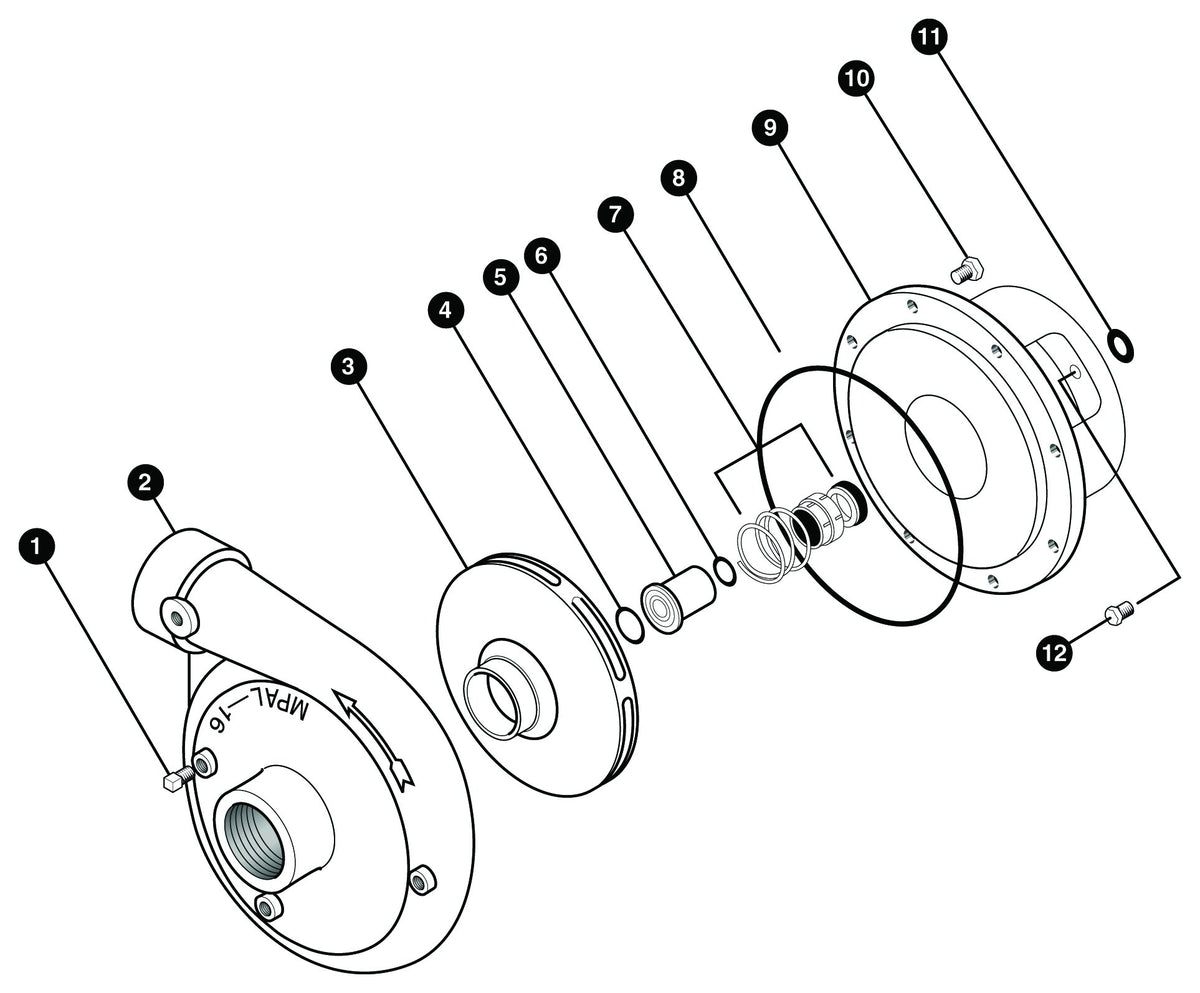

  • Ace GE-1600 exploded parts view
1 4

Ace Pumps

GE-1600-VANGUARD-EC — Pump, Gas Engine

GE-1600-VANGUARD-EC — Pump, Gas Engine

$6,813.00 USD
$9,084.00 USD $6,813.00 USD
Below list
Shipping calculated at checkout.

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APGE-1600-VANGUARD-EC — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “GE-1600-VANGUARD-EC — Pump, Gas Engine” — fitment, alternatives, or what else you need

GE-1600 gasoline-engine-driven centrifugal pump, e-coat finish, 2.5" x 2" ports, 16-20 HP Vanguard engine (16 HP electric start standard). Flow rate up to 280 GPM at 120 PSI. All-iron construction with double o-ring seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.

Specs & Downloads

The photo shows the GE-1600. The GE-1600-VANGUARD-EC is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting; an exploded view with numbered callouts that follow Ace's parts list. Click any image to zoom.

Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
