Ace Pumps
GE-75-LE
GE-75-LE
Regular price
$316.50 USD
Regular price
$422.00 USD
Sale price
$316.50 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The GE-75-LE is a Ace gas engine driven centrifugal pump — all polypropylene, less engine, rated at 24 GPM and 65 psi.

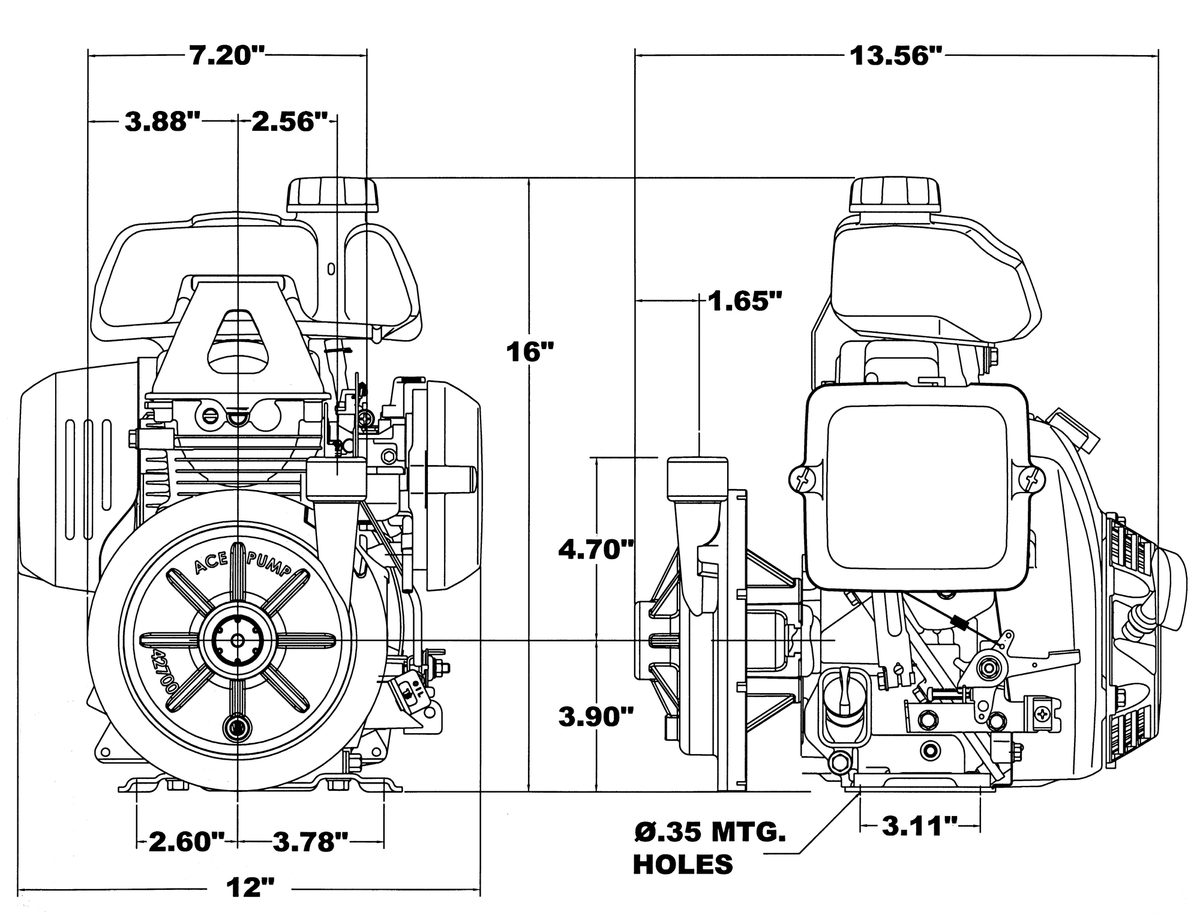

Specifications
| Max flow | 24 GPM |
|---|---|
| Max pressure | 65 psi |
| Suction | 1" NPT |
| Discharge | 3/4" NPT |
| Construction | All polypropylene |
| Max fluid temperature | 140 F |
| Drive | Less engine — pump head only |
| Seal | Viton carbon/ceramic (standard) |

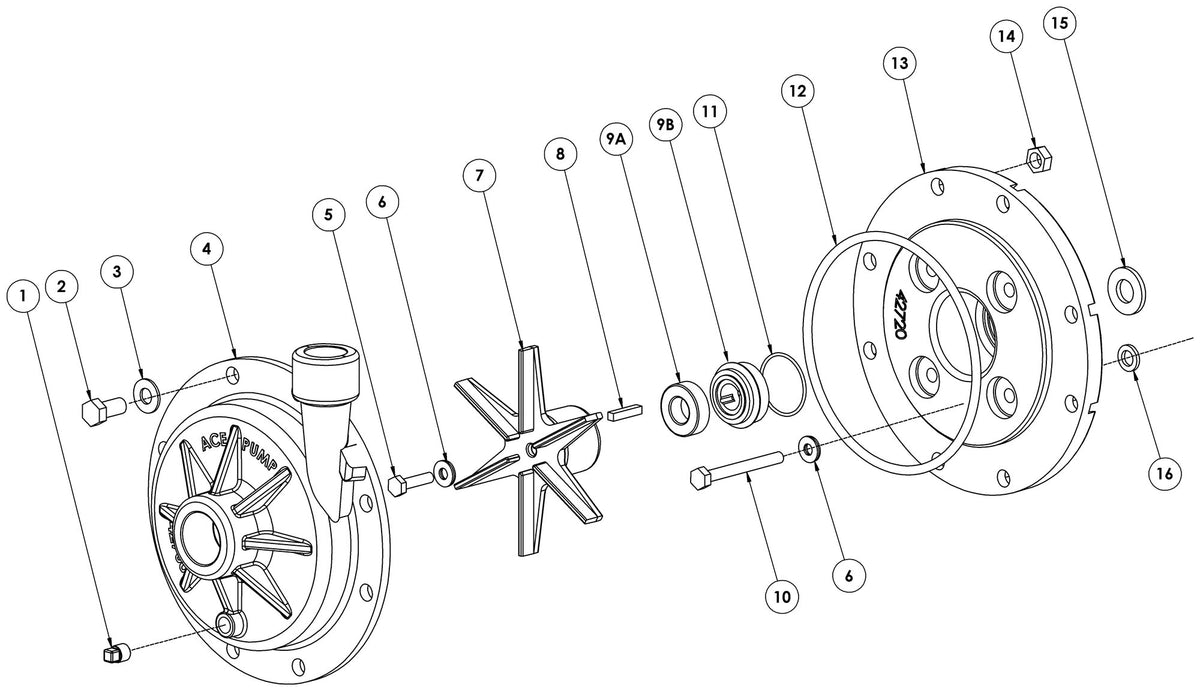

Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53-P | Pipe plug, 1/8" NPT, plastic | 1 |
| 2 | 80250 | Cap screw, 3/8"-16 x 7/8", hex head | 8 |
| 3 | 42701 | Washer, 3/8" flat | 8 |
| 4 | GE-12-75 | Volute, 3/4" x 1", polypropylene | 1 |
| 5 | 42240 | Cap screw, 1/4"-28 x 1", hex, stainless steel | 1 |
| 6 | 30028 | Washer, sealing | 5 |
| 7 | GE-26-75 | Impeller, with keyway, polypropylene | 1 |
| 8 | 41082 | Key, 3/16" x 3/16" x 15/16" | 1 |
| 9 | BAC-7-75V | Seal, 5/8", carbon/ceramic/Viton | 1 |
| 9 | BAC-7SC-75V | Seal, 5/8", silicon carbide/Viton (optional) | 1 |
| 11 | 40159 | O-ring, shaft seal | 1 |
| 12 | 40017 | O-ring, volute seal | 1 |
| 13 | GE-14-75 | Bracket, polypropylene | 1 |
| 14 | BAC-45 | Nut, hex, 3/8" | 8 |
| 15 | BAC-54 | Slinger | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-GE-75 | Repair kit, GE-75 series |
Parts and specifications per Ace Pump Corporation product sheet GE-75 06-16.
