    GE-85-LE — Pump, Engine Driven, 3/4"x1", Poly

    GE-85-LE — Pump, Engine Driven, 3/4"x1", Poly

    $316.50 USD
    $422.00 USD $316.50 USD
    Sale
    Shipping calculated at checkout.
    Title

    Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
    Special-order items may be non-returnable.

    Questions on fitment? Need a different size or quantity?

    Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
    (509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
    Request a quote or ask about this part by email

    Part: APGE-85-LE — we'll include the part number and link with your message.

    🧑‍🔧
    Ask Dusty Parts Expert
    Get an instant answer on “GE-85-LE — Pump, Engine Driven, 3/4"x1", Poly” — fitment, alternatives, or what else you need

    GE-85 gasoline-engine-driven centrifugal pump, less engine (pump only), 3/4" x 1" ports, 3/4" keyed shaft for direct engine coupling. Flow rate up to 24 GPM at 65 PSI. Tall-blade polypropylene impeller with replaceable mechanical seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.

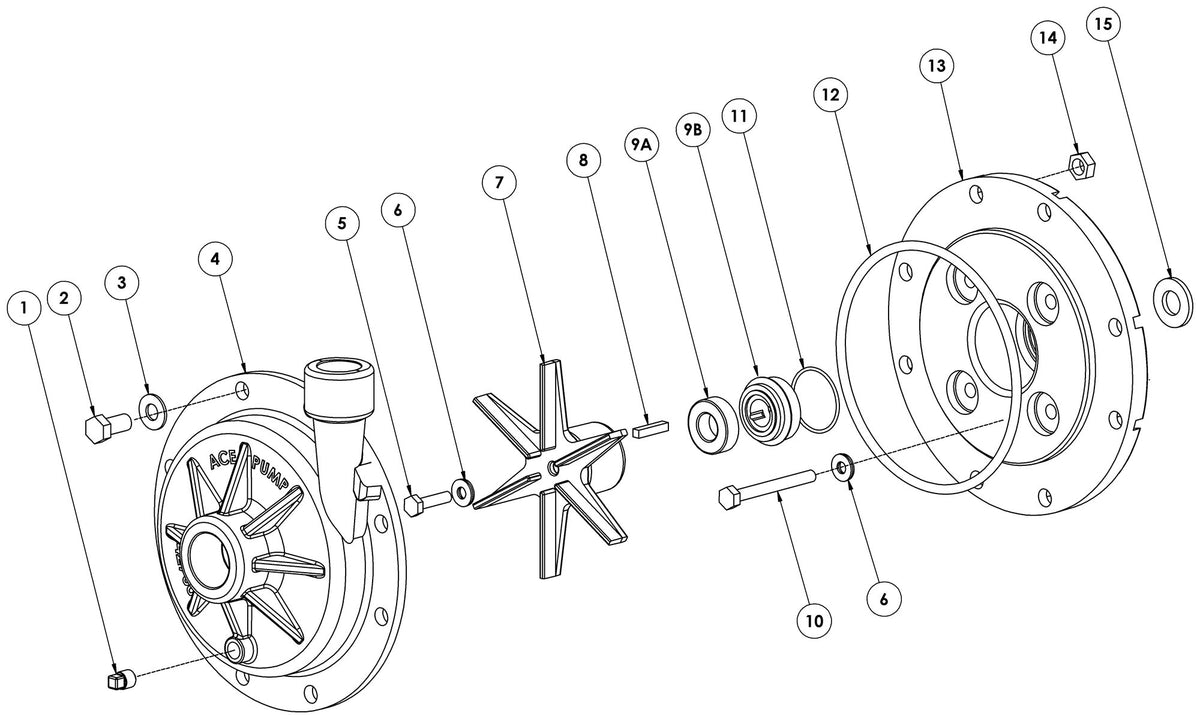

    Service Parts

    Ref. Part No. Description Qty
    1 BAC-53-P Pipe plug, 1/8" NPT, plastic 1
    2 80250 Cap screw, 3/8"-16 x 7/8", hex head 8
    3 42701 Washer, 3/8" flat 8
    4 GE-12-75 Volute, 3/4" x 1", polypropylene 1
    5 GE-60-SS Cap screw, 5/16"NF x 3/4", hex, stainless steel 1
    6 30028 Washer, sealing 5
    7 GE-26-85 Impeller, with keyway, polypropylene 1
    8 41082 Key, 3/16" x 3/16" x 15/16" 1
    9 BAC-7-660V Seal, 3/4", carbon/ceramic/Viton type rubber 1
    9 BAC-7SC-660V Seal, 3/4", silicon carbide/Viton (optional) 1
    10 42238 Cap screw, 5/16"NF x 2-1/4" 4
    11 40159 O-ring, shaft seal, GE-85 1
    12 40017 O-ring, volute seal, GE-85 1
    13 GE-14-85 Bracket, GE-85, polypropylene 1
    14 BAC-45 Nut, hex, 3/8" 8
    15 BAC-54 Slinger 1
    30035 Thread locker, removable 1

    Repair Kits

    Kit No. Description
    RK-GE-85 Repair Kit Assembly, GE-85

    Parts per Ace Pump Corporation product sheet GE-85 Polypropylene Gas Engine Driven Centrifugal Pump (6-16). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
