    Ace Pumps

    GE-85SP-KOHLER-ES — Pump, Gas Engine, 3/4"x1", Poly, Self Priming

    GE-85SP-KOHLER-ES — Pump, Gas Engine, 3/4"x1", Poly, Self Priming

    $1,773.60 USD
    $2,956.00 USD $1,773.60 USD
    Sale
    Shipping calculated at checkout.
    Title

    Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
    Special-order items may be non-returnable.

    Questions on fitment? Need a different size or quantity?

    Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
    (509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
    Request a quote or ask about this part by email

    Part: APGE-85SP-KOHLER-ES — we'll include the part number and link with your message.

    🧑‍🔧
    Ask Dusty Parts Expert
    Get an instant answer on “GE-85SP-KOHLER-ES — Pump, Gas Engine, 3/4"x1", Poly, Self Priming” — fitment, alternatives, or what else you need

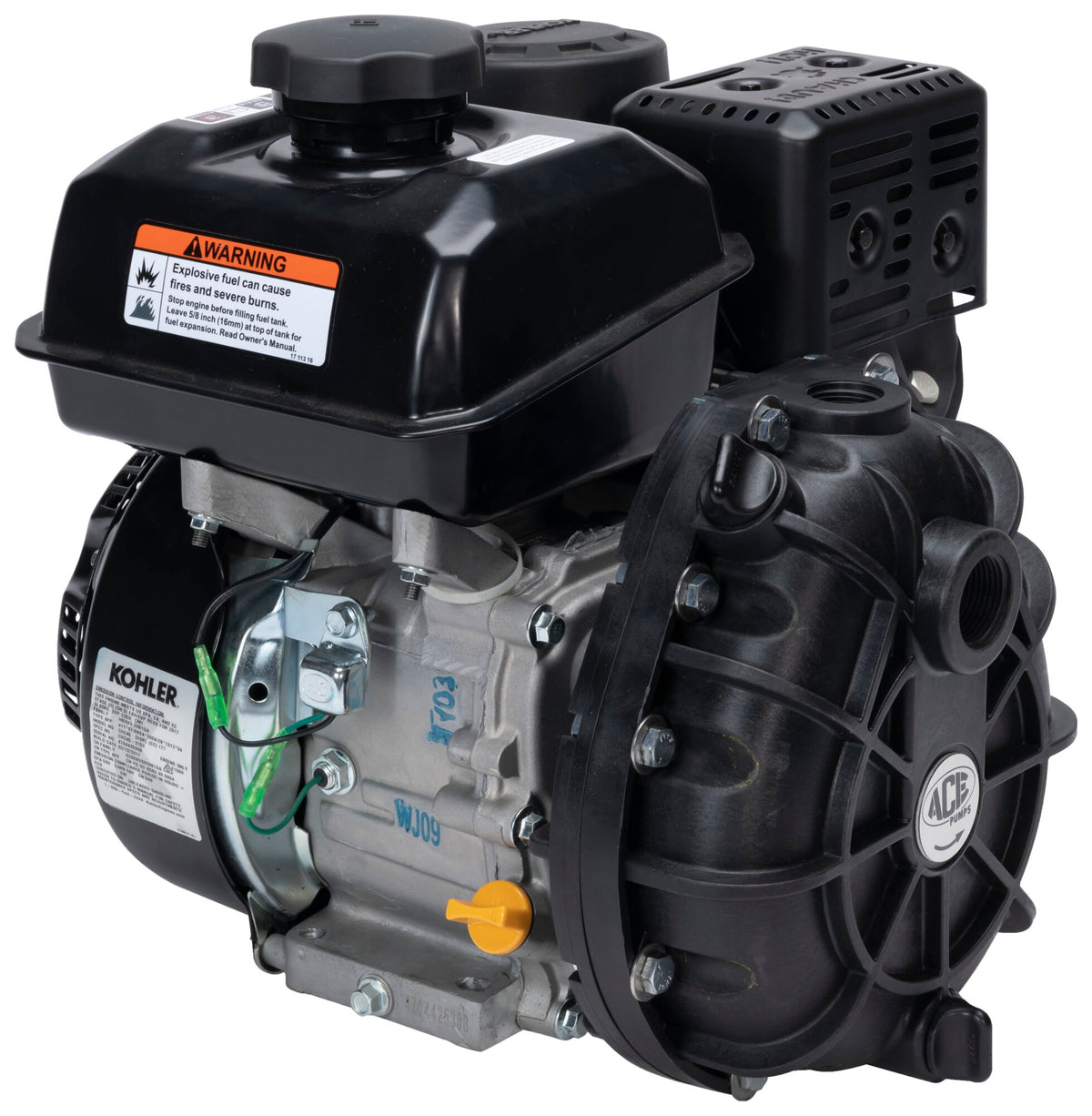

    GE-85SP self-priming, gasoline-engine-driven centrifugal pump, 3/4" x 1" ports, Kohler engine with 3/4" keyed shaft and electric start. Flow rate up to 24 GPM at 65 PSI. Tall-blade polypropylene impeller with replaceable mechanical seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.

    Service Parts

    Ref. Part No. Description Qty
    1 42237 Cap screw, 5/16"-18 x 1-3/8", hex head 10
    2 20730 Washer, 5/16", flat, volute to bracket 10
    3 GE-12-75SP Volute, 3/4" x 1", polypropylene (includes two plugs) 1
    4 GE-60-SS Cap screw, 5/16" NF x 3/4", hex head, stainless steel 1
    5 30028 Washer, sealing, stainless steel 5
    6 GE-26-85 Impeller with keyway, polypropylene 1
    7 41082 Key, 3/16" x 3/16" x 15/16" 1
    8 BAC-7-660V Shaft seal, carbon/ceramic/FKM (includes O-ring) 1
    8 BAC-7SC-660V Shaft seal, silicon carbide/FKM (includes O-ring) 1
    9 40159 O-ring, shaft seal, GE-85 1
    10 40014 O-ring, volute seal, GE-85SP 1
    11 GE-14-85SP Bracket, GE-85SP, polypropylene 1
    12 42270 Nut, hex, 5/16"-18 10
    13 BAC-54 Slinger 1
    14 41122 Plug, volute (includes O-ring) 2
    15 40191 O-ring, fill and drain plug 2
    16 42238 Cap screw, 5/16" NF x 2-1/2", stainless steel 4
    * 30035 Thread locker, removable 1

    Engine

    Ref. Part No. Description Qty
    * 42076 Engine, 4.5 HP Kohler CH245-3152

    Repair Kits

    Kit No. Description
    RK-GE-85SP Repair Kit Assembly, GE-85SP

    Parts per Ace Pump Corporation product sheet GE-85SP self-priming polypropylene gas engine driven centrifugal pump (03-21). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
