GE-860-LE — Pump Only, 2"x1-1/2", Keyed Shaft
GE-860-LE — Pump Only, 2"x1-1/2", Keyed Shaft
Regular price
$1,296.75 USD
Regular price
$1,729.00 USD
Sale price
$1,296.75 USD
Unit price
per
Shipping calculated at checkout.
Questions on fitment? Need a different size or quantity?
Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209
Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email
🧑🔧
Ask Dusty
Parts Expert
Get an instant answer on “GE-860-LE — Pump Only, 2"x1-1/2", Keyed Shaft” — fitment, alternatives, or what else you need

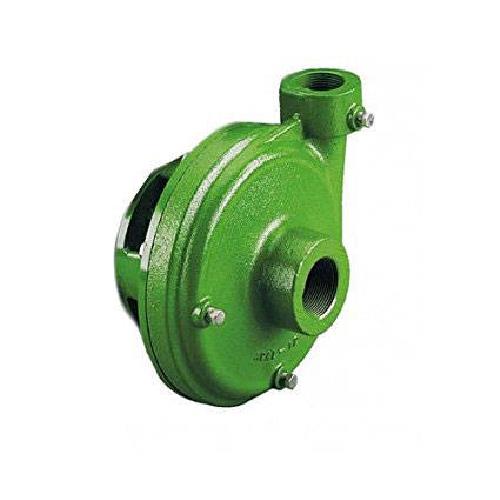

GE-860 gasoline-engine-driven centrifugal pump, less engine (pump only), 2" x 1.5" ports, 1" keyed shaft for direct engine coupling (optional electric start). Flow rate up to 140 GPM at 140 PSI. All-iron construction with double o-ring seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT | 3 |
| 1 | 41120 | Pipe plug, 1/8" NPT, stainless steel | 3 |
| 2 | ACAL-14 | Volute, 2" x 1-1/2", cast iron | 1 |
| 3 | ACAL-26-860 | Impeller, GE-860, cast iron with keyway | 1 |
| 4 | 41083 | Key, 1/4" x 1/4" x 7/8" | 1 |
| 5 | 41865 | O-Ring, impeller | 1 |
| 6 | 42108 | Shaft sleeve, GE-860, stainless steel | 1 |
| 7 | TYPE 21-1.250-V60 | Seal, 1.25" Type 21 mechanical, Viton | 1 |
| 7 | TYPE 21-1.250-V60-SG | Seal, 1.25" Type 21, silicon graphite/Viton | 1 |
| 8 | ACAL-4 | O-Ring gasket for ACAL-14 volute | 1 |
| 9 | ACAL-88 | Bracket, cast iron | 1 |
| 10 | 40950 | Cap screw, 3/8" NC x 3/4" | 8 |
| 10 | 40930 | Cap screw, 3/8" NC x 3/4", stainless steel | 8 |
| 11 | GE-54 | Slinger, 1" ID x 1-5/8" OD x 1/8" | 1 |
| 12 | 30022 | Cap screw, 7/16"-20 UNF x 1-1/4", stainless steel | 1 |
| 13 | 30023 | Washer, 7/16" sealing | 1 |
| 14 | GE-60-SS | Cap screw, 5/16" NF x 3/4", stainless steel | 4 |
| 15 | 30028 | Washer, 5/16" sealing, stainless steel | 4 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-GE-860/1660 | Repair Kit Assembly |
Parts per Ace Pump Corporation product sheet GE-860 High Performance Gas Engine Driven Centrifugal Pump (09-15). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
