GESG-800-HONDA — Pump, Gas Engine, Silicon Graphite Seal
GESG-800-HONDA — Pump, Gas Engine, Silicon Graphite Seal
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
GE-800 gasoline-engine-driven centrifugal pump, 2" x 1.5" ports, 8-10 HP Honda engine with 1" NF threaded shaft. Flow rate up to 140 GPM at 140 PSI. All-iron construction with double o-ring silicon graphite seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | ACAL-7-SS | Shaft sleeve, GE-800, stainless steel | 1 |
| 2 | ACAL-143 | Bracket, cast iron | 1 |
| 3 | ACAL-26-TH | Impeller, GE-800, cast iron | 1 |
| 4 | ACAL-14 | Volute, 2" x 1 1/2" | 1 |
| 5 | TYPE 21-1.25 | Seal, 1.25" Type 21 mechanical seal, Viton | 1 |
| 5 | TYPE 21-1.25-SG | Seal, 1.25" Type 21, silicon graphite/Viton | 1 |
| 6 | ACAL-4 | O Ring gasket for ACAL-14 volute | 1 |
| 6 | 9000 | Gasket, 8 hole | 1 |
| 7 | BAC-39 | Cap screw, 3/8" NC x 3/4" | 8 |
| 7 | BAC-39-SS | Cap screw, 3/8" NC x 3/4", stainless steel | 8 |
| 8 | BAC-53 | 1/8" NPT Pipe plug | 3 |
| 8 | 41120 | 1/8" NPT Pipe plug, stainless steel | 3 |
| 9 | 41860 | O Ring, engine shaft | 1 |
| 11 | GE-55 | Slinger | 1 |
| 12 | SP-62 | Cap screw, 5/16" NF x 1" | 4 |
| 12A | GE-44 | Lock washer, 5/16" | 4 |
| 13 | 72990 | O Ring, shaft sleeve seal | 1 |
Engine
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 10 | 42066 | Gas engine, 8 HP Honda, pull start | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-GE-800/1600-SG | Repair Kit Assembly, Silicon Graphite Seal |
This model has the silicon graphite shaft seal — use the silicon graphite seal and kit shown.
Parts per Ace Pump Corporation product sheet GE-800 High Performance Gas Engine Drive Centrifugal Pump (05-11). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads

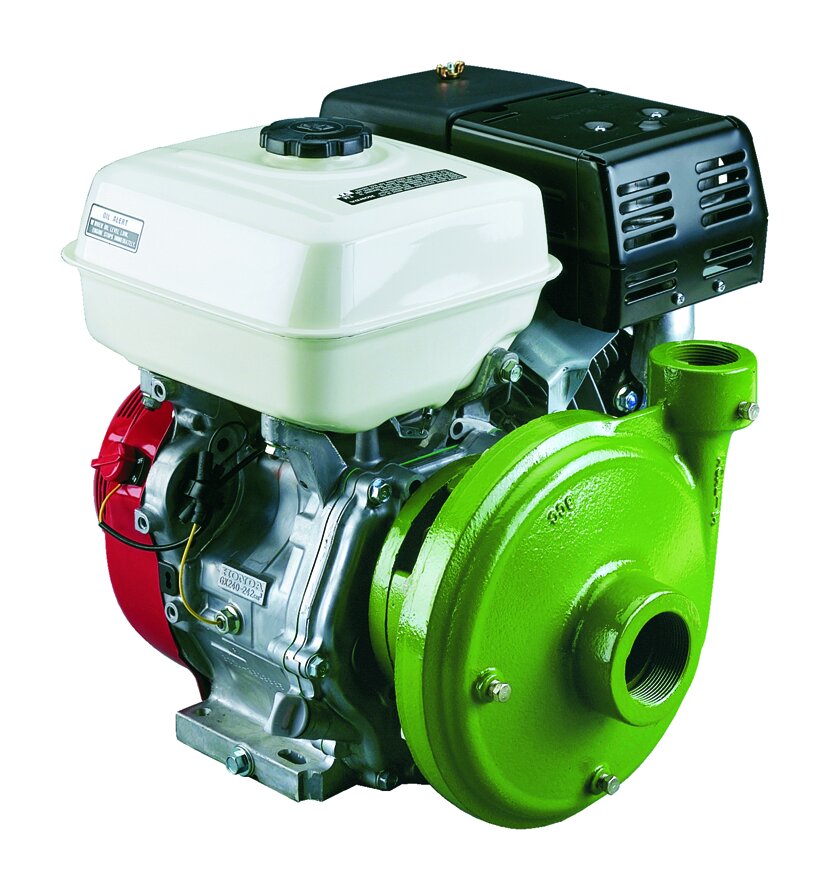

The photo shows the GE-800-HONDA. The GESG-800-HONDA is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.
The image gallery includes a performance curve (pressure vs. flow); a dimension drawing for mounting. Click any image to zoom.
