GESG-860-HONDA — Pump, Gas Engine, 2" x 1-1/2", Ks
GESG-860-HONDA — Pump, Gas Engine, 2" x 1-1/2", Ks
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
GE-860 gasoline-engine-driven centrifugal pump, 2" x 1.5" ports, 8-10 HP Honda engine with 1" keyed shaft. Flow rate up to 140 GPM at 140 PSI. All-iron construction with double o-ring silicon graphite seal and slinger ring to protect the engine from liquid contamination. For agricultural spraying and liquid transfer applications.
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | BAC-53 | Pipe plug, 1/8" NPT | 3 |
| 1 | 41120 | Pipe plug, 1/8" NPT, stainless steel | 3 |
| 2 | ACAL-14 | Volute, 2" x 1-1/2", cast iron | 1 |
| 3 | ACAL-26-860 | Impeller, GE-860, cast iron with keyway | 1 |
| 4 | 41083 | Key, 1/4" x 1/4" x 7/8" | 1 |
| 5 | 41865 | O-Ring, impeller | 1 |
| 6 | 42108 | Shaft sleeve, GE-860, stainless steel | 1 |
| 7 | TYPE 21-1.250-V60 | Seal, 1.25" Type 21 mechanical, Viton | 1 |
| 7 | TYPE 21-1.250-V60-SG | Seal, 1.25" Type 21, silicon graphite/Viton | 1 |
| 8 | ACAL-4 | O-Ring gasket for ACAL-14 volute | 1 |
| 9 | ACAL-88 | Bracket, cast iron | 1 |
| 10 | 40950 | Cap screw, 3/8" NC x 3/4" | 8 |
| 10 | 40930 | Cap screw, 3/8" NC x 3/4", stainless steel | 8 |
| 11 | GE-54 | Slinger, 1" ID x 1-5/8" OD x 1/8" | 1 |
| 12 | 30022 | Cap screw, 7/16"-20 UNF x 1-1/4", stainless steel | 1 |
| 13 | 30023 | Washer, 7/16" sealing | 1 |
| 14 | GE-60-SS | Cap screw, 5/16" NF x 3/4", stainless steel | 4 |
| 15 | 30028 | Washer, 5/16" sealing, stainless steel | 4 |
Engine
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 42072 | Gas engine, 7.9 Net HP Honda, pull start, GX240UT2QA2 | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-GESG-860/1660 | Repair Kit Assembly |
This model has the silicon graphite shaft seal — use the silicon graphite seal and kit shown.
Parts per Ace Pump Corporation product sheet GE-860 High Performance Gas Engine Driven Centrifugal Pump (09-15). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.
Specs & Downloads

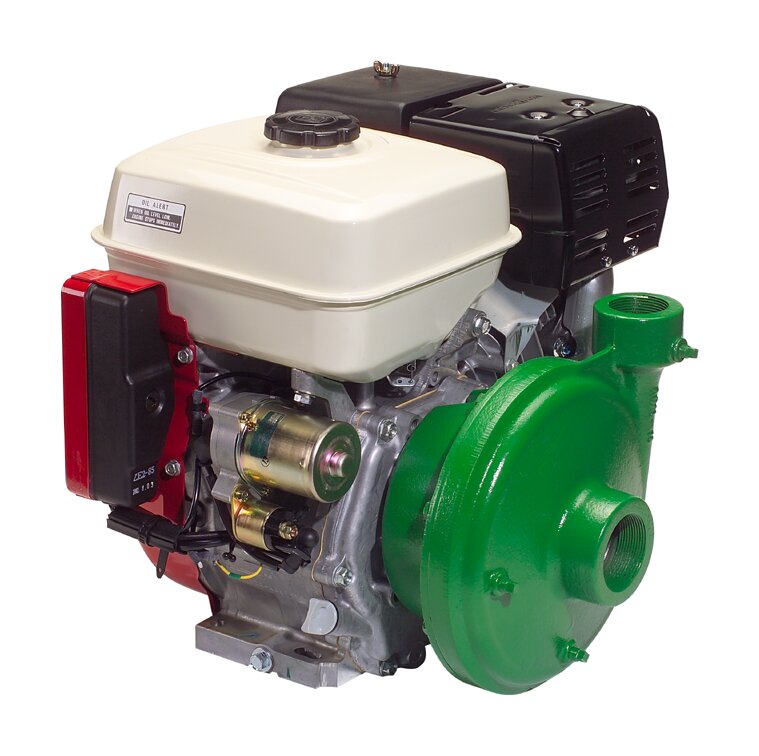

The photo shows the GE-860-HONDA. The GESG-860-HONDA is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.
The image gallery includes a dimension drawing for mounting. Click any image to zoom.
