Ace Pumps

PTOCSC-150-600-6SP — Pump, 1.5" x 1.25", PTO Driven, 600RPM

PTOCSC-150-600-6SP — Pump, 1.5" x 1.25", PTO Driven, 600RPM

$1,812.00 USD
$2,416.00 USD $1,812.00 USD
Below list
Shipping calculated at checkout.

Special order — allow about 2 weeks for shipping. Need it faster? Call (509) 838-2209 and we’ll check availability.
Special-order items may be non-returnable.

Questions on fitment? Need a different size or quantity?

Talk to Shayne, Brett or Jordan: real people who work on sprayers. Meet the crew
(509) 838-2209 Mon–Fri 9 AM–5 PM Pacific · Spokane, WA
Request a quote or ask about this part by email

Backorder request — tell us how many you need. We’ll confirm price and lead time before ordering; nothing is charged until you approve.

Part: APPTOCSC-150-600-6SP — we'll include the part number and link with your message.

🧑‍🔧
Ask Dusty Parts Expert
Get an instant answer on “PTOCSC-150-600-6SP — Pump, 1.5" x 1.25", PTO Driven, 600RPM” — fitment, alternatives, or what else you need

PTOCSC-150-600-6SP PTO-driven centrifugal pump, 1.5" x 1.25" ports, 6-spline shaft for 540 RPM PTO input. Flow rate up to 100 GPM at 110 PSI. Spring-loaded idler maintains belt tension; sealed ball bearings and replaceable mechanical seal. For agricultural spraying and liquid transfer applications.

Service Parts

Ref. Part No. Description Qty
18 BAC-27 Name plate 1
32 BAC-53 Pipe plug, 1/8" NPT 3
32 41120 Pipe plug, 1/8" NPT, stainless steel 3
33 BAC-12-150 Volute, 1-1/2" x 1-1/4", cast iron 1
34 BAC-23-A Nut, lock, 3/8" NF hex, cad plated 1
34 BAC-23-B-SS Nut, 3/8" NF, stainless steel 1
35 BAC-24-HYD-SS Washer, 3/8", stainless steel 1
35 BAC-24-B-SS Washer, 3/8", stainless steel, vibration proof 1
36 BAC-26-150-P Impeller, thermoplastic, with keyway 1
36 BAC-26-150-CI Impeller, cast iron, with keyway 1
36 BAC-26-150-PI Impeller, polypropylene, with keyway 1
37 BAC-4-150 O-ring volute seal 1
38 BAC-7SC Seal, silicon carbide mechanical seal (includes 40160) 1
39 BAC-42 Cap screw, hex head, 3/8" NC x 2" 2
40 BAC-43 Washer, flat, 3/8" 2
41 BAC-14-150-MIA Mounting frame, machined for idler arm 1
42 BAC-15-PIN Alignment pin 2
43 40930 Cap screw, hex head, 3/8" NC x 3/4", stainless steel 4
43 40950 Cap screw, hex head, 3/8" NC x 3/4" 4
44 BAC-54 Slinger 1
45 BAC-33 Snap ring, internal, for mounting frame 2
46 BAC-37 Bearing, sealed, for pump shaft 2
47 BAC-32 Snap ring, external, for driven pump shaft 2
48 BAC-32-S Spacer for pump shaft 1
49 BACH-25 Key, for impeller, 1/8" x 1/8" x 1/2" 1
50 BAC-6-150/200-SS Shaft, 5/8", with keyway, stainless steel 1
51 BAC-50 Key, 3/16" x 3/16" x 1-1/4" 1

PTO Drive

Ref. Part No. Description Qty
1 BAC-10-S Shaft, 1" Tumblerod stub 1
2 BAC-10-175-20SP Shaft, 1-3/4" 20 Tooth PTO spline, includes BAC-11-175 1
3 BAC-10-21SP Shaft, 1-3/8" 21 Tooth PTO spline, includes BAC-11 1
4 40960 Nut, jam, 3/8" NC 3
5 BAC-40 Set screw, slotted, 3/8" NC 3
6 BAC-11-175 Locking collar, split ring (for BAC-10-175-20SP shaft) 1
7 BAC-11 Locking collar, split ring (for BAC-10-21SP shaft) 1
8 BAC-11-1 Set screw (for BAC-11 and BAC-11-175 locking collar) 1
9 BAC-10-6SP-QC Shaft, 1-3/8" 6 Tooth PTO spline, for quick coupler 1
10 BAC-83-QC Ball for quick coupler 3
11 BAC-82-QC Spring for quick coupler 1
12 BAC-81-QC Sleeve, ball retainer, for quick coupler 1
13 41250 Cap screw, hex head, 5/16" NC x 3-1/4" 1
14 41300 Set screw, allen head, 3/8" NC x 5/8" 2
16 BAC-63 Nut, self locking, 5/16" NC, for tumblerod drive 1
17 BAC-34 Snap ring, internal, BAC-15 bearing housing 2
19 BAC-35 Snap ring, external, BAC-10 drive shaft 1
20 BAC-31-1 Bearing, sealed, BAC-10 drive shaft 2
21 BAC-38-1 Spacer, BAC-10 shaft 1
22 BAC-44 Washer, locking, 3/8" 2
23 BAC-45 Nut, hex, 3/8" NC 2
24 BAC-15 Housing, PTO drive shaft bearing 1
24 BAC-15-B Housing, tumblerod drive shaft bearing housing with mounting base 1
25 BAC-10-6SP Shaft, 1-3/8" 6 Tooth PTO spline 1
26 BAC-51 Key, 3/8" x 1/2" x 1-1/2", PTO drive shaft 1
27 40960 Nut, jam, 3/8" NC 3
28 BAC-40 Set screw, slotted, 3/8" NC 3
29 BAC-30-10-150 Pulley, 11.6" P.D. x 2" Bore, Poly-V, 10 groove 1
30 41300 Set screw, allen head, 3/8" NC x 5/8" 2
31 BAC-28-10-150 Belt, Poly-V, 10 groove 1
52 BAC-29-10-1.35 Pulley, 1.35" P.D. x 5/8" Bore, Poly-V, 10 groove 1
53 BAC-57 Set screw, allen head, 5/16" NC x 5/16", for BAC-29-10 pulley 2
54 BAC-5-150 Spring, idler mounted torsion, for 150 series 1
55 BAC-13 Idler arm 1
56 BAC-36 Snap ring, external, BAC-13 idler arm 1
57 BAC-46 Spacer, 5/8" 1
58 41070 Retainer ring 1
59 BAC-55 Idler bearing and outer roller assembly 1
60 BAC-47 Cap screw, hex head, 5/8" NC x 2-1/8", idler 1
BAC-52 Chain, 1/4" cold shut, torque chain anchor 1
BAC-58 Zerk fitting, 1/4" NPT, for idler arm 1
BAC-55-A Idler arm assembly (includes 55 through 60 and BAC-58)
BGKB Belt and shaft guard kit for all PTOC pumps

Repair Kits

Kit No. Description
RK-PTOCSC-150-600 Repair kit assembly, severe duty (silicon carbide) seal
RK-PTOC-150-600 Repair Kit Assembly

Ace’s sheet covers every PTO drive version; shafts, pulleys and belts marked for a specific model apply only to that model.

This model has the silicon carbide shaft seal — use the silicon carbide seal and repair kit shown.

Parts per Ace Pump Corporation product sheet High Performance PTO Belt Driven Centrifugal Pump PTOC-150 SERIES, Suction 1-1/2" - Discharge 1-1/4" (03-13). Not sure which part you need? Send a photo of the pump tag to sales@spraycenter.com or call (509) 838-2209.

Specs & Downloads

The photo shows the PTOC-150-600. The PTOCSC-150-600-6SP is the same pump with different build options in its model number (such as seal, impeller, ports or motor), so its appearance may differ slightly.

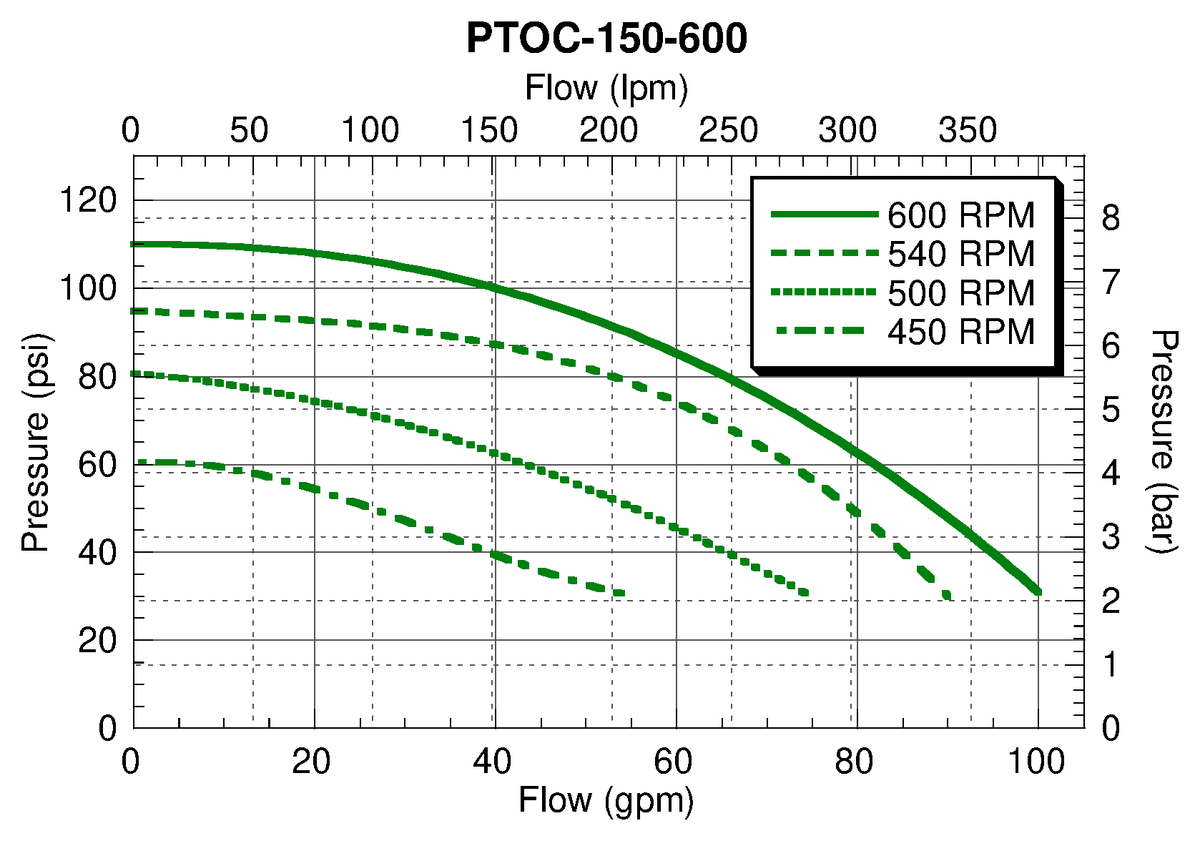

The image gallery includes a performance curve (pressure vs. flow). Click any image to zoom.
