Ace Pumps
RP-600C
RP-600C
Regular price
$195.00 USD
Regular price
$325.00 USD
Sale price
$195.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

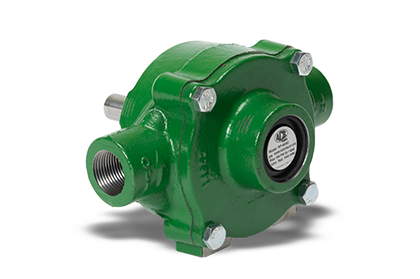

The RP-600C is a Ace 6-roller pump — cast iron body and rotor, rated at 21.8 GPM and 300 psi.
Specifications
| Max flow | 21.8 GPM |
|---|---|
| Max pressure | 300 psi |
| Max speed | 1200 RPM |
| Ports | 3/4" NPT |
| Rollers | Thermoplastic with metal core, 6 |
| Body | Cast iron |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 14863 | Dust cap, cover | 1 |
| 2 | 14859 | Bearing, sealed | 2 |
| 3 | 14858 | Seal, FKM | 2 |
| 4 | GE-60 | Cap screw, 5/16" NF x 3/4" | 4 |
| 5 | 14852 | End plate, cast iron | 1 |
| 6 | 14861 | O-ring, body seal | 1 |
| 8 | 14864 | Dust cap, body | 1 |
| 10 | 14804 | Roller | 6 |
| 11 | BAC-57 | Set screw | 1 |
Repair Kits
| Kit No. | Description |
|---|---|
| RK-RP-600 | Repair kit, universal |
Parts and specifications per Ace Pump Corporation product sheet RP-600 1-22.
