AR185BP-C/C — 31715 Diameter. Pump: low pressure
AR185BP-C/C — 31715 Diameter. Pump: low pressure
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

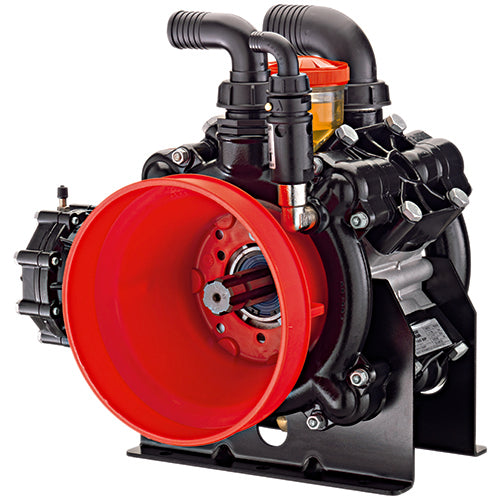

The Annovi Reverberi AR185BP-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline, 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 48.1 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a plastic-coated aluminum pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR185BP-C/C agriculture pump.
Specifications
| Flow (GPM) | 48.1 |
|---|---|
| Flow (l/min) | 182.1 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Power (HP) | 9.3 |
| Inlet | 2 in |
| Outlet | 1 in |
| Shaft Type | 6 Spline |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 4 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 67 lbs |
| Pump Type | Diaphragm Pumps |
| O-Ring | buna |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43259 | BlueFlex | Diaphragm Kits |
| AR43257 | Desmopan | Diaphragm Kits |
| AR43256 | NBR | Diaphragm Kits |
| AR43258 | Viton | Diaphragm Kits |
| AR2374 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR42510 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
