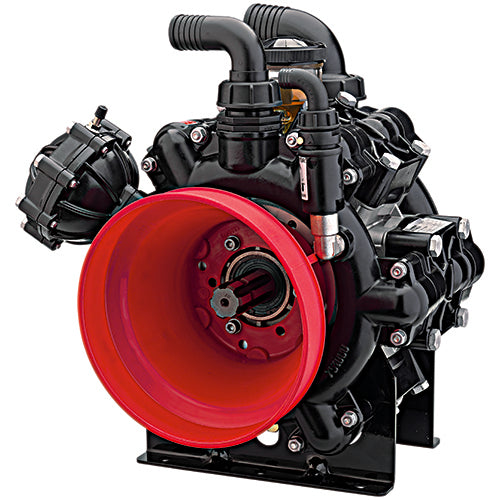

Annovi Reverberi AR215BP-C/C Diaphragm Pump, 57.9 GPM / 290 PSI
Annovi Reverberi AR215BP-C/C Diaphragm Pump, 57.9 GPM / 290 PSI
Out of stock right now? We can backorder it — call us or send a backorder request below.
Request a backorder or ask about this part by email
The Annovi Reverberi AR215BP-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline, 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 57.9 GPM and a maximum pressure of 290 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a plastic-coated aluminum pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi AR215BP-C/C agriculture pump.
Repair Kits for This Pump
| If the pump... | What to order |
|---|---|
| Milky oil or spray mix in the crankcase, oil in the tank, or sudden loss of pressure (diaphragm failure) | Diaphragm kit — BlueFlex (standard on this pump): AR43263 · Buna (NBR): AR43260 · Desmopan: AR43261. Then flush and refill the crankcase with AR64532D oil (98 oz). |
| Pressure drops or surges, slow to prime, noisy with good diaphragms (worn valves) | Valve kit AR2114 |
| Weeping between the heads, body or manifold, or resealing during a rebuild | O-ring kit AR42513 |
| Pressure gauge pulses hard | Check the air-chamber pre-charge. The air-chamber diaphragm is included in the BlueFlex and Buna diaphragm kits above. |
Not sure which kit you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Specifications
| Flow (GPM) | 57.9 |
|---|---|
| Flow (l/min) | 219.1 |
| Pressure (PSI) | 290 |
| Pressure (bar) | 20, 290 |
| Speed (RPM) | 550 |
| Power (HP) | 9.9 |
| Shaft Type | 6 Spline |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 6 |
| Diaphragm Material | Blue-Flex |
| Head Material | Plastic-Coated Aluminum |
| Max water temp | 140° F |
| Weight | 91 lbs |
| Series | Pastic-Coated Aluminum, PCA, Pastic-Coated Aluminum |
| Pump Type | Diaphram Pumps |
| Length (in) | 16.1 |
| Width (in) | 17.83 |
| Height (in) | 18.5 |
| Outlet (in) | 1-1/4" |
| Inlet (in) | 2 |
| O-Ring | buna |
| Shaft Size | 1-3/8" |
| Version | C/C |
| # of Diaphrams | Six |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43263 | BlueFlex | Diaphragm Kits |
| AR43261 | Desmopan | Diaphragm Kits |
| AR43260 | NBR | Diaphragm Kits |
| AR2114 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR42513 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
