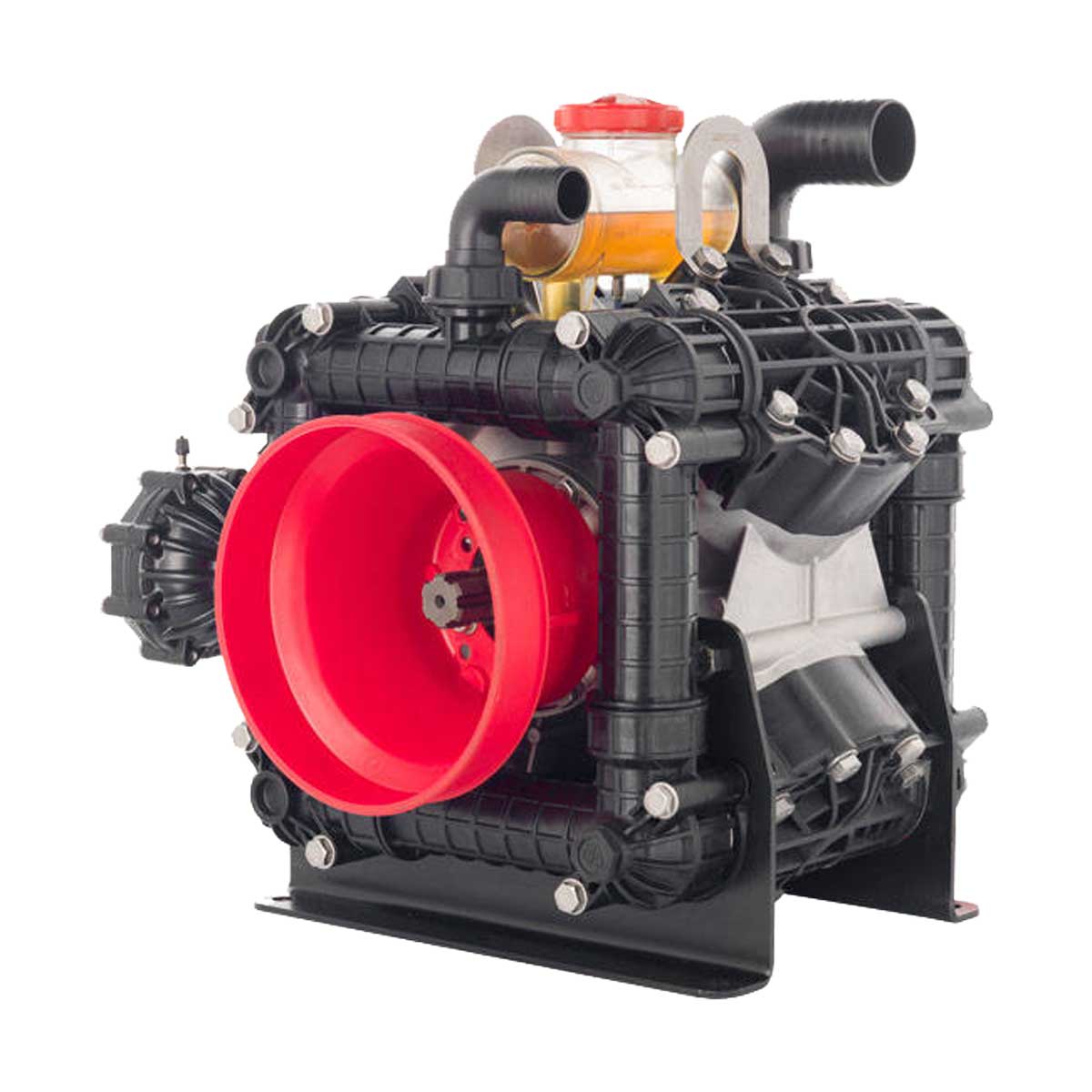

The Annovi Reverberi AR380LFP-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its 6 Spline, 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 97.1 GPM and a maximum pressure of 220 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like a polypropylene pump head for maximum durability, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 97.1 |
|---|---|
| Flow (l/min) | 367.7 |
| Pressure (PSI) | 220 |
| Pressure (bar) | 15 |
| Speed (RPM) | 550 |
| Power (HP) | 13.8 |
| Inlet | 60mm |
| Outlet | 1-1/4" |
| Shaft Type | 6 spline, through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 4 |
| Diaphragm Material | Blue-Flex |
| Head Material | Polypropylene |
| Max water temp | 140° F |
| Weight | 128 lbs |
| Series | LFP (Liquid Fertilizer Pesticide) |
| Pump Type | Diaphragm Pumps |
| O-Ring | Viton |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43274 | BlueFlex | Diaphragm Kits |
| AR43273 | Desmopan | Diaphragm Kits |
| AR43272 | NBR | Diaphragm Kits |
| AR43182 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR43183 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
