AR
BHA170-C/C
BHA170-C/C
Regular price
$3,629.36 USD
Regular price
$4,839.15 USD
Sale price
$3,629.36 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

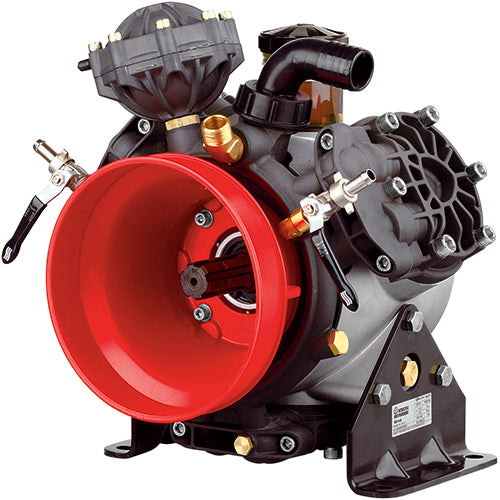

The Annovi Reverberi BHA170-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. It features a splined shaft (1-3/8"), delivers up to 42.4 GPM at 725 PSI maximum pressure, and utilizes anodized aluminum construction for durability in harsh conditions.
Specifications
| Flow (GPM) | 42.4 |
|---|---|
| Flow (l/min) | 160.4 |
| Pressure (PSI) | 725 |
| Pressure (bar) | 50 |
| Speed (RPM) | 550 |
| Inlet | 1-1/2" |
| Outlet | 3/4" GAS |
| Shaft Type | Splined, Through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 4 |
| Diaphragm Material | Blue-Flex |
| Head Material | Anodized Aluminum |
| Weight | 115 lbs |
| Pump Type | Diaphragm |
| Max Temperature | 140°F |
| Horsepower | 19.3 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43323 | BlueFlex | Diaphragm Kits |
| AR43322 | Desmopan | Diaphragm Kits |
| AR43321 | NBR | Diaphragm Kits |
| AR2374 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2457 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
