AR
BHS105-C/C
BHS105-C/C
Couldn't load pickup availability

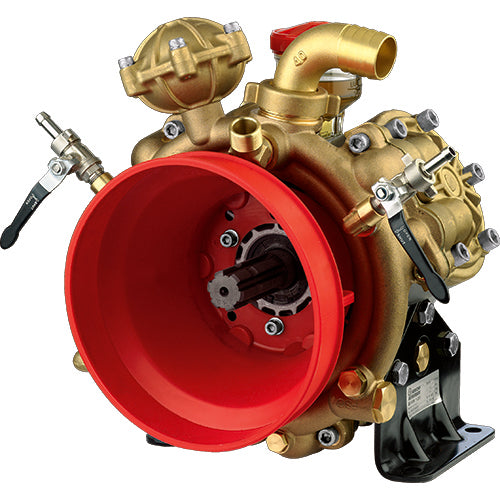

The Annovi Reverberi BHS105-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Splined, Through 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 26.9 GPM and a maximum pressure of 725 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like brass for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime. Experience the reliability and efficiency of the Annovi Reverberi BHS105-C/C agriculture pump.
Specifications
| Flow (GPM) | 26.9 |
|---|---|
| Flow (l/min) | 101.9 |
| Pressure (PSI) | 725 |
| Pressure (bar) | 50 |
| Speed (RPM) | 550 |
| Shaft Type | spline |
| Diaphragm Count | 4 |
| Head Material | brass |
| Max water temp | 140° F |
| Weight | 100 lbs |
| Max Hp | 12 |
| Outlet (in) | 3/4" GAS |
| Inlet (in) | 1 1/2" |
| Shaft Version | through |
| Version | C/C |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43317 | BlueFlex | Diaphragm Kits |
| AR43315 | Desmopan | Diaphragm Kits |
| AR43314 | NBR | Diaphragm Kits |
| AR43316 | Viton | Diaphragm Kits |
| AR2445 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR42205 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
