AR
BHS150-C/C
BHS150-C/C
Couldn't load pickup availability

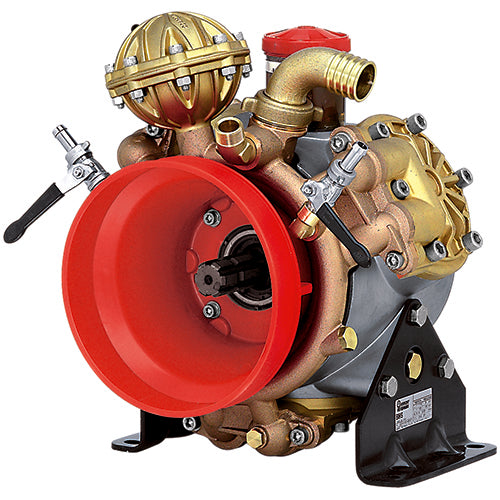

The Annovi Reverberi BHS150-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Splined, Through 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 37.7 GPM and a maximum pressure of 725 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like brass for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 37.7 |
|---|---|
| Flow (l/min) | 142.6 |
| Pressure (PSI) | 725 |
| Pressure (bar) | 50 |
| Speed (RPM) | 550 |
| Inlet | 1-1/2" |
| Outlet | 3/4" GAS |
| Shaft Type | Splined, Through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 3 |
| Diaphragm Material | Blue-Flex |
| Head Material | Brass |
| Max water temp | 140° F |
| Weight | 124 lbs |
| Series | Brass |
| Pump Type | Diaphragm Pumps |
| HP | 16.3 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43320 | BlueFlex | Diaphragm Kits |
| AR43319 | Desmopan | Diaphragm Kits |
| AR43318 | NBR | Diaphragm Kits |
| AR2445 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2446 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
