BHS200-C/C — 31774 Diameter. Pump: high pressure
BHS200-C/C — 31774 Diameter. Pump: high pressure
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

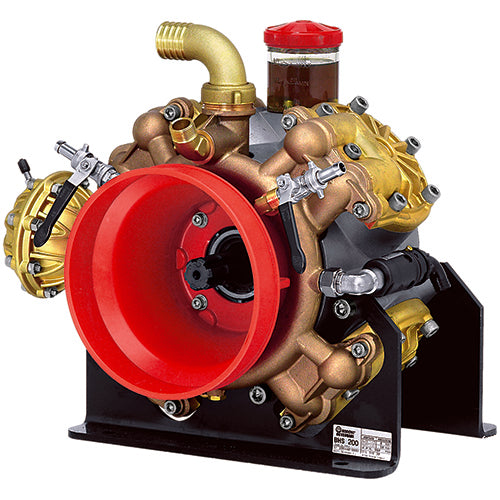

The Annovi Reverberi BHS200-C/C Agriculture Pump is a high-performance solution designed to meet the demanding needs of the agricultural industry. With its Splined, Through 1-3/8" shaft, this pump connects directly to your power source seamlessly. Delivering an impressive flow rate of up to 51.2 GPM and a maximum pressure of 725 PSI, it ensures efficient water distribution for agricultural plots, livestock tanks, and irrigation systems. Built with dependable materials like brass for the pump head, this feature provides longevity and protection against harsh environmental conditions, reducing maintenance and downtime.
Specifications
| Flow (GPM) | 51.2 |
|---|---|
| Flow (l/min) | 193.7 |
| Pressure (PSI) | 725 |
| Pressure (bar) | 50 |
| Speed (RPM) | 550 |
| Inlet | 1-1/2" |
| Outlet | 3/4" GAS |
| Shaft Type | Splined, Through |
| Shaft Diameter | 1-3/8" |
| Diaphragm Count | 4 |
| Diaphragm Material | Blue-Flex |
| Head Material | Brass |
| Max water temp | 140° F |
| Weight | 153 lbs |
| Series | Brass |
| Pump Type | Diaphragm Pumps |
| HP | 22.1 |
| Market | Agriculture |
Service Parts & Kits
| Part No. | Description | Type |
|---|---|---|
| AR43323 | BlueFlex | Diaphragm Kits |
| AR43322 | Desmopan | Diaphragm Kits |
| AR43321 | NBR | Diaphragm Kits |
| AR2374 | Valves | Valve Kits |
| AR64532D | Oil | Oil |
| AR64532D-C | Case (6) Oil | Oil |
| AR2457 | O-Rings | O-Ring Kits |
Specifications from A.R. North America. Service parts per the 2024 A.R. Agriculture Product Catalog.
