Banjo

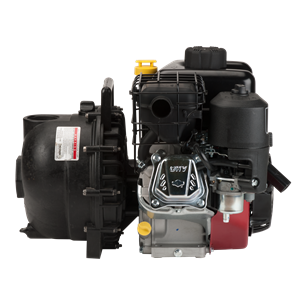

200P6PROV (B) — 2" Poly Pump With 6.5HP B&S
200P6PROV (B) — 2" Poly Pump With 6.5HP B&S
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Banjo self-priming centrifugal pump packaged complete with a gasoline engine, ready for use. Precision-molded (or cast iron) construction, dynamically balanced impeller, and a carbon-ceramic seal for long service life.
Replacement Parts for This Pump
| Part | Part No. |
|---|---|
| Mechanical seal, FKM | 12713V |
| Check valve, FKM | 12705V |
| Body O-ring (#375), FKM | 12719AV |
| Seal assembly O-ring, FKM | 12710V |
| O-ring segment, FKM | 12754V |
| Screw head O-ring (#011), qty 4, FKM | 12717V |
| O-ring (#204), FKM | A204V |
| O-ring seal kit, FKM | 12999AV |
| Impeller, 5-vane (5 HP and up) | 12772 |
| Impeller, 3-vane (smaller engines, more volume) | 12771A |
| Impeller key | 12902A |
| Volute | 12702A |
| Rear bracket | 12703A |
| Slinger | 12716 |
| Pump body, 2" | 12712A |
The 200P6PROV is the FKM (Viton) version, and the parts marked FKM above are the FKM replacements. Stick with FKM so the pump keeps its chemical resistance.
Use the impeller your pump came with: 5-vane for 5 HP and larger engines and hydraulic drives, 3-vane for smaller engines.
Not sure which part you need? Send a photo of the pump label to sales@spraycenter.com or call (509) 838-2209 and we'll match it before you order.
Specs & Downloads
Working on a different pump? Use the Pump Finder to identify it and find repair kits and parts.
