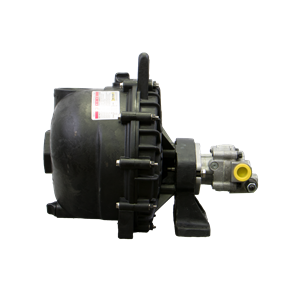

• Banjo 200PHY product photo
1 1

Banjo

200PHY (B)

200PHY (B)

$1,251.37 USD
$2,085.61 USD $1,251.37 USD
Sale
Shipping calculated at checkout.
Title

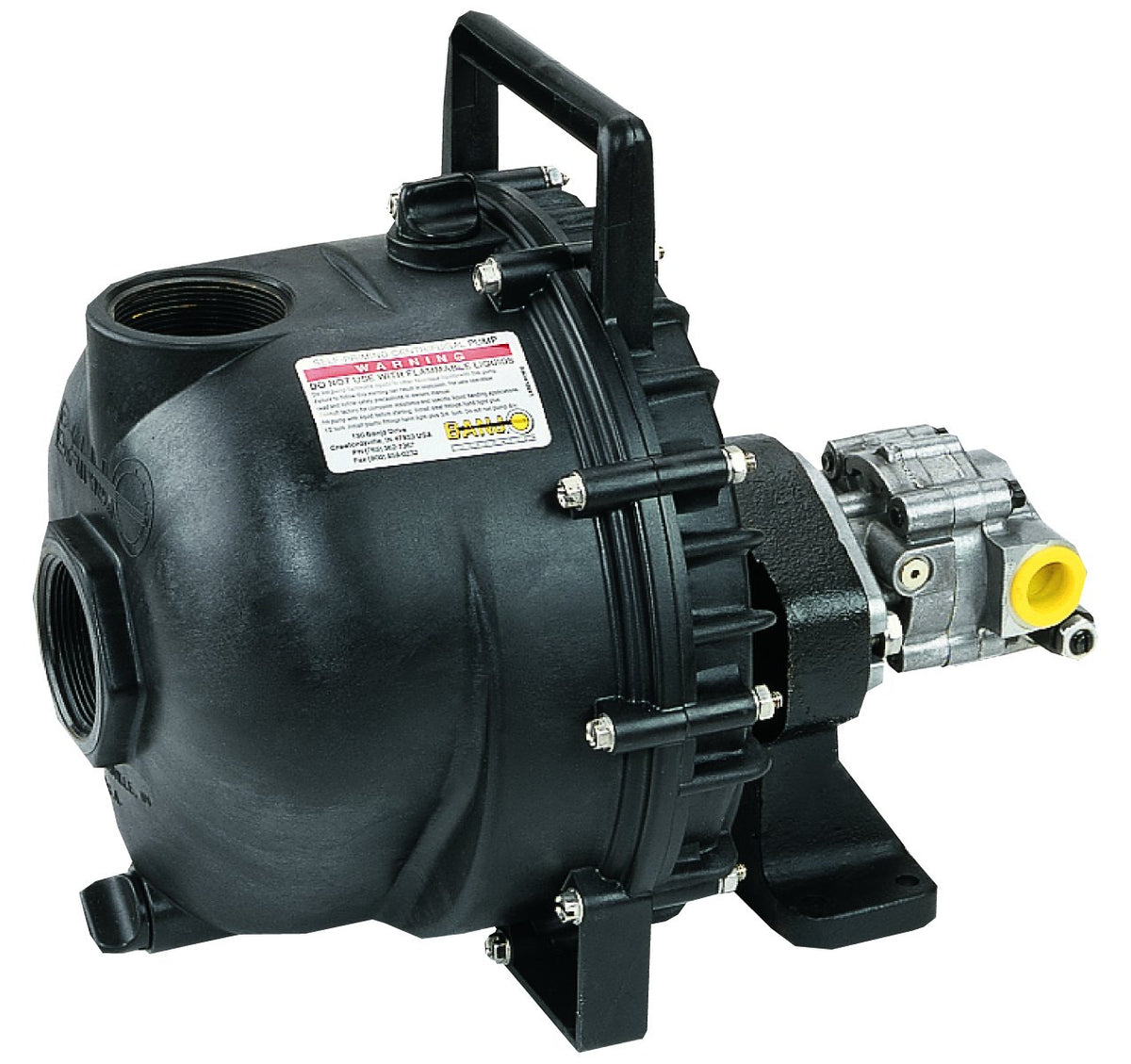

The 200PHY is a Banjo self-priming centrifugal pump — polypropylene, hydraulic drive, rated at 2" poly pump with 12 HP hydraulic motor.

Specifications

Product title 2" Poly Pump With 12 HP Hydraulic Motor
Type Polypropylene Pumps
Style Hydraulic Pump
Size 2"
Drive GRESEN MGG2 hydraulic motor, 12 H.P. at 3600 R.P.M.
Hydraulic supply 10 gallons per minute maximum hydraulic fluid; suits open or closed centre systems
Weight 23.186 lbs
Caution Do not run pump dry, restrict or reduce port sizes, or dead head pump; do not use with flammable liquids

Service Parts

Ref. Part No. Description Qty
1 12049F Hydraulic motor pedestal 1
2 12055E Hydraulic adapter shaft 1
3 12702A 2" poly pump volute 1
4 12703A Poly pump rear bracket 1
5 12705 Pump checkvalve, EPDM 1
6 12712A 2" poly pump body 1
6-1 12777 1/2" drain plug 2
6-2 UV15163 AS568A-114 o-ring, EPDM, black 2
7 12715A 5/16-24 x 1-3/4" HHCS with Torq-Patch 4
8 12717 AS568A-011 o-ring, EPDM 4
9 12719A AS568A-375 o-ring, EPDM, black 1
10 12720 1/4-20 x 2-1/2" SL IND hex washer head screw 10
11 12725 #6 x 1/2" PPH SMS 2
13 12754 O-ring segment 1
14 12765A 5/16-24 x 1-1/8" HFS 1
15 12772 Poly 5-vane impeller 1
16 12775A 7/16-14 hex nut 1
17 12900 #10 x 1-1/2" PPH SMS 1
18 12901 5/16" flat washer 4
19 12902A 3/16" sq. x 5/8" key 1
21 15752 Impeller shim 1
22 17056E 3206 bearing 1
23 18010SS 3/8-16 x 1-1/8" HHCS 2
24 A204 AS568A-204 o-ring, EPDM, black 1
26 HY10131 MGG20025BC1D3 Gresen hydraulic motor 1
27 HY10132 Hydraulic check valve 1
29 V07018 1/4" lockwasher 10
30 V07019 1/4"-20 stainless hex nut 10
31 V20018 3/8" lockwasher 2

Parts and specifications per the Banjo Corporation parts drawing for the 200PHY.
