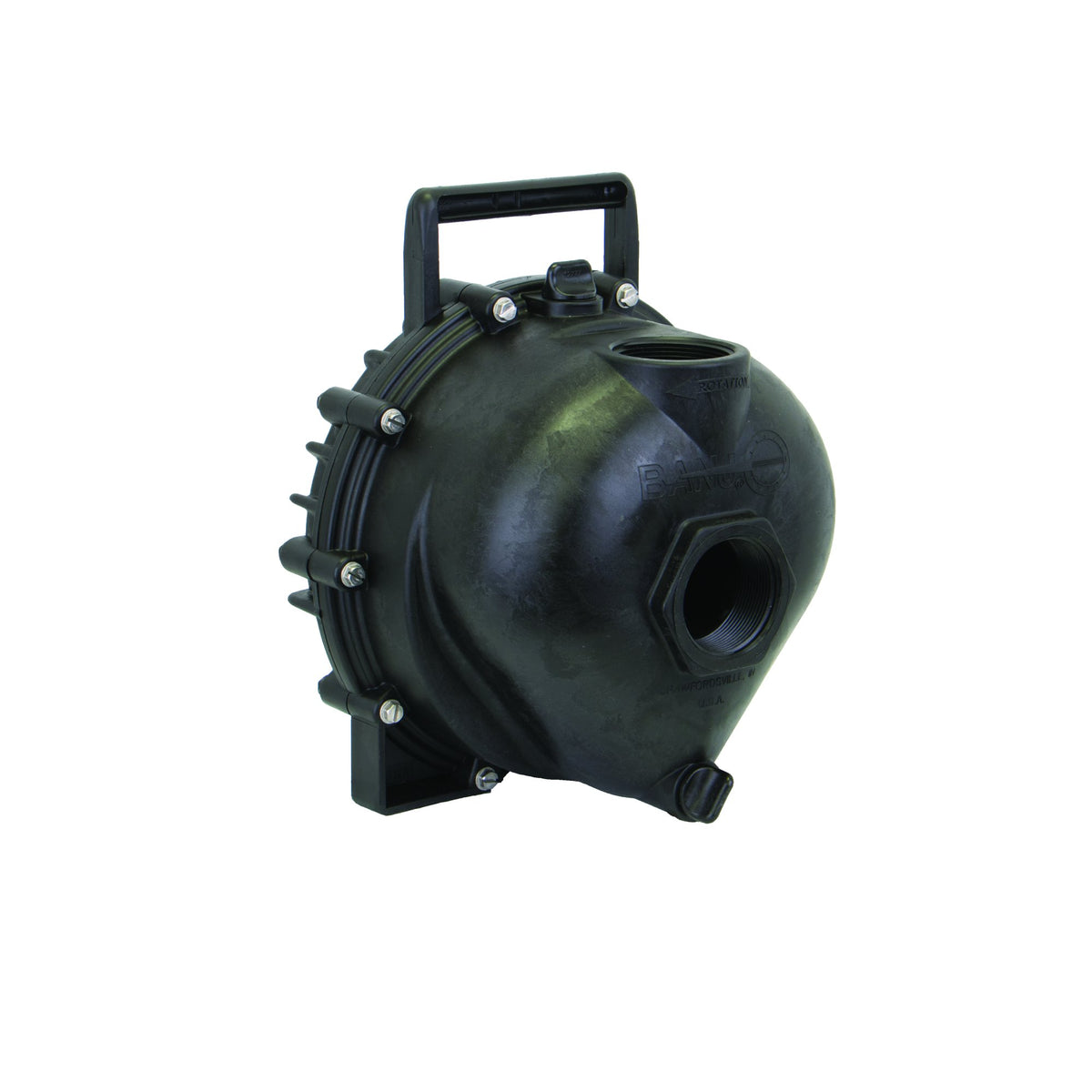

Banjo 200PO 2" Poly Centrifugal Pump End, Pump Only, with 3-Vane & 5-Vane Impellers
Banjo 200PO 2" Poly Centrifugal Pump End, Pump Only, with 3-Vane & 5-Vane Impellers
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email
Banjo 200PO is the 2" polypropylene self-priming centrifugal pump end, sold without a drive. It's the replacement pump for Banjo 2" gas-engine, hydraulic and electric transfer pumps — bolt it to your existing engine or motor and you're back to pumping without buying a whole new unit. Ships with both the 3-vane (12771A) and 5-vane (12772) impellers so you can match the horsepower you have: 3-vane for more volume at lower pressure, 5-vane for higher pressure.
In stock at our Spokane, WA shop and ships same or next business day. Call us with your engine or motor model if you want to confirm fit before ordering — we can also set you up with the seal and o-rings to keep on the shelf.
What it's for
Water, liquid fertilizer and most crop-protection chemicals. Glass-filled polypropylene body and volute, EPDM check valve and o-rings, mechanical shaft seal. Not for petroleum products or solvents.
Specifications
| Part number | 200PO |
|---|---|
| Type | Polypropylene self-priming centrifugal pump |
| Style | Pump only — no engine or motor |
| Port size | 2" NPT |
| Impellers included | 3 vane (12771A) and 5 vane (12772) |
| Volute / body | Polypropylene |
| Seal | Mechanical seal (12713) |
| Elastomers | EPDM (check valve and o-rings) |
| Weight | 10.9 lbs |
Related parts
12713 mechanical seal, EPDM · 12772 5-vane impeller · 12771A 3-vane impeller · 12705 check valve · 12719A volute o-ring · M220PO 2" manifold-mount pump end · 300PO 3" pump end
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12702A | 2" poly pump volute | 1 |
| 2 | 12703A | Poly pump rear bracket | 1 |
| 3 | 12705 | Pump checkvalve, EPDM | 1 |
| 4 | 12712A | 2" poly pump body | 1 |
| 4-1 | 12777 | 1/2" drain plug | 2 |
| 4-2 | UV15163 | AS568A-114 o-ring, EPDM, black | 2 |
| 5 | 12713 | Mechanical seal assembly, EPDM, individually boxed | 1 |
| 6 | 12716 | Pump slinger | 1 |
| 7 | 12771A | Poly 3-vane impeller | 1 |
| 8 | 12772 | Poly 5-vane impeller | 1 |
| 10-1 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 10-2 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 10-3 | 12754 | O-ring segment | 1 |
| 10-4 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
| 11-1 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 11-2 | 12720 | 1/4-20 x 2-1/2" slotted indented hex washer head screw | 10 |
| 11-3 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 11-4 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 11-5 | 12775A | 7/16-14 hex nut | 1 |
| 11-6 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 11-7 | 12901 | 5/16" flat washer | 4 |
| 11-8 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 11-9 | V07018 | 1/4" lockwasher | 10 |
| 11-10 | V07019 | 1/4"-20 stainless hex nut | 10 |
Parts and specifications per the Banjo Corporation parts drawing for the 200PO.
Details
| Part number | 200PO |
|---|---|
| Manufacturer | Banjo |
| SKU | BJ200PO |
| Catalogue description | 2" poly pump only w/3VN & 5VN |
