Banjo
200PO (B)
200PO (B)
Regular price
$326.07 USD
Regular price
$543.45 USD
Sale price
$326.07 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

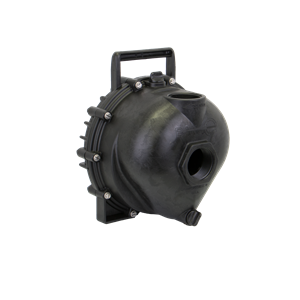

The 200PO is a Banjo self-priming centrifugal pump — polypropylene, 3 vane impeller, rated at 2" poly pump only, supplied as a kit with 3 vane and 5 vane impellers.
Specifications
| Drawing title | 2" POLY PUMP ONLY W/ 3 VANE IMPELLER |
|---|---|
| Type | Polypropylene Pumps |
| Style | Pump Only |
| Size | 2" |
| Impellers included | 3 Vane & 5 Vane |
| Volute | Polypropylene |
| Pump body | Polypropylene |
| Seal | Mechanical seal |
| Elastomers | EPDM (check valve and o-rings) |
| Drive | Pump only - no engine or motor |
| Weight | 10.882 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12702A | 2" poly pump volute | 1 |
| 2 | 12703A | Poly pump rear bracket | 1 |
| 3 | 12705 | Pump checkvalve, EPDM | 1 |
| 4 | 12712A | 2" poly pump body | 1 |
| 4-1 | 12777 | 1/2" drain plug | 2 |
| 4-2 | UV15163 | AS568A-114 o-ring, EPDM, black | 2 |
| 5 | 12713 | Mechanical seal assembly, EPDM, individually boxed | 1 |
| 6 | 12716 | Pump slinger | 1 |
| 7 | 12771A | Poly 3-vane impeller | 1 |
| 8 | 12772 | Poly 5-vane impeller | 1 |
| 10-1 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 10-2 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 10-3 | 12754 | O-ring segment | 1 |
| 10-4 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
| 11-1 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 11-2 | 12720 | 1/4-20 x 2-1/2" slotted indented hex washer head screw | 10 |
| 11-3 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 11-4 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 11-5 | 12775A | 7/16-14 hex nut | 1 |
| 11-6 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 11-7 | 12901 | 5/16" flat washer | 4 |
| 11-8 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 11-9 | V07018 | 1/4" lockwasher | 10 |
| 11-10 | V07019 | 1/4"-20 stainless hex nut | 10 |
Parts and specifications per the Banjo Corporation parts drawing for the 200PO.
