Banjo
200POI (B)
200POI (B)
Regular price
$713.61 USD
Regular price
$1,189.35 USD
Sale price
$713.61 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

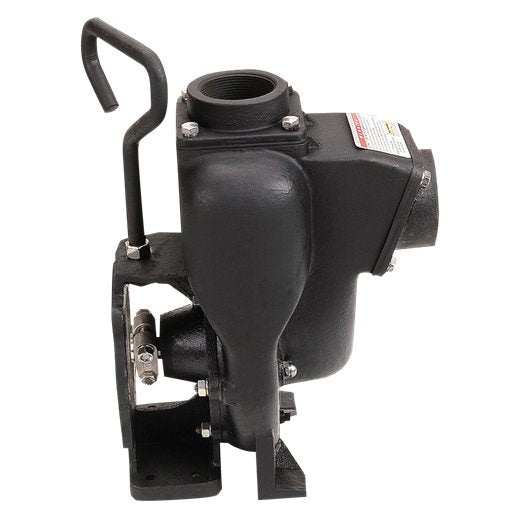

The 200POI is a Banjo self-priming centrifugal pump — cast iron, pump only, rated at 2" cast iron pump only with 3/4" shaft sleeve.
Specifications
| Drawing title | 2" CI PUMP ONLY |
|---|---|
| Type | Cast Iron |
| Style | Pump Only |
| Size | 2" |
| Shaft | 3/4" shaft sleeve with adapter shaft |
| Impeller | Pump impeller |
| Seal | Mechanical seal |
| Housing | 2" pump housing, cast iron |
| Drive | Pump only - gas engine adapter fitted; pedestal style for long coupling to an electric motor |
| Weight | 52.5 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12777 | 1/2" drain plug | 1 |
| 3 | 15022 | 2" pump handle | 1 |
| 4 | 17004 | Gas engine adapter | 1 |
| 5 | 17006 | Adapter shaft | 1 |
| 6 | 17008 | Pump impeller | 1 |
| 7 | 17009B | 5/8-18 impeller nut | 1 |
| 8 | 17010 | 1/2-13 hex nut | 1 |
| 9 | 17018 | Pump adapter gasket | 1 |
| 10 | 17033 | Z-rail (pair) | 1 |
| 13-1 | 17123 | CI pump keyed clamp | 1 |
| 13-2 | V10118 | 5/16" lockwasher | 8 |
| 13-3 | 17040 | 5/16-24 x 1" HHCS | 4 |
| 13-5 | V10119 | 5/16" hex nut | 4 |
| 14 | UV15163 | 2-114 o-ring | 1 |
| 15 | V10118 | 5/16" lockwasher | 6 |
| 16 | V10119 | 5/16" hex nut | 6 |
Parts and specifications per the Banjo Corporation parts drawing for the 200POI.
