Banjo
222POI (B)
222POI (B)
Regular price
$576.28 USD
Regular price
$1,108.24 USD
Sale price
$576.28 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

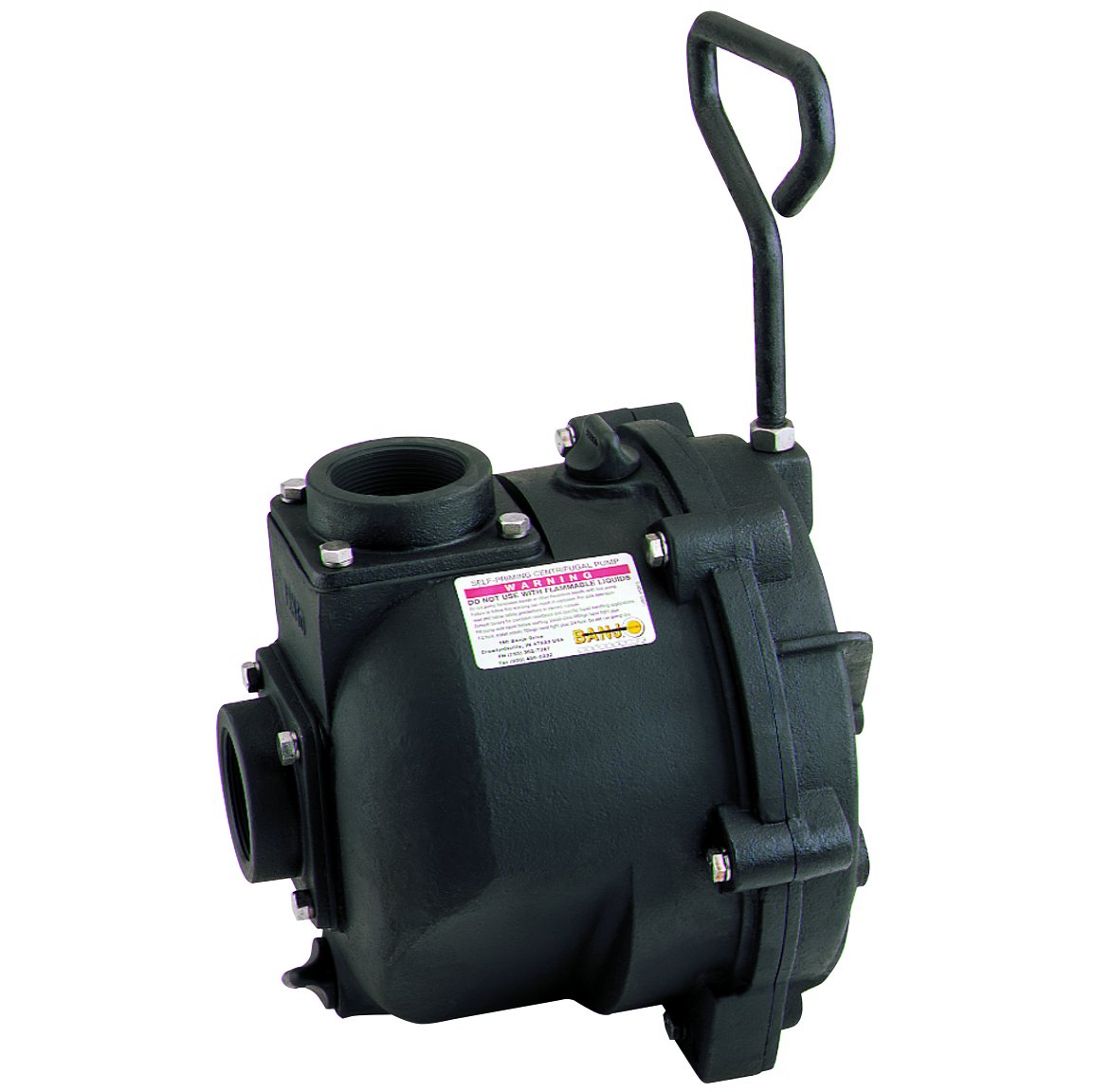

The 222POI is a Banjo self-priming centrifugal pump — cast iron, 5 vane full impeller, rated at 2" cast iron pump only with full impeller and FKM mechanical seal.
Specifications
| Drawing title | 2" CI PUMP ONLY |
|---|---|
| Type | Cast Iron |
| Style | Pump Only |
| Size | 2" |
| Volute | Cast iron, 2" CI pump volute |
| Pump body | Cast iron, 2" CI pump body |
| Impeller | 5-vane impeller (full impeller) |
| Seal | Mechanical seal, FKM — carbon/ceramic with stainless cup and spring |
| Drain | 3/4" drain plug |
| Drive | Pump only - assembled and ready to attach to a gasoline engine; suits electric motors at 3600 RPM |
| Weight | 59.902 lbs |
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12705 | Pump checkvalve, EPDM | 1 |
| 2 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 13 |
| 3 | 12716 | Pump slinger | 1 |
| 4 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 5 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 7 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 8 | 12901 | 5/16" flat washer | 4 |
| 9 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 10 | 13777 | 3/4" drain plug | 2 |
| 11 | 13778 | AS568A-119 o-ring, EPDM, black | 2 |
| 12 | 15022 | 2" pump handle | 1 |
| 13 | 15702 | 2" CI pump volute | 1 |
| 14 | 15703 | 2" CI rear bracket | 1 |
| 15 | 15712 | 2" CI pump body assembly | 1 |
| 16 | 15751 | Rear bracket shim | 1 |
| 17 | 15752 | Impeller shim | 1 |
| 18 | 15772 | 5-vane impeller | 1 |
| 19 | 17010 | 1/2-13 hex nut | 1 |
| 20 | 17033 | Z-rail | 2 |
| 22 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
| 23 | V10118 | 5/16" lockwasher | 13 |
| 24 | V10119 | 5/16" hex nut | 4 |
Parts and specifications per the Banjo Corporation parts drawing for the 222POI.
