Banjo M220PO 2" Full Port Manifold Poly Centrifugal Pump End, Pump Only
Banjo M220PO 2" Full Port Manifold Poly Centrifugal Pump End, Pump Only
Couldn't load pickup availability
Questions on fitment? Need a different size or quantity?
Request a quote or ask about this part by email

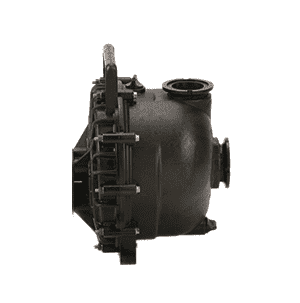

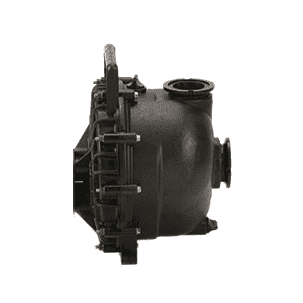

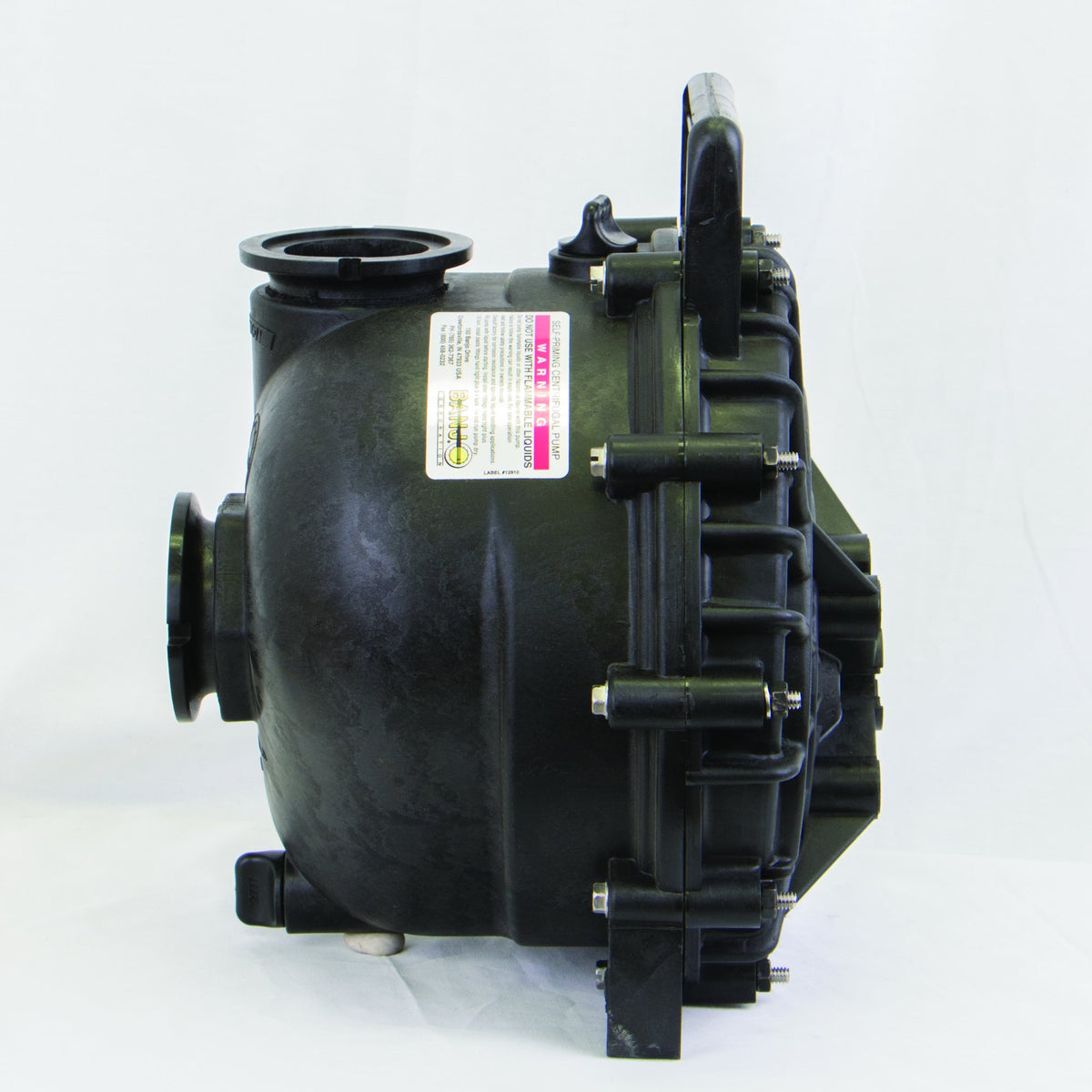

Banjo M220PO is the 2" full-port, manifold-flange polypropylene self-priming centrifugal pump end, sold without a drive. It's the replacement pump for Banjo M220 series manifold pumps used on sprayers, nurse trailers and fertilizer tenders — the 220 series flange connects straight into Banjo's no-thread manifold system with a clamp, so there are no pipe threads to fight. Bolt it to your existing gas engine, hydraulic motor or electric motor and you're back in the field. Replaces the M225PO (5-vane version) as Banjo's current 2" manifold pump end.
In stock at our Spokane, WA shop and ships same or next business day. Call us with your pump or engine model if you want to confirm fit before ordering.
What it's for
Water, liquid fertilizer and most crop-protection chemicals. Glass-filled polypropylene body and volute, EPDM check valve and o-rings, mechanical shaft seal. Not for petroleum products or solvents.
Specifications
| Part number | M220PO |
|---|---|
| Type | Polypropylene self-priming centrifugal pump |
| Style | Pump only — no engine or motor |
| Connection | 2" full port (220 series) manifold flange, inlet and outlet |
| Impeller | 3 vane (12771A); 5 vane 12772 available separately |
| Seal | Mechanical seal (12713) |
| Elastomers | EPDM (check valve and o-rings) |
| Weight | 11.0 lbs |
Related parts
12713 mechanical seal, EPDM · 12772 5-vane impeller · 12771A 3-vane impeller · 12705 check valve · M221G 220 series manifold gasket, EPDM · M220BRBSWP90 2" FP flange x hose barb sweep · MCV221 2" FP flanged check valve · MVS220CF 2" FP stubby manifold valve · 200PO 2" NPT pump end · M300PO 3" manifold pump end
Service Parts
| Ref. | Part No. | Description | Qty |
|---|---|---|---|
| 1 | 12702A | 2" poly pump volute | 1 |
| 2 | 12703A | Poly pump rear bracket | 1 |
| 3 | 12705 | Pump checkvalve, EPDM | 1 |
| 4 | 12716 | Pump slinger | 1 |
| 6 | 12771A | Impeller, 3 vane | 1 |
| 8 | M12712 | 2" manifold pump body assembly | 1 |
| 8-1 | 12777 | 1/2" drain plug | 2 |
| 8-3 | UV15163 | AS568A-114 o-ring, EPDM, brown | 2 |
| 9-1 | 12710 | AS568A-029 o-ring, EPDM | 1 |
| 9-2 | 12715A | 5/16-24 x 1-3/4" HHCS with Torq-Patch | 4 |
| 9-3 | 12717 | AS568A-011 o-ring, EPDM | 4 |
| 9-4 | 12719A | AS568A-375 o-ring, EPDM, black | 1 |
| 9-5 | 12720 | 1/4-20 x 2-1/2" SL IND HWHS | 10 |
| 9-6 | 12725 | #6 x 1/2" PPH SMS | 2 |
| 9-7 | 12754 | O-ring segment | 1 |
| 9-8 | 12765A | 5/16-24 x 1-1/8" HFS | 1 |
| 9-9 | 12775A | 7/16-14 hex nut | 1 |
| 9-10 | 12900 | #10 x 1-1/2" PPH SMS | 1 |
| 9-11 | 12901 | 5/16" flat washer | 4 |
| 9-12 | 12902A | 3/16" sq. x 5/8" key | 1 |
| 9-13 | V07018 | 1/4" lockwasher | 10 |
| 9-14 | V07019 | 1/4-20 hex nut | 10 |
| 9-15 | A204 | AS568A-204 o-ring, EPDM, black | 1 |
Parts and specifications per the Banjo Corporation parts drawing for the M220PO.
Details
| Part number | M220PO |
|---|---|
| Manufacturer | Banjo |
| SKU | BJM220PO |
| Catalogue description | 2" poly FP manifold pump only |
